Chemistry and the Consumer

1

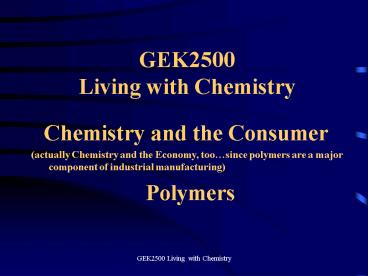

GEK2500Living with Chemistry
Chemistry and the Consumer (actually
Chemistry and the Economy, toosince polymers are
a major component of industrial
manufacturing) Polymers
2
Look around us and identify some common plastic
materials...
Shoes, watch straps, clothes, seats, pens, bags,
handphones, spectacles, etc., etc.
Plastic refers to the end use of polymers
3

• Plastics - desirable properties

Mouldable
Flexible
Water-proof
Light weight
Cheap
Transparent/semi-transparent
Colourful
Unbreakable
Non-sticking
Elastic/stretchable
4
Looking at the composition of matter ..

• All matter is made up with smaller units of a
  component
• Water molecule (H2O)

5
The composition of matter

• Table salt sodium chloride (NaCl) crystals

6
What is the composition of a glass of salt water ?
7
What is the compositionof a polymer?

• Polymer is a Macromolecule
• Large molecule consisting of repeating smaller
  units (called monomer).
• e.g.
• (polymany merosunit)

8
Polymers

• Natural or synthetic
• Synthetic polymers - plastics, textiles and
  rubber
• have totally changed modern life - we live in a
  plastics world (most plastics come from
  hydrocarbons)
• Hermann Staudinger (German, 1881-1965) Father of
  Polymers, awarded Nobel Prize in 1953

9
Natural polymers

• e.g. DNA, natural rubber, diamonds, starch,
  cellulose
• Natural rubber
• rubber latex produced by 500 species of plants
• very sticky, difficult to handle
• no practical use for 400 years until Goodyear
  created vulcanization process in 1839

10
Synthetic polymers

• e.g. polyethylene (PE)
• Repeating unit is ethylene -CH2CH2-
• Shorthand notation
• -CH2CH2n-
• n the number of repeat units

http//chemincontext.eppg.com/chapter9/cic_interfa
ce9.swf
11
Synthetic polymer - PE

• A sample of PE contains many individual polymer
  chains of different lengths
• like a bowl of noodles
• Talk about average molecule weight or average
  number of repeat units
• Typical PE molecule
• molecular weight 106 , n 35700

12
Different average molecular weights (or average
n) for different applications

• e.g. wax polish 2000 atomic mass units
• the repeat unit -CH2CH2- is 28 amu
• n 2000 ? 28 71 units
• e.g. toys 134400 amu
• n 134400 ? 28 4800 units

C12 H1 O16 N14
13
Consider this!

• Leisure/recreational activities and plastics
• Impact of plastics
• Think of the plastics used in the making of a
  personal computer

http//pslc.ws/macrog/maindir.htm
14
Experiment with this !

• Making Casein
• Boil low-fat milk with vinegar
• After curd forms, boil for 10 min
• Separate the solid polymer and wash it repeatedly
  until wash water is clear
• This polymer is elastic
• Real world applications coatings and adhesives
  also used in buttons (but not anymore)

15
Classification of synthetic polymers

• Classification according to
• Physical structure
• Thermal behaviour
• Use
• Method of preparation

16
Physical structure

• the arrangement or morphology of the polymer
  chains
• 3 types linear, branched and crosslinked
• Linear resembles cooked spaghetti

17
Physical structure

• Branched - similar but with branches coming out
  of main chains
• Crosslinked - chains are interconnected into a
  network

18
Physical structure

• affects various properties
• e.g. linear, branched polymers generally soluble
  in solvents and can flow under pressure and
  heat
• crosslinked polymers generally insoluble and do
  not flow.

Why ?
19
Thermal behaviour

• Most important property the behaviour of
  plastics when heated
• characterized by Tg - glass transition
  temperature
• temperature at which polymer becomes soft and
  flexible and not rigid
• 2 types thermoplastic and thermosetting polymer

20
Most matter melts or sublimes when heated, but
polymers can be softened when heated
Why ?
21
Thermoplastic

• branched or linear molecules
• softens each time it is heated above Tg
• thus, can be remoulded repeatedly
• 80 of industrial plastics are thermoplastic
• polyethylene (PE)
• polyvinyl chloride (PVC)
• polyethylene terephthalate (PET)
• nylons

22
Thermosetting polymer

• crosslinked molecules
• crosslinks form when heated and then set (harden)
• do not soften, cannot be remoulded with heat, but
  reshaped using mechanical means
• Thermosetting plastics include
• phenolic resins (phenolformaldehyde)
• urea-formaldehyde
• melamine-formaldehyde

23
Uses

• 3 terms refer to the uses of polymers
• Plastics
• Fibres (textiles)
• Elastomers (rubber)
• (Classifications that non-chemists (generally
  consumers) use)

24
Plastics

• Plastic means capable of being moulded
• either thermosetting or thermoplastic polymers
• moulded during manufacturing process
• commonly amorphous, i.e. no fixed atomic lattice
  structure

25
Crystallinity of polymers

• Amorphous, slightly crystalline or highly
  crystalline

Arranged neatly, tightly
In a mess, loosely arranged
Visualise Uncooked spaghetti totally boiled
spaghetti partially boiled spaghetti
26
Fibres or textiles

• Thermoplastics with individual linear polymer
  chains held together
• more crystalline
• easily drawn into thin filaments
• More synthetic fibres are produced than natural
  fibres (plant- or cellulose-based)
• e.g. Nylon, polyesters

27
Elastomers

• stretches easily and returns readily to its
  original shape
• natural rubber is still the single most produced
  elastomer
• synthetic rubbers, e.g. styrene-butadiene rubber
  (SBR), butadiene rubber (BR)
• the monomers usually contain more than one CC
  double bond

28
Vulcanization

• Crosslinking increases strength and elasticity

heat
29

• Charles Goodyear
• inventor of vulcanized rubber accidentally
• later copied by Thomas Hancock (UK)
• Hancocks friend coined the term vulcanization
  after Vulcan, the Roman God of Fire
• Goodyear died penniless in fact 200,000 in
  debt. Yet..

"Life," he wrote, "should not be estimated
exclusively by the standard of dollars and cents.
I am not disposed to complain that I have planted
and others have gathered the fruits. A man has
cause for regret only when he sows and no one
reaps."
30
(No Transcript)
31
Method of preparation

• 2 types of preparation methods
• addition polymers
• condensation polymers
• (rearrangement polymers)?
• differences
• condensation produces a byproduct, e.g. water
• condensation polymers often have non-C atoms in
  backbone chains

32
Addition polymers

• formed by adding many monomer units together
  through chemical bonds
• e.g. polyethylene
• n CH2CH2 ? -CH2- CH2-n
• ethylene monomer polyethylene
• Other addition polymers polypropylene,
  poly(methyl methacrylate), polystyrene,
  poly(vinyl chloride)

33
Condensation polymers

• two molecules combine with the formation and loss
  of another smaller molecule
• e.g. poly(ethylene terephthalate) (PET)

Terephthalic acid
Ethylene glycol
34
Desirable properties
details
Everyday products
PE
definition
Natural
Synthetic
Plastics
Vulcanisation
Physical
Classification
Mol wt
Linear
Use
Preparation
Thermal behaviour.
Branched
Addition
Thermoset
Condensation
Plastics
Crosslinked
Thermoplastic
Fibres
Elastomers
