CONTENT AND LINK ANALYSIS FOR SEARCHING THE WEB

1

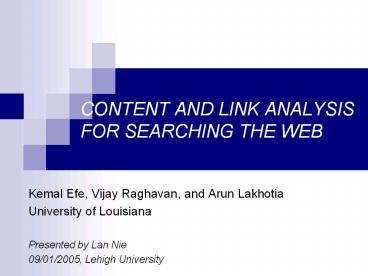

CONTENT AND LINK ANALYSIS FOR SEARCHING THE WEB

• Kemal Efe, Vijay Raghavan, and Arun Lakhotia
• University of Louisiana
• Presented by Lan Nie
• 09/01/2005, Lehigh University

2

• Introduction
• Search engine
• Crawl, index and retrieve information about web
  pages.
• find all of the relevant pages
• rank them by relevance to the user query
• present a rank-ordered result
• Recall and Precision
• Early Search Engine
• Solely keyword matching
• Lots of low quality pages, rankings rarely agreed
  with users interests
• Synonymy and polysemy
• Modern Search Engine
• Linkage structure provides valuable information.
• Link analysis combined with content analysis
• Substantially improve the search quality

3

• Link Analysis
• Authority Flow Model
• Link a channel for authority flow
• A page q with authority rank rq(i) at iteration i
  distribute all its current authority equally
  among its outgoing links.

• However..
• An authorative page on a subject is likely to be
  co-cited with other authoritative pages on the
  same subject
• Rank of a page should augmented by its
  co-citation degree.
• Random Walk Model
• Surfer walks on the web graph and make random
  decisions about where to go next
• PageRank is a combination of authority flow model
  and random walk model

4

• Continued..
• Authority and Hub
• Co-citation matrix ATA
• Entry (p,q) the number of joint co-citations
  received by p and q
• Entry (p,p) the indegree of page p.
• Bibliographic coupling matrix AAT
• Authority / Hub

• diagonal term authority is influenced by
  number of citation
• non-diagonal term authority is influenced by the
  degree co-citation
• Influence (co-citation) Influence (citation)
• A more general model different weights for
  diagonal terms and no-diagonal terms in the above
  computation

• HITS algorithm combined the authority and hub
  idea together

5
Content Analysis

• Which pages are important in the Web Graph? (Link
  Analysis)
• Which pages are relevant to the query?
  (Content Analysis)
• Tasks of Content Analysis
• how a page is relevant to the user query
• Similarity between documents in vector space
• Cosine Similarity
• Okapi measure, Three Level Scoring,Cover Density
  Ranking
• Where on the page to search for the query terms
• Fields Title, Anchor text, Abstract
• Properties Font, Highlighting, Capitalization,
  distance between subquery terms
• Deal with synonymy and polysemy
• LSI,GVSM
• Application in classification, document search
  and relevance ranking.

6

• Combining Content and Link Analysis (PageRank)
• Page Rank A Random Surfer (Brin and Page1998)
• With 1-d, jumps to a random page with d, follows
  a random outlink.
• Rank Is independent of query/ topic.

• Topic Sensitive Page Rank Multiple Focused
  Surfer(Haveliwala2002)
• A set of predefined topics (top level categories
  of ODP), with Ct as the set
• of URLs in the ODP category t.
• Each page is assigned a rank vector , one rank
  for each topic.
• Each surfer is focused on a specific topic t
• With 1-d, jumps to a page in Ct with d, follows
  a random outlink

• For a given query, a pages query-sensitive score
  is inner product of the pages rank vector and
  the querys topic distribution vector.

7

• Combining Content and Link Analysis (HITS)
• HITS
• Sampling
• Use query to collect a root set of pages from a
  textual search engine
• Expand the root set into a base set by adding
  pages linked to and from the root set
• Calculation of Authorities and Hubs

• Problems
• Tightly Knit Community (TKC) effect
• HITS has converged to the regions of the web
  graph which is highly connected . How about TKC
  is irrelevant to the topic?
• Page propagate the same authority weight to each
  outgoing page
• Result is dominated by one community, a page
  would be deemed unimportant if it is popular of a
  smaller community. ExampleJaguar

8

• Continued..
• Improvement of HITS
• Chakrabarti et al.1999
• Outlinks in different part of page may point to
  different topics
• Page splitting outlinks in the small page tend
  to be on the same topic
• Li et al.2002
• A good hub is likely to be cited, hub weights of
  pages are increased depending on their authority
  weights
• Cohn and Chang2001
• PHITS A probabilistic model to rank a page
  within its own community rather than within the
  entire base set
• Dean et. Al.1999
• Whats Related? Given the seed page, find its
  parents, children of its parents, its children,
  parents of its children
• Given a see page, find pages link to it, and what
  else they link to
• Output pages that are most frequently co-cited
  with the seed URL
• Bharat and Henzinger1998, Chakrabarti et
  al.1998
• Weighted HITS

9

• Weighted HITS
• CLEVER project (Chakrabarti et al.1998)
• A relevance weight is computed for each link
• W (p, q) The number of query matches in the
  surrounding texts of the link p-q

• Query Expansion (Bharat and Henzinger1998)
• A relevance weight is assigned to each page
• Broader Query Q concatenation the first 1000
  words from each doc in the root set
• W(p) cosine similarity between page p and
  broader query Q
