Photobiomodulation

1

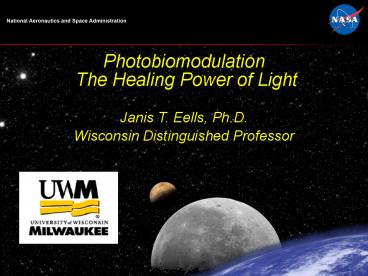

Photobiomodulation The Healing Power of
Light Janis T. Eells, Ph.D. Wisconsin
Distinguished Professor
2
Thank You for the Opportunity to Share Our Work

• WiSys and M. John
• UW Stout

3
Colleagues and Collaborators

• Ron Ignatius
• Judy Ignatius
• Robin Schumacher

• Janis Eells
• Kristina DeSmet
• Sandeep Gopalakrishan

• Jonathan Stone
• Krisztina Valter
• Diana Kirk

• Alfredo Sadun

• Harry Whelan
• Margaret Wong-Riley
• Michele Henry
• Ellen Buchmann

• Jim VerHoeve
• Mike Nork

• Solange Salomao
• Adriana Berezovsky

• Rina Das
• Marti Jett

4
Photobiomodulation Change in Function by Light

• EXAMPLES
• Photosynthesis
• Vit D Activation
• Rhodopsin activation in Vision

5
The Leap from Plants to Animals

• Light stimulates photoacceptor molecules in
  plant cells and in animal cells.
• Plant cells chloroplasts contain chlorophylls
  and other photoacceptors phytochromes,
  cryptochromes
• Animal cells - cytochrome c oxidase
  (mitochondria), hemoglobin, myoglobin, porphyrin
  compounds.

6
From Growing Plants on the Space Shuttle to
Treating Mouth Ulcers in Cancer Patients

• NASA funded the development of LEDs for use in
  Plant Growth Experiments on the Space Shuttle and
  International Space station
• QDI and Wisconsin Center for Space Automation and
  Robotics
• Shown to improve healing in animal models of
  diabetic wound healing
• Used to improve healing of Mucositis in Bone
  Marrow Transplant Patients

7
Photobiomodulation Postulated Signaling Pathway
8
Photobiomodulation Activation of Mitochondrial
Cytochrome Oxidase
9
Why Cytochrome OxidaseCorrelation of Absorption
Spectrum with Action Spectrum
10
Photobiomodulation Why Cytochrome Oxidase?

• Cytochrome Oxidase absorbs light at the NIR
  wavelengths which promote cell division, cell
  repair and cell metabolism
• Key mitochondrial enzyme
• Important Regulator of Cell Function
• Cell Signal Transducer

11
Why Mitochondria?

• Produce Energy - ATP
• Side Product - ROS
• Signal other parts of cell
• Regulate Life and Death of the Cell -natures
  ultimate clock

12
Mitochondrial Dysfunction Plays An Important Role
in Cellular Aging and Degenerative Diseases

• Cardiovascular Disease
• Eye Diseases - Macular Degeneration, Glaucoma
• Neurodegenerative Diseases - Parkinsons Disease
• Skeletal Muscle - Aging and Injury
• Metabolic Diseases - Diabetes
• Environmental Toxins - TCDD

13
Photobiomodulation for Laser Induced Retinal
Damage


Pilot Lased
Damaged Retina
Healed Functional Retina
Low Level Energy Therapy Integrated into Face
Sheild and Helmet of Pilot
Persistence in Combat
14
Photobiomodulation Promotes Retinal Healing
Following Laser Eye Injury
15
Methanol Intoxication Models Aging and Retinal
Disease by poisoning retinal mitochondria

• Ingestion of a small amount (1-2 oz) of methanol
  can produce permanent blindness.
• Methanol is metabolized to a mitochondrial toxin,
  formic acid which acts to inhibit Cytochrome
  Oxidase.
• Formic acid disrupts mitochondrial function in
  the retina and optic nerve resulting in blindness.

16
Photobiomodulation for Retinal Disease
17
Photobiomodulation Attenuates Methanol
Toxicity Protects Against Loss of Retinal
Function

• 670 nm Treatment
• At 5 hr, 25hr, 50 hr
• 28 mW/cm2 - 2 min
• 4 joules/cm2

18
Photobiomodulation Attenuates Methanol
Toxicity Prevents Retinal Damage
19
Retinitis Pigmentosa is a Retinal Degenerative
Disease Characterized by Photoreceptor Death

• A majority of RP cases result from a mutation in
  the rhodopsin gene
• Leading to misfolded opsin.
• Misfolded opsin increases oxidative stress and
  leads to photoreceptor cell death

20
Will Photobiomodulation Attenuate Photoreceptor
Cell Death Retinits Pigmentosa?

• Time Course of Photoreceptor Death
• in the P23H-3 and SD Retina

21
(No Transcript)
22
Photobiomodulation reduced the rate of
photoreceptor death during the critical period
23
Photobiomodulation Applications

• Eye Diseases - Macular Degeneration, Glaucoma,
  Diabetic Retinopathy
• Neurodegenerative Diseases - Parkinsons Disease,
  ALS, Alzheimers Disease, MS
• Skeletal Muscle - Aging and Injury
• Metabolic Diseases - Diabetes
• Environmental Toxins

24
Acknowledgement of Support
