Title: CEF Networks lighting


1

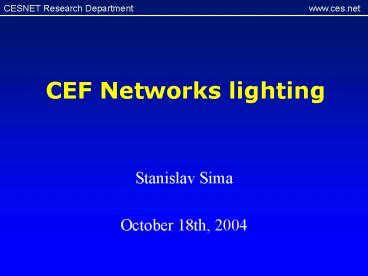

CEF Networks lighting
  • Stanislav Sima
  • October 18th, 2004

2
National LambdaRail in USA
  • The first National LambdaRail link was lit in
    2003
  • Last month, NLR completed the first full
    East-West phase of deployment, which included
    links between Denver and Chicago, Atlanta and
    Jacksonville, and Seattle and Denver.
  • Phase two, which is expected to be complete by
    May or June 2005, will cover the southern region
    of the United States.
  • Cisco (Pirelli) 15808 transmission equipment,
    4x10Gbps, expandable

3
Crucial Importance
  • Experts say NLR is the most ambitious networking
    initiative since two efforts considered crucial
    to the development and commercialization of the
    Internet
  • the U.S. Department of Defense commissioned the
    ARPAnet in 1969
  • the National Science Foundation worked on NSFnet
    in the late 1980s

4
NLR Topology
5
Dark fibre connection of NLR users
  • There is still a serious last-mile problem. It's
    great we have this nationwide infrastructure, but
    it can only be used if you have the fiber to
    connect to it.
  • Internet2 has established the National Research
    and Education Fiber Company (FiberCo) to help
    these groups acquire regional fiber.

6
Lengths of dark fibres in RENs
  • More than 20 000 km in Europe
  • (plus some fibres for GN2 and GN2 testbed)
  • About 33 920 km in USA
  • (including National LambdaRail)
  • About 6 700 km in Canada
  • NFF contracted in Australia .

7
GN2 starting position
  • The second continent-wide CEF network?
  • but winner takes the all!
  • More advanced transmission technology?
  • More fibre miles than NLR ?
  • Ability to add dark fibre lines instead of leased
    services (lambdas) each year?
  • Transition of NRENs and academic MANs to dark
    fibres with GN2 support?
  • Testbed for GN2 dark fibre transmission
    technology and switching upgrade?

8
(No Transcript)
9
GN2 topology
  • CESNET, Pionier, SANET, Switch, . are CEF
    Networks now
  • Near over Border (NoB) connections of CEF
    Networks are mostly technically simple, cheap,
    natural and advantageous (low cost international
    traffic, local peering,.)
  • GN2 will be overlaying (the second) dark fibre
    infrastructure
  • Should GN2 copy GEANT old IP topology?
  • Some traditional GN2 lines will be redundant
  • Delivering of long E2E lambdas will be crucial
    for NRENs from GN2, not neighbour country
    connection (Nordunet, SEEnet,. )

10
(No Transcript)
11
SANET transmission devices
  • Leased dark fibre G.652
  • Length of backbone 860 km
  • Total lenght 1220 km
  • Catalyst 6509 at POPs
  • Catalyst 3524 as a signal amplifier
  • Backbone speed 1 Gbps

12
Pionier fibre network
13
Pionier transmission devices
  • Owned dark fibres G.652, G.655
  • 10 Gigabit Ethernet Black Diamond 6808 switches
  • ADVA FSP 3000 Slimline as regenerators
  • 21 nodes

14
AMREJ - Serbia
15
AMREJ transmission devices
  • Leased lines G.652
  • Inter-city fiber length 1 400 km
  • Catalyst 6509 and 3550
  • SEEFIRE IST3 project proposal for CEF networks
    deployment in SEE countries

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Lighting of dark fibre NIL approach
  • Production lines G.652, 1550 nm, EDFA
  • 189 km Praha Pardubice GE since May 2002
  • 235 km Brno Ostrava GE since June 2003
  • 235 km Brno Ostrava OC-48 in 4 months 2004
  • Experimental lines G.652, 1550 nm, EDFA
  • 286 km Praha Brno GE May 2004 (Raman)
  • More wavelengths possible

20
NIL tests in laboratory
  • G.652 fibre spools, EDFA Raman
  • 325 km GE
  • 250 km OC-48
  • 252 km 2x 10 GE
  • 290 km 10 G DWDM
  • G.655 fibre spools (recently delivered)
  • 302 km 10 G DWDM
  • lower cost of dispersion compensation on 10 Gbps

21
Low costs transmission technology for CEF networks
22
Acknowledgement
  • Lada Altmanova for dark fibre acquiring
  • Miroslav Karasek and Jan Radil for lighting of
    CESNET2 and CzechLight fibres
  • Comment presented ideas and opinions are result
    of our ongoing RD activities and are opened to
    improvement
