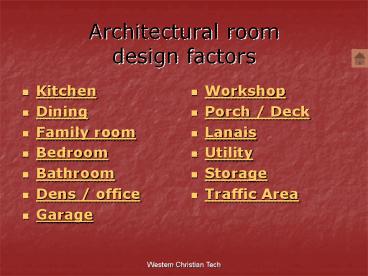

Architectural room design factors

1
Architectural room design factors

• Kitchen
• Dining
• Family room
• Bedroom
• Bathroom
• Dens / office
• Garage

• Workshop
• Porch / Deck
• Lanais
• Utility
• Storage
• Traffic Area

2
Kitchen

• Function
• Preparation of food
• Location
• near service entrance.
• Childrens play area should be visible from the
  kitchen.
• Adjacent to dining area and outdoor eating areas.
• Size and shape
• U-shaped, Peninsula, L-shaped, Corridor,
  One-wall, Island, Family.
• Average size family kitchen is 15 X 15.(dining
  not included)
• Considerations.
• hard surfaced floor, good ventilation, oven and
  range should be separated by at least one
  cabinet, working heights for a table is 30, work
  triangle between 12 and 21, adequate storage
  facilities, electrical outlets for each work
  center, good lighting.

3
Dining Room

• Function
• To provide a place for the family to gather for
  breakfast, lunch, or dinner in both casual and
  formal situation
• Location
• Placed adjacent to the kitchen. Should require
  few steps from kitchen
• Placed between kitchen and living area
• Size and Shape
• Determined by the size of the family
• Should be planned to accommodate the largest
  group that will dine in there
• Usually a rectangular shape. No short walls
• Considerations
• Large furniture. Tables, walk space, china
  cabinets.
• Local lighting directly over the dining room
  table
• A dining room table that expands

4
Family Room

• Function
• Room to provide the facilities for a
  family-center activities such as movie room,
  childrens playroom, hobby room, or music room.
• Location
• If living room is present, usually located
  downstairs.
• Away from quiet area.
• Accessible but not visible from the rest of the
  living area. Adjacent to the kitchen.
• Size and Shape
• Minimum 200 square feet. It is usually square or
  rectangular
• Considerations
• It needs resilient floors. Use paneling or tile
  on walls because it has less damage. It has to
  have a lot of storage.

5
Bedrooms

• Function
• Provide facilities for sleeping, writing,
  reading, sewing, listening to music, and
  relaxing.
• Location
• Quiet part of the house,
• Close to the bathroom.
• Size Shape
• A minimum bedroom is 100 square feet. (closets
  not included)
• A normal bedroom is 100 to 200 square feet.
  Shape is usually rectangular or square.
• Considerations
• Should have noise reducers, such as carpet and
  curtains. Should have good ventilation.
• Should have closet suiting your own personal
  needs.

6
Bathrooms

• Function
• Other than the obvious, its a place to bathe,
  dress, exercise, and possible laundering.
• Location
• Should be quickly accessible from all bedrooms.
• Size Shape
• Master bath should be separate.
• Main floor needs at least ½ bath if only master
  bedroom exists.
• Considerations
• Should have good ventilation, heater, medicine
  cabinet, and a mirror.

7
Dens and Office

• Function
• Reading room, writing room, hobby room, or
  professional office
• Location
• Considered part of the sleeping area because it
  may require quietness
• Considered part of the living area and should be
  accessible from the main entrance
• Size And Shape
• Varies with what the den/study will be used for
• Used privately or meeting place
• Small enough for just a desk and chair, or big
  enough for all the furnishings you need
• Considerations
• Décor should reflect the main activity
• Glare-proof lighting
• Windows above eye level should bring in the
  maximum light available without the eye level
  distractions
• Placed adjacent to the kitchen. Should require
  few steps from kitchen
• If not in the family room, should be located next
  to it
• Placed between kitchen and living area

8
Garage

• Function
• It is an enclosed structure to protect an
  automobile.
• Location
• It can be attached or unattached to the house or
  building.
• If attached it is usually located near the
  kitchen
• Size And Shape
• Varies with what the den/study will be used for
• Used privately or meeting place
• Small enough for just a desk and chair, or big
  enough for all the furnishings you need
• Considerations
• They should have a sloped floor for drainage.
  They also need a driveway with enough space for
  guests cars to park on.

9
Workshop

• Function
• Used for activities like hobbies or home
  maintenance or care
• Location
• They are generally located in the basement,
  garage, separate room, or another building nearby
  Size And Shape
• Size And Shape
• Size depends on size and number of tools and
  supplies inside. It also depends on the amount of
  workspace and benches needed. It should be
  planned for expansion.
• Considerations
• Floors should be smooth for easy cleanup. Exhaust
  fans and glossy tiled walls eliminate dust
  buildup. There should also be enough insulation
  to create a sound barrier.

10
Porch / Deck

• Function
• Performs outdoors all the functions that the
  kitchen, living room, dining room, rec room, and
  family room perform indoors.
• Others are used as an entrance to a house.
• May be divided into three different parts living
  patios, play patios, and quiet patios
• Location
• Front and rear of homes around entrances for
  shelter.
• Size And Shape
• Vary from very large sizes, to a small shelter
  over a door.
• Depends upon how the porch can be integrated into
  the home.
• A porch that is 6'x8' is considered small, and a
  porch that is 12'x18' is considered rather large.
• Considerations
• The lines of the porch should be consistent with
  the lines of the house.
• It should be designed as a integral and
  functional part of the total structure.
• Various materials can be used for the railings,
  depending on the degree of privacy or sun and
  wind protection.
• The sides of the porch should provide adequate
  ventilation and offer semi-privacy and protection.

11
Lanais

• Function
• provide shelter for the traffic access on the
  exterior of the building.
• Exterior hallways. Lanais that are located
  parallel to exterior walls are usually created
  by extending the roof overhang to cover a traffic
  area.
• Location
• In residence a lanai can be used most effectively
  to connect opposite
• areas of a home. Lanais are commonly located
  between the garage and the kitchen, the patio and
  the kitchen of the living area, and the living
  area and the service area. U-shaped buildings
  are especially suitable for lanais because it is
  natural to connect the extremes of the U.
• Size And Shape
• Lanais may extend the full length of a building
  and may be designed maximum traffic loads. They
  may be as small as the area under a 2' or 3' roof
  overhang. However, a lanai at least 4' wide is
  desirable.
• Considerations
• Consistent, integral part of the design of the
  structure.
• Columns supporting the overhang also provide a
  visual boundary without blocking the view.

12
Utility room

• Function
• Includes facilities for washing, drying,
  ironing, sewing, and storing household cleaning
  equipment.
• Location
• Keep water sources consistant between levels.
• Can be located in a separate laundry area, a
  kitchen, or in a closet, basement, porch, or
  garage
• Size And Shape
• Average size needed is about 100 square feet.
  Washer and dryer should be located next to each
  other
• Considerations
• The appliances and working spaces should be
  arranged in the order in which they are used.
  Can have humidifiers and air purifiers o

13
Storage

• Design considerations
• Storage should be provided for any general things
  kept there.
• There should be storage in every room in the form
  of closets or cupboards.
• They should be adequate for the amount of things
  that will be stored while being a size and shape
  that is not an inconvenience to the rest of the
  room.
• They should have enough shelves and drawers to
  accommodate stored item. They also need to have
  good access with enough cabinet doors and
  cabinets that are not too deep.

14
Traffic Area

• Function
• The traffic areas of the home provide passage
  from one room or area to another.
• Location
• It should be centrally located in the house to
  get to all areas of the house.
• Size and Shape
• A minimum amount of space should be devoted to
  traffic areas. Extremely long halls are avoided
  through other areas.
• Considerations
• 3 minimum width
• well lighted.
