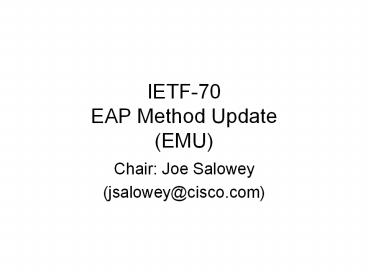

IETF-70 EAP Method Update (EMU)

1
IETF-70EAP Method Update(EMU)

• Chair Joe Salowey
• (jsalowey_at_cisco.com)

2
Agenda

• 1. Administrivia (5 min)
• 2. Draft updates (10 min)
• 3. Charter Discussion (40 min)
• 4. Tunneling Method presentations (30 min)
• - EAP-TTLS (15 min) (Steve Hanna)
• - EAP-FAST (15 min) (Gene Chang)
• 5. Tunneling methods Requirements Discussion (60
  min)

3
Charter Update
4
Charter Revision Summary

• Add charter item for tunnel EAP method
• Modify password based item to make use of tunnel
  method
• Modify "enhanced TLS" item to focus on adding
  channel bindings to a TLS based mechanism
• Updated milestones
• Include requirements draft milestone

5
Charter Update

• - A mechanism to support extensible
  communication within a TLS protected tunnel to
  support meeting the requirements of an enhanced
  TLS mechanism, a password based authentication
  mechanism, and to support additional inner
  authentication mechanisms.

6
Charter Update Cont.

• - Enhanced functionality to enable a TLS-based
  EAP method to support channel bindings. So as to
  enable RFC 2716bis to focus solely on
  clarifications to the existing protocol, this
  effort will be handled in a separate document.
  This item should not generate a new method rather
  it should be based on existing EAP-TLS or a TLS
  based tunnel method.

7
Charter Update Cont.

• - A mechanism meeting RFC 3748 and RFC 4017
  requirements that makes use of existing password
  databases such as AAA databases. The
  implementation should strive to be usable in
  resource constrained environments. This item will
  make use of the above tunnel method.

8
Charter Milestones

• Dec 2007 Submit Strong Shared Secret Mechanism to
  IESG
• Feb 2008 Tunnel Method requirements first draft
  submitted
• May 2008 Tunnel Method first draft submitted
• June 2008 Submit Password method extensions to
  tunnel method
• June 2008 Submit Extended TLS method extensions
  to tunnel method
• Mar 2008 Submit Tunnel Method to IESG
• Apr 2008 Submit Enhanced EAP-TLS to IESG
• Apr 2008 Submit Password based method to IESG

9
Tunnel Method Presentations
10
Tunnel MethodRequirements
11
Requirements Areas

• 1. Changes to current requirements (required to
  meet 3748, 4017, eap keying etc.)
• 2. Tunneling EAP methods for authentication (eg,
  chaining, result indication, etc.)
• 3. Additional data that needs to be tunneled
  (channel binding, etc.)
• 4. Extensibility
• 5. Additional requirements for the tunnel itself

12
Requirements from Password Method

• 1. Transport of encrypted password for support of
  legacy password
• databases (REQUIRED)
• 2. Mutual authentication (specifically
  authentication of the server)
• (REQUIRED)
• 3. resistance to offline dictionary attacks,
  man-in-the-middle attacks
• (REQUIRED)
• 4. Compliance with RFC 3748, RFC 4017 and EAP
  keying (including EMSK and
• MSK generation) (REQUIRED)
• 5. Peer identity confidentiality (REQUIRED)
• 6. Crypto agility and ciphersuite negotiation
  (REQUIRED)
• 7. Session resumption (no password needed)
  (REQUIRED)
• 8. Fragmentation and reassembly (REQUIRED)
• 9. Cryptographic binding (REQUIRED if additional
  inner mechanisms are
• supported)
• 10. Password/PIN change (DESIRABLE)
• 11. Transport Channel binding data (REQUIRED)
• 12. Protected result indication (REQUIRED)
• 13. Support for certificate validation protocols
  (DESIRABLE)
• 14. Extension mechanism (in support of 10 - 12)
  (REQUIRED)

13
(No Transcript)
