Gigabit Ethernet Design ECE 4006C Spring 2003

1

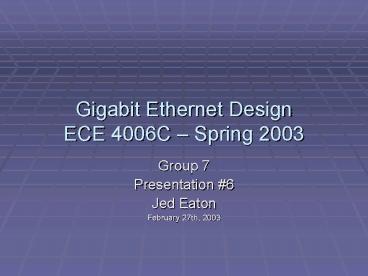

Gigabit Ethernet DesignECE 4006C Spring 2003

• Group 7
• Presentation 6
• Jed Eaton
• February 27th, 2003

2
Progress Report

• Conducted Attenuation Tests in Lab
• Financial Budget Completed
• Passives selected
• Board Layout Complete and Ordered
• Continued Work on Midterm Paper

3
Eye Results 40 dB Attenuation
D21.5
K28.5
PRBS7
K28.7
4
Eye Results 50 dB Attenuation
D21.5
K28.5
PRBS7
K28.7
5
Financial Budget
6
Completed Board Design
7
Gantt Chart
8
Next Week..(After Spring Break)

• Receive Board/Parts and begin Soldering
• Finish Midterm Paper

9
