Title: Check Point Quiz


1

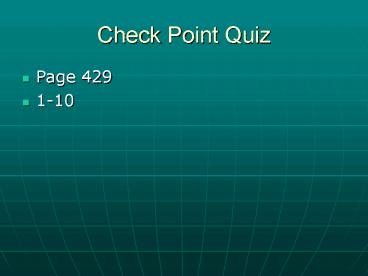

Check Point Quiz
  • Page 429
  • 1-10

2
Lesson 8-3Proving Triangles Similar
  • Objective 8-3.1 Use AA, SAS and SSS similarity
    statements
  • Objective 8-3.2 Apply AA, SAS and SSS
    similarity statements

3
Postulate 8-1 Angle-Angle Similarity Postulate
(AA)
If two angles of one triangle are congruent to
two angles of another triangle, then the
triangles are similar.
4
Example Using the AA Postulate
Explain why the two triangles are similar.
Given - Angles have equal
measures
5
ExampleWrite a Similarity Statement
by the Angle-Angle Similarity Postulate
Do we have enough information to find the
similarity ratio??
No, we dont know any of the side lengths
6
Theorem 8-1 Side-Angle-Side Similarity Theorem
(SAS)
If an angle of one triangle is congruent to an
angle of a second triangle,
and the sides including
the two angles are proportional,
then the two triangles are similar.
AB AC QR QS
7
Example Using Similarity Theorems
Both are right angles
Therefore, QRP XYZ by the SAS Theorem.
8
Theorem 8-2 Side-Side-Side Similarity Theorem
(SSS)
If the corresponding sides of two triangles are
proportional, then the triangles are similar.
9
Example
  • Can you conclude the triangles are similar?

F
A
D
E
Yes, by SSS ?ABC ? ?FED
B
C
Can you conclude the triangles are similar?
A
3
Yes, ?APJ ? ?ABC by SSS or by SAS
2
P
J
5
3.3
B
C
8
10
Example Finding Lengths in Similar Triangles
11
Find DE
Corresponding sides of similar triangles are
proportional
Substitution
2DE 30
Cross-Product Property
DE 15
Division Property of Equality
12
Example
  • Explain why the triangles are similar and find x

Triangles are similar by AA
5 x 6 3
5
x
110?
70?
  • 6x

3
3
2.5 x
13
Using Similar Triangles for Indirect Measurement
In sunlight, a cactus casts a 9-ft shadow. At
the same time a person 6 ft tall casts a 4-ft
shadow. Find the height of the cactus.
or
or
or
4x 54
x 13.5
Cactus is 13.5 ft tall.
14
Homework
  • Page 435
  • Problems 4-18e,24,26,30-38e
