Decorator Pattern

1

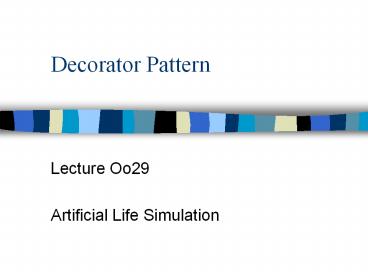

Decorator Pattern

• Lecture Oo29
• Artificial Life Simulation

2
Teaching Points

• Decorator Pattern
• Artificial Life Simulation
• Lab 3

3
Review

• What is a component
• How can you use components and interfaces to
  efficiently partition your systems physical
  architecture?
• In Java-style exception handling what is thrown?

4
Decorator Pattern

• The Problem
• sometimes we want to add responsibilities to
  individual objects, not to an entire class.
• for responsibilities that can be add/withdrawn
  dynamically
• when extension by subclassing is impractical

5
Decorator Pattern

• The solution
• Attach additional responsibilities to an object
  dynamically.
• A flexible approach is to enclose the component
  in another object that adds the responsibility.

6
Decorator Pattern (structure)
7
Decorator Pattern (example)
8
Artificial Life Simulator

• A framework
• Pattern based
• Decorator
• Chain of responsibility
• Observer
• Iterator

9
Use Case Diagram
10
Architecture
11
(No Transcript)
12
Run Simulation Use Case
13
Update Creature State Use Case

• Interaction with the world

14
Update Creature State Use Case

• Reproduction

15
Teaching Points

• Decorator Pattern
• Artificial Life Simulation
• Lab 3
