Title: Beam Pattern for a Single Slot Antenna


1

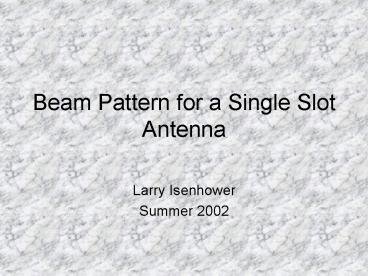

Beam Pattern for a Single Slot Antenna
  • Larry Isenhower
  • Summer 2002

2
What exactly am I doing?
  • At first I was writing LabView programs to talk
    with many different instruments in the lab to get
    their information onto a computer.
  • Then I began to make measurements on a scale
    model single slot planar antenna to make a far
    field beam pattern to help test simulations that
    have been made for the actual antenna.

3
What will the antenna be used for?
  • The antenna I am mapping is a scale model for a
    possible antenna that may be used to study the
    Cosmic Microwave Background (CMB)
  • This new antenna will be sensitive to the
    polarization of the CMB and will be smaller than
    existing antennas.

4
What is the CMB?
  • It is the oldest light in the universe.
  • The CMB allows astronomers to find many
    fundamental parameters.
  • This is the CMB power spectrum obtained from
    current data.

From Max Tegmarks webpage
5
The antenna
  • First I needed to verify that our antenna
    resonated at the correct frequency that we had
    predicted.

6
Far field setup
7
Far Field beam map
  • After having verified that the antenna really did
    resonate at the predicted frequency I moved on to
    make a Far Field beam map.

8
Still more about the antenna
  • We also had a lens made for the antenna. The
    main peak occurs at 30 degrees because of the
    slot being off center, but we dont know what is
    causing the asymmetry.

9
Where I stand now
  • I have finished mapping the single slot antenna.
  • The next step is to figure out the problem with
    our lens.
  • Then we would get a scale model of the actual
    antenna that we will be using in our experiments
    and test that.
