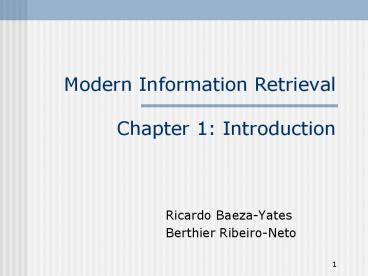

Modern Information Retrieval Chapter 1: Introduction

1
Modern Information RetrievalChapter 1
Introduction

• Ricardo Baeza-Yates
• Berthier Ribeiro-Neto

2
Motivation

• Example of the user information need
• Topic NCAA college tennis team
• Description Find all the pages (documents)
  containing information on college tennis teams
  which (1) are maintained by an university in the
  USA and (2) participate in the NCAA tennis
  tournament.
• Narrative To be relevant, the page must include
  information on the national ranking of the team
  in the last three years and the email or phone
  number of the team coach.

3
IR Research

• Information retrieval vs Data retrieval
• Research
• information search
• information filtering (routing)
• document classification and categorization
• user interfaces and data visualization
• cross-language retrieval

4
IR History

• 1970
• 1990, WWW

5
The User Task

• Retrieval (Searching)
• classic information search process where clear
  objectives are defined
• Browsing
• a process where ones main objectives are not
  clearly defined and might change during the
  interaction with the system

6
Logical View of the Documents

• Text Operations
• reduce the complexity of the document
  representation
• a full text ? a set of index terms
• Steps
• 1. Stopwords removing
• 2. Stemming
• 3. Noun groups
• 4. ...

7
Past, Present, and Future

• Early Development
• Index
• Library
• Author name, title, subject headings, keywords
• The Web and Digital Libraries
• Hyperlinks

8
Conventional Text-Retrieval Systems Automatic
Text Processing

• G. Salton, Addison-Wesley, 1989.
• (Chapter 9)

9
Data Retrieval

• A specified set of attributes is used to
  characterize each record.EMPLOYEE(NAME, SSN,
  BDATE, ADDR, SEX, SALARY, DNO)
• Exact match between the attributes used inquery
  formulations and those attached to the document.
  SELECT BDATE, ADDR FROM EMPLOYEE WHERE NAME
  John Smith

10
Text-Retrieval Systems

• Content identifiers (keywords, index terms,
  descriptors) characterize the stored texts.
• Degrees of coincidence between the sets of
  identifiers attached to queries and documents

content analysis
query formulation
11
Possible Representation

• Document representation (Text operation)
• unweighted index terms (term vectors)
• weighted index terms
• Query (Query operation)
• unweighted or weighted index terms
• Boolean combinations (or, and, not)
• Search operation must be effective
• (Indexing)

12
File Structures

• Main requirements
• fast-access for various kinds of searches
• large number of indices
• Alternatives
• Inverted Files
• Signature Files
• PAT trees

13
Inverted Files

• File is represented as an array of indexed
  documents.

14
Inverted-file process

• The document-term array is inverted (transposed).

15
Inverted-file process (Continued)

• Take two or more rows of an inverted
  term-document array, and produce a single
  combined list of document identifiers.
• Ex Query (term2 and term3)
• term2 1 1 0 0term3 0 1 1 1--------------------
  ---------------------------------- 1 lt-- D2

16
List-merging for two ordered lists

• The inverted-index operations to obtain answers
  are based on list-merging process.
• ExampleT1 D1, D3T2 D1, D2Merged(T1,
  T2) D1, D1, D2, D3

17
Extensions of Inverted Index Operations(Distance
Constraints)

• Distance Constraints
• (A within sentence B)terms A and B must co-occur
  in a common sentence
• (A adjacent B)terms A and B must occur
  adjacently in the text

18
Extensions of Inverted Index Operations(Distance
Constraints)

• Implementation
• include term-location in the inverted
  indexesinformation P345, P348, P350,
  retrieval P123, P128, P345,
• include sentence-location in the indexes
• information P345, 25 P345, 37 P348, 10
  P350, 8 retrieval P123, 5 P128, 25
  P345, 37 P345, 40

19
Extensions of Inverted Index Operations(Distance
Constraints)

• Include paragraph numbers in the indexessentence
  numbers within paragraphsword numbers within
  sentencesinformation P345, 2, 3, 5
  retrieval P345, 2, 3, 6
• Query examples(information adjacent
  retrieval)(information within five words
  retrieval)
• Cost the size of indexes

20
Retrieval models
Set Theoretic
Fuzzy Extended Boolean
Classic Models
Boolean Vector Probabilistic
Algebraic
Generalized Vector Latent Semantic Index Neural
Networks
Probabilistic
Inference Network Belief Network
21
Classic IR Model

• Basic concepts Each document is described by a
  set of representative keywords called index
  terms.
• Assign a numerical weights to distinct relevance
  between index terms.

22
Boolean model

• Binary decision criterion
• Data retrieval model
• Advantage
• clean formalism, simplicity
• Disadvantage
• It is not simple to translate an information need
  into a Boolean expression.
• exact matching may lead to retrieval of too few
  or too many documents

23
Vector model

• Assign non-binary weights to index terms in
  queries and in documents. gt TFxIDF
• Compute the similarity between documents and
  query. gt Sim(Dj, Q)
• More precise than Boolean model.

24
Term Weights

• Term WeightsDiTi1, 0.2 Ti2, 0.5 Ti3, 0.6
• Issues
• How to generate the term weights?
• How to apply the term weights?
• Sum the weights of all document terms that match
  the given query.
• Rank the output documents in the descending order
  of term weight.

25
Boolean Query with Term Weights

• Transform a Boolean expression into disjunctive
  normal form. T1 and (T2 or T3) (T1 and T2)
  or (T1 and T3)
• For each conjunct, compute the minimum term
  weight of any document term in that conjunct.
• The document weight is the maximum of all the
  conjunct weights.

26
Boolean Query with Term Weights

• Example Q(T1 and T2) or T3Document Conjunct Q
  ueryVectors Weights Weight (T1 and T2) (T3)
  (T1 and T2) or T3D1(T1,0.2T2,0.5T3,0.6) 0
  .2 0.6 0.6D2(T1,0.7T2,0.2T3,0.1) 0.2 0.1
  0.2D1 is preferred.

27
Summary

• Conventional IR systems
• Evaluation
• Text operations (Term selection)
• Query operations (Pattern matching, Relevance
  feedback)
• Indexing (File structure)
• Modeling

28
Resources

• Journals
• Journal of American Society of Information
  Sciences
• ACM Transactions on Information Systems
• Information Processing and Management
• Information Systems (Elsevier)
• Knowledge and Information Systems (Springer)
• Conferences
• ACM SIGIR, DL, CIKM, CHI, etc.
• Text Retrieval Conference (TREC)
