Privacy Preserving Data Publication

1

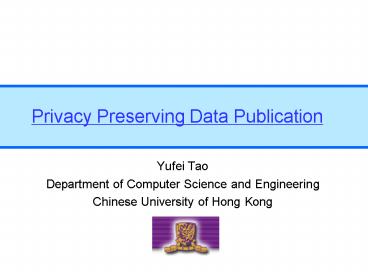

Privacy Preserving Data Publication

• Yufei Tao
• Department of Computer Science and Engineering
• Chinese University of Hong Kong

2
Centralized publication

• Assume that a hospital wants to publish the
  following table, called the microdata.
• The publication must preserve the privacy of
  patients.
• Prevent an adversary from knowing
  who-contracted-what.

Microdata
3
Centralized publication (cont.)

• A simple solution Remove column Name.
• It does not work. See next.

publish
4
Linking attacks
A voter registration list
The published table
Quasi-identifier (QI) attributes
An adversary
5
These are real threats

• Fact 87 of Americans can be uniquely identified
  by Zipcode, gender, date-of-birth.
• A famous experiment by Sweeney International
  Journal on Uncertainty, Fuzziness and
  Knowledge-based Systems, 2002
• finds the medical record of an ex-governor of
  Massachusetts.

6
Objectives

• Publish a distorted version of the dataset so
  that
• Privacy the privacy of all individuals is
  adequately protected
• Utility the dataset is useful for analyzing the
  characteristics of the microdata.
• Paradox Privacy protection ?, utility ?.

7
Issues

• Privacy principle
• What is adequate privacy protection?
• Distortion approach
• How to achieve the privacy principle?
• The literature has discussed other issues as
  well.
• Complexities, improving the utility of the
  published data, etc.

8
Principle 1 k-anonymity
Sweeney, International Journal on Uncertainty,
Fuzziness and Knowledge-based Systems, 2002
Sensitive attribute

• 2-anonymous generalization

QI attributes
A voter registration list
4 QI groups
9
Defects of k-anonymity

• What is the disease of Joe?

No diversity in this QI group.
A voter registration list
10
Principle 2 l-diversity
Machanavajjhala et al., ICDE, 2006

• Each QI group should have at least l
  well-represented sensitive values.
• Different ways to interpret well-represented.

11
Naive interpretation

• Each QI-group has l different sensitive values.

A 2-diverse table
12
Defects of the naive interpretation

• Assume that Joe is identified in the QI group.
  What is the probability that he contracted HIV?
• Implication The most frequent sensitive value in
  a QI group cannot be too frequent.
• But accomplishing only this is still vulnerable
  against attacks with background knowledge.

98 tuples
A QI group with 100 tuples
13
Background knowledge attack

• Let Joe be an individual in the QI group having
  HIV.
• A friend of Joe has the background knowledge
  Joe does not have pneumonia.
• How likely would this friend assume that Joe had
  HIV?

50 tuples
A QI group with 100 tuples
49 tuples
14
Controlling also the 2nd most frequent value

• Even if an adversary can eliminate pneumonia,
  s/he can only assume that Joe has HIV with 40 /
  70 probability.

40 tuples
A QI group with 100 tuples
30 tuples
30 tuples
15
An example of 5-diversity
The most frequent value
The 2nd most frequent value
A QI group
The 3rd most frequent value
The 4th most frequent value
The other values
16
An example of 5-diversity (cont.)
The most frequent value
A QI group
Same cardinality
The other values
17
An example of 5-diversity (cont.)

• Assume that Joe is a person in the QI group.
• Property If an adversary can eliminate only ? 3
  diseases, s/he can correctly guess the disease of
  Joe with at most 50 probability.

HIV
pneumonia
A QI group
bronchitis
cancer
The other values
18
l-diversity

• Consider a QI group.
• m is the number of sensitive values in the group.
• r1 is the number of tuples having the most
  sensitive value.
• r2 is the number of tuples having the 2nd most
  sensitive value.
• rm is the number of tuples having the m-th most
  sensitive value.
• Then, r1 ? c (rl rm), where c is a
  constant.
• If an adversary can eliminate only l 2
  sensitive values, s/he can infer the disease of a
  person with probability at most 1 / (c 1).
• Called (c, l)-diversity precisely.

19
Defects of l-diversity

• Andy does not want anyone to know that he had a
  stomach problem.
• Sarah does not mind at all if others find out
  that she had flu.

A 2-diverse table
A voter registration list
20
Defects of l-diversity (cont.)

• Does not work if an individual can have multiple
  tuples in the microdata.

Microdata
21
Defects of l-diversity (cont.)

A 2-diverse table
A voter registration list
22
Principle 3 Personalized anonymity
Xiao and Tao, SIGMOD, 2006

• Key ideas Guarding node sensitive attribute
  (SA) generalization
• Assume a publicly-known hierarchy on the
  sensitive attribute.

23
Guarding node

• Andy does not want anyone to know that he had a
  stomach problem.
• He can specify stomach disease as the guarding
  node for his tuple.
• Protect Andy from being conjectured to have any
  disease in the subtree of the guarding node.

24
Guarding node (cont.)

• Sarah is willing to disclose her exact symptom.
• She can specify Ø as the guarding node for her
  tuple.

25
Guarding node (cont.)

• Bill does not have any special preference.
• He sets the guarding node of his tuple to be the
  same as his sensitive value.

26
A personalized approach
27
Personalized anonymity

• No adversary should be able to breach the privacy
  requirement of any guarding node with a
  probability above pbreach..
• If pbreach 0.3, then no adversary can have more
  than 30 probability to find out that
• Andy had a stomach disease
• Bill had dyspepsia

28
Why SA generalization?

• How many female patients are there with age above
  30?
• 4 (60 30 1) / (60 21 1) 3
• Real answer 1

Pure QI generalization
Microdata
29
SA generalization (cont.)

With SA generalization
Pure QI generalization
30
Evaluation of disclosure risk

• What is the probability that the adversary can
  find out that Andy had a stomach disease?

A voter registration list
The published data
31
Combinatorial reconstruction (cont.)

• Can each individual appear more than once?
• No the primary case
• Yes the non-primary case
• Some possible reconstructions

The primary case
The non-primary case
32
Combinatorial reconstruction (cont.)

• Can each individual appear more than once?
• No the primary case
• Yes the non-primary case
• Some possible reconstructions

The primary case
The non-primary case
33
Breach probability (primary)

• Totally 120 possible reconstructions
• If Andy is associated with a stomach disease in
  nb reconstructions
• The probability that the adversary should
  associate Andy with some stomach problem is nb /
  120
• Andy is associated with
• gastric ulcer in 24 reconstructions
• dyspepsia in 24 reconstructions
• gastritis in 0 reconstructions
• nb 48
• The breach probability for Andys tuple is 48 /
  120 2 / 5.

34
Breach probability (non-primary)

• Totally 625 possible reconstructions
• Andy is associated with gastric ulcer or
  dyspepsia or gastritis in 225 reconstructions.
• nb 225
• The breach probability for Andys tuple is
• 225 / 625 9 / 25

35
A defect of personalized anonymity

• Does not guard against background knowledge.
• Recall that l-diversity can achieve this purpose.
• But it seems possible to adapt the personalized
  approach to tackle background knowledge.
• Future work?

36
Other privacy principles

• k-gather.
• Due to Aggarwal et al., PODS, 2006
• Suffers from the problems of k-anonymity.
• (a, k)-anonymity
• Due to Wong et al., KDD, 2006
• t-closeness.
• Recently proposed by Li and Li, ICDE, 2007

37
Issues

• Privacy principle
• What is adequate privacy protection?
• Distortion approach
• How to achieve the privacy principle?

38
Three approaches

• Suppression
• We do not discuss it because
• the utility of the resulting table is low
• it can be regarded as a special case of
  generalization.
• Generalization
• Due to Sweeney, International Journal on
  Uncertainty, Fuzziness and Knowledge-based
  Systems, 2002
• Anatomy (also called bucketization)
• Due to Xiao and Tao, VLDB, 2006
• Each of the above approaches can be integrated
  with all the privacy principles discussed
  earlier.

39
A multidimensional view of generalization
40
Taxonomy of generalization
LeFevre et al. SIGMOD, 2005

• Local recoding
• (Generalized) rectanglesmay overhalp.
• Suppression is a special caseof local recoding.
• Global recoding
• All rectangles are disjoint.

41
Taxonomy of generalization (cont.)

• Global recoding can be further divided.
• Single-dimension recoding
• Rectangles form a grid.
• Multi-dimension recoding
• The opposite of single-dimension recoding.

42
Taxonomy of generalization (cont.)

• Single-dimension recoding can be further divided.
• Full-domain recoding
• Full-subtree recoding
• Both assume a hierarchy on each QI attribute.
• Example A hierarchy on Age

43
Taxonomy of generalization (cont.)

• Full-domain recoding
• All age values must be generalized to the same
  level of the hierachy.

44
Taxonomy of generalization (cont.)

• Full-subtree recoding
• The subtrees of all generalized values must be
  disjoint.
• Permissible generalization
• 1, 30, 31, 40, 41, 50, 51, 60, 61, 90.
• Illegal generalization
• 1, 10, 1, 30, 31, 60, 61, 90.

45
Why all these generalization types?

• Reason 1If a dataset is generalized in a more
  restricted manner, less preprocessing is required
  before it can be analyzed by a standard
  statistical tool (such as SAAS).

46
Why all these generalization types?

• Reason 2 More restrictive generalization is
  usually faster to compute and easier to analyze.

47
Why all these generalization types?

• Reason 3 Less restrictive generalization
  promises more accurate data analysis, provided
  that a sophisticated analytical method is used.

48
Generalization algorithms

• Operate on a quality metric. Examples
• The generalization level (for full-domain
  recoding)
• Total rectangle size (for local recoding)
• Mostly heuristics-based.
• Finding the optimal generalization is oftenNP
  hard.

49
Defect of generalization

• Query A SELECT COUNT() from Unknown-Microdata
• WHERE Disease pneumonia AND Age in 0, 30
• AND Zipcode in 10001, 20000

• Estimated answer 2p, where p is the probability
  that each of the two tuples satisfies the query
  conditions on the Age and Zipcode.

50
Defect of generalization (cont.)

• Query A SELECT COUNT() from Unknown-Microdata
• WHERE Disease pneumonia AND Age in 0, 30
• AND Zipcode in 10001, 20000
• p Area(R1 n Q ) / Area(R1) 0.05
• Estimated answer for Query A 2p 0.1

51
Defect of generalization (cont.)

• Query A SELECT COUNT() from Unknown-Microdata
• WHERE Disease pneumonia AND Age in 0, 30
• AND Zipcode in 10001, 20000
• Estimated answer 0.1

• The exact answer 1

52
Defect of generalization (cont.)

• Cause of inaccuracyQI distribution inside each
  QI group is lost!

53
Anatomy

• Releases a quasi-identifier table (QIT) and a
  sensitive table (ST).

Sensitive table (ST)
Quasi-identifier table (QIT)
Microdata
54
Anatomy (cont.)

• 1. Decide an l-diverse partition of the tuples.

QI group 1
QI group 2
A 2-diverse partition
55
Anatomy (cont.)

• 2. Generate a quasi-idnetifier table (QIT) and a
  sensitive table (ST) based on the selected
  partition.

group 1
group 2
quasi-identifier table (QIT)
sensitive table (ST)
56
Anatomy (cont.)

• 2. Generate a quasi-idnetifier table (QIT) and a
  sensitive table (ST) based on the decided
  partition.

quasi-identifier table (QIT)
sensitive table (ST)
57
Privacy preservation

• Given a pair of QIT and ST generated from an
  l-diverse partition, an adversary can infer the
  sensitive value of each individual with
  confidence at most 1 / l.

sensitive table (ST)
quasi-identifier table (QIT)
58
Data analysis

• Query A SELECT COUNT() from Unknown-Microdata
• WHERE Disease pneumonia AND Age in 0, 30
• AND Zipcode in 10001, 20000

Sensitive table (ST)
Quasi-identifier table (QIT)
59
Data analysis (cont.)

• Query A SELECT COUNT() from Unknown-Microdata
• WHERE Disease pneumonia AND Age in 0, 30
• AND Zipcode in 10001, 20000
• 2 patients contracted pneumonia
• 2 out of 4 patients satisfy the query conditions
  on Age and Zipcode
• Estimated answer 2 2 / 4 1.

t1t2 t3 t4
60
A defect of anatomy

• Existence breach Does an individual exist in the
  microdata?

61
Future work

• Re-publication
• Tackle stronger background knowledge
• Recent work Martin et al., ICDE, 2007
• Improving utility
• Pioneering work Kifer and Gehrke, SIGMOD, 2006
• Application to specific (non-trivial)
  applications
• Location privacy
• Pioneering work Mokbel et al., VLDB, 2006
