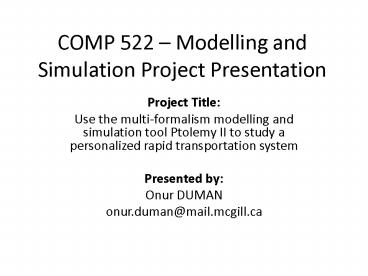

COMP 522 Modelling and Simulation Project Presentation

1
COMP 522 Modelling and Simulation Project
Presentation

• Project Title
• Use the multi-formalism modelling and simulation
  tool Ptolemy II to study a personalized rapid
  transportation system
• Presented by
• Onur DUMAN
• onur.duman_at_mail.mcgill.ca

2
Motivation

• Project was done using multi modelling and
  formalism tool Ptolemy II
• Transportation System Trains which are
  travelling between terminals.
• Both time concept and event concept are taken
  into account during modelling

3
Motivation(2)

• Usage of Modal Model feature of Ptolemy II
• Simulation will be done by getting a trace of
  locations that the train has passed
• State of train is mainly dependent on location of
  train

4
Proposal/Requirements

• Four trains and six stations.
• Each train has an initial location given at the
  start
• Train can depart if there is no train 100 yards
  front of the train

5
Proposal/Requirements(2)

• Train will go with its maximum speed unless there
  is another train within 80 yards after the train
• Trains follow a circular track
• Each train has a passenger button

6
Proposal/Requirements(3)

• If train stops at a station, it will wait 90
  seconds before the next departure.
• If there are no trains within 100 yards of the
  train, it will depart

7
DesingAndModels

• Both Statecharts and Block Diagrams are used
• Firstly, simple functional blocks, which will be
  used for complicated tasks are modeled

8
DesignAndModels(2) - TrainDistanceComparator
9
DesignAndModels(3) - TrainComparisonUnit
10
DesignAndModels(4) - ComparisonUnitForShortDistanc
e
11
DesignAndModels(5) - TerminalDistanceAndNumber
12
DesignAndModels(6) - TrainModel
13
DesignAndModels(7) - TrainFunction
14
DesignAndModels(8) - TrainRunning
15
DesignAndModels(9) A Simple Delay
16
DesignAndModels(10) Operation for Passenger
Button
17
DesignAndModel11 - CompleteModel
18
Implementation

• Performed using Ptolemy II tool
• Each model discussed above is implemented as a
  seperate file instead of simple units So, 6 XML
  Files
• completeTrainModel.xml
• terminalDistanceAndNumber.xml
• trainComparisonUnit.xml
• trainDistanceComparison.xml
• trainModel.xml
• trainShortDistanceComparison.xml

19
Experiments

• Two experimental configurations
• Firstly, train initially at position 195, it is
  scheduled to stop at station 4, but a passenger
  requests to stop at station 1 by pushing the
  button but after stopping for 90 seconds, train
  can not continue because there is another train
  at 300( stopped train is at 200)

20
Experiments(2)
21
Experiments(3)

• Outputs
• Train Locations
• 196 197 198 199 200 200 200 200 200 200 200
• Train Next Stations 4 4 4 1 1 1 1 1 1 1 ( at
  fourth iteration a passenger requested to stop at
  station 1( nearest station) )

22
Experiments(4)

• Train is at location 195 initially, stops at
  station located at 200, and after stopping
  continues its travel because there is no train
  after 100 yards from the train.

23
Experiments(5)
24
Experiments(6)

• Output
• Train Locations
• 196 197 198 199 200 200 200 201 202 203 (After
  stopping at station 1, train can continue its
  travel)
• Train Next Stations
• 0 0 0 1 1 1 1 1 1 1 ( at fourth iteration a
  passenger requested to stop at station 1( nearest
  station) )

25
Conclusion

• Study of public transportation system using
  Ptolemy II
• Trains travel counterclockwise and if there is a
  passenger is going to get off at the next
  station, the train stops at the station
• Train maintains its speed according to its
  distance to the train in front of it

26
Conclusion(2)

• State of the train and variables of the train(
  location and next station) change according to
  location of train and calculations done according
  to locations of all the trains
• Delay was introduced in order to simulate stop at
  station

27
Live Demo

• A demo of experiment 1 and experiment 2

28
References

• Transportation System inspired from the article
• Executable Object Modelling with Statecharts
• http//ieeexplore.ieee.org/iel1/2/13072/00596624.p
  df?isNumber13072
• Ptolemy II Documentation and Tutorials
• http//ptolemy.berkeley.edu/ptolemyII/

29
Thanks for Listening

• Any questions?
• Any comments?
