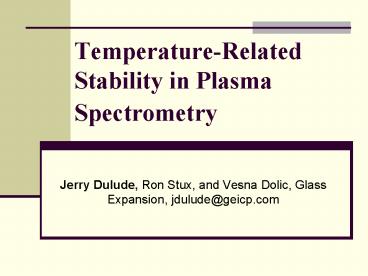

TemperatureRelated Stability in Plasma Spectrometry

1
Temperature-Related Stability in Plasma
Spectrometry

• Jerry Dulude, Ron Stux, and Vesna Dolic, Glass
  Expansion, jdulude_at_geicp.com

2
Causes of Signal Drift in ICP-OES
Cause
Solution

• Optical drift
• RF instability
• Sample related baseline shift
• Matrix variations
• Drift in sample intro temperature

• Profiling thermostat
• Feedback loop
• Background correction
• Internal std. or matrix matching
• ????????

3
IsoMist Programmable Temperature Spray Chamber
(PTSC)
4
IsoMist Characteristics

• Programmable from -10 to 60C in 1 degree
  increments
• Maintains temperature to within 0.1 degree
• Built-in Peltier device
• No external plumbing
• Temperature measured near the chamber surface

5
IsoMist on Optima 2100DV
6
PE 2100DV Standard Parameters

• Power 1450 watts
• Coolant gas 15LPM
• Aux. gas 0.2LPM
• Quartz injector, 1.8mm bore
• Neb. Gas 0.7LPM
• SeaSpray concentric glass nebulizer (1ml/min)
• IsoMist Programmable Temperature spray chamber
  with Twister Baffled Cyclonic

7
Intensity vs. Temperature-PE 2100DV(1ml/min
uptake)
8
Temperature Plots on PE 2100DV
31 increase from 10 to 25C or 2 per degree C
31 increase from 25 to 35C or 3 per degree C
9
Temperature Plots on PE 2100DV
10
Temperature Plots on PE 2100DV
Avg. suppression of all lines
Interference std 1000ppm Na K, 500ppm Ca
11
Temperature Plots on PE 2100DV
Avg. suppression of all lines
Avg. suppression of ion lines
Interference std 1000ppm Na K, 500ppm Ca
12
IsoMist on the Varian Vista MPX
13
Varian Vista MPX Standard Parameters

• Power 1300 watts
• Coolant gas 15LPM
• Aux. gas 1.5LPM
• Quartz injector, 2.3mm bore
• Neb. Gas 0.8LPM
• SeaSpray concentric glass nebulizer (0.4ml/min)
• IsoMist Programmable Temperature spray chamber
  with Twister Baffled Cyclonic

14
Effect of Spray Chamber Temperature on Intensity
(Varian Vista MPX)
15
Effect of Temperature on IntensityVarian Vista
MPX
10 increase from 20 to 25C or 2/degree C
16
Effect of Spray Chamber Temperature Varian
Vista MPX
Transport Efficiency
Avg. Intensity
17
Varian Vista MPX Parameters

• Power 1300 watts
• Coolant gas 15LPM
• Aux. gas 1.5LPM
• Quartz injector, 1.8mm bore
• Neb. Gas 0.8LPM
• SeaSpray concentric glass nebulizer (0.4ml/min)
• IsoMist Programmable Temperature spray chamber
  with Twister Baffled Cyclonic

18
Temperature vs. Intensity (Varian Vista MPX-
1.8mm bore)
19
Temperature vs. Intensity (Varian Vista MPX)
1.8mm bore
2.3mm bore
10 decrease from 20 to 40C or 0.5 per degree C
29 increase from 10 to 40C or 1 per degree C
20
Low Sample Uptake Applications

• Biological applications
• Intracellular fluids
• Neonatal samples
• Forensic applications
• Speciation (HPLC-ICP-MS)
• Radioactive wastes reduction
• Low DLs desirable

21
Effect of Temperature on Normalized Intensity (20
uL/min uptake rate)
PE Optima 2100DV
22
Effect of Temperature on Intensity20ul/min
uptake rate
Avg. Intensity
Estimated Transport Efficiency
133 increase from 21 to 40C or 7 per degree C
23
Spray Chamber Temperature Impact

• High impact with respect to intensity
• Interdependent with other plasma parameters
• Provides another dimension for optimization
• Must remain constant during the experiment

24
Constant temperature benefits(1ml/min sample
uptake)

• Higher accuracy
• Higher productivity
• Greater reproducibility
• Better experiments
