Title: Engineering Details of a Stable ForceDirected Placer


1

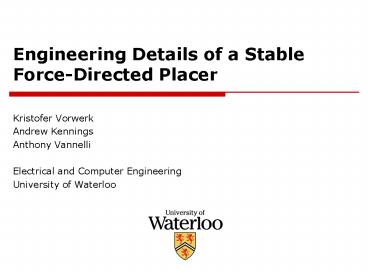

Engineering Details of a Stable Force-Directed
Placer
  • Kristofer Vorwerk
  • Andrew Kennings
  • Anthony Vannelli
  • Electrical and Computer Engineering
  • University of Waterloo

2
Outline
  • Introduction
  • Implementation Details
  • Force Computation
  • Assessment of Cell Spreading
  • Stability Problems
  • Improving Quality
  • Median Improvement
  • Dynamic Force Weighting
  • Numerical Results
  • Conclusion

3
Introduction
  • Force-directed placement is a placement
    methodology with two main thrusts
  • Quadratic optimization to pull connected cells
    together.
  • Addition of separating forces (like Coulomb
    forces) to push cells apart.
  • Force-directed placement is of interest because
    ...
  • It is generic (mixed-size blocks are handled
    seamlessly).
  • It can be augmented to handle interesting
    problems, like physical re-synthesis.
  • From an academic standpoint, it remains a
    relatively untapped means of placement.

4
Background (1 of 3)
  • Assuming cell overlap is allowed, we can keep
    connected cells together via the solution of a
    quadratic program (x-direction only)
  • Matrix Q (the Hessian) is a result of connections
    between pairs of movable cells.
  • The cost vector, c, is a result of connections
    between movable cells and fixed cells (e.g., I/O
    cells). The constant, d, is simply discarded.

5
Background (2 of 3)
  • The benefit of the QP formulation is that its
    solution is simple and fast, obtained by solving
    a single linear system
  • Its disadvantage is that the resultant placement
    is highly overlapping.

6
Background (3 of 3)
  • Cells must be encouraged to spread throughout the
    placement area.
  • We can perturb the optimality conditions by
    adding spreading forces.
  • That is, we solve a sequence of optimization
    problems where each has a solution given by
    solving a single system of equations
  • Continue until cells are distributed throughout
    the placement area.

7
Force-Directed Placement Caveats
  • Some aspects of force-directed placement have not
    been well discussed in the literature
  • How to efficiently compute spreading forces?
  • How to know when to stop placement?
  • How to deal with potential instability issues?
  • How to achieve high-quality results on-par with
    other modern approaches (like simulated annealing
    or min-cut partitioning)?

8
Implementation Force Computation (1 of 3)
  • How do we compute forces on individual cells to
    achieve a uniform distribution of cells
    throughout the placement area?
  • Use ideas from n-body simulation (Barnes-Hut Quad
    Tree).
  • We begin by building a Quad Tree over the
    placement area

9
Implementation Force Computation (2 of 3)
  • Prior to each placement iteration, we do the
    following
  • Given the current placement of cells, insert cell
    area into the Quad Tree.
  • Using Barnes-Hut computation (interaction lists,
    near neighbors, etc.) compute the force on each
    bin in the lowest level of the Quad Tree.
  • Compute the force on each cell by summing the
    forces on the bins with which the cell overlaps.
  • This provides a force on each cell.
  • The Quad Tree also tracks the distribution of
    cell area throughout the placement region in
    different granularities. This is useful later

10
ImplementationForce Computation (3 of 3)
  • It is necessary to somehow scale the forces on
    cells.
  • Large cells overlap with more bins in the lowest
    level of the Quad Tree and therefore tend to
    receive larger forces.
  • Large cells can (potentially) get pushed too
    much, too soon.
  • We employ the simple scaling scheme of dividing
    the force on each cell by roughly the number of
    bins it overlaps.
  • Finally, we normalize so that the largest force
    is equal to unity.

Scaling forces results in more uniform force
magnitudes on individual cells.
11
ImplementationOverlap Assessment
  • It is important to assess the distribution of
    cells throughout the placement area as the
    algorithm progresses
  • Need to know when to stop.
  • Need to know if any problems arise (e.g., a
    re-collapsing of cells onto each other).
  • Two metrics developed for overlap assessment
  • Capacity vs. occupancy.
  • Measurement of overlap.

12
ImplementationCapacity/Occupancy Metric
  • First metric measures capacity violations using
    the Quad Tree employed earlier to compute
    spreading forces.
  • Scans each bin (i,j) in each level l of the Quad
    Tree and computes
  • Found to provide a good global assessment of
    overlap, but poor measure near the end of the
    algorithm.

13
ImplementationKlees Measure
  • Second metric uses a O(n log n) plane-sweep
    algorithm to assess overlap.
  • Divides area of the union of cells by total cell
    area.
  • Found to be poor early in placement (simply too
    much overlap), but very accurate toward the end
    of placement.
  • We combine the two metrics to accurately monitor
    cell distribution.
  • Area of cells individually is 188 units, and the
    area of their union is 170 units.
  • 170/188 0.90, or 10 overlap

14
ImplementationStability (1 of 3)
  • Placements would occasionally collapse back onto
    itself indicating some sort of problem.
  • The algorithm would recover, but required
    additional iterations.
  • The problem, it turns out, has to do with the
    conditioning of the Hessian.
  • I.e., placement de-stabilization only occurred on
    some benchmarks that proved to have poorly
    conditioned matrices.

15
ImplementationStability (2 of 3)
  • Comparing optimality conditions for two
    consecutive placement iterations implies changes
    in node positions are given by
  • Conditioning can be improved by adding positive
    entries along the diagonals of Q i.e.,
  • The diagonal entries correspond to zero-area
    fixed cells that move along with their associated
    real cell.
  • These zero area cells cause the real cells to
    favor following their spreading force and are
    like friction.

16
ImplementationStability (3 of 3)
  • Empirically, it has been found that friction
    need only be applied to 5 of the least
    diagonally dominant rows (columns) of Q.
  • Does not appear to inversely impact the quality
    of results, while helping to stabilize the
    placement.
  • Side benefit of improving the convergence of the
    iterative solver.
  • We were only able to implement this stabilization
    method because of the reliability of assessing
    cell overlap via previously described heuristics.
  • It is the assessment of overlap via the metrics
    that allow for the detection of the instability
    problem in the first place.

17
Improvements
  • The aforementioned ideas were implemented, and
    placements were obtained reliably.
  • Results, however, were not comparable with other
    state-of-the-art placement methods based on
    Simulated Annealing and/or Min-Cut Partitioning
    (off by about 7 to 10).
  • Results were, however, comparable to other
    force-directed methods (e.g., Kraftwerk).
  • Our force-directed placement method needed some
    updating in order to be considered
    state-of-the-art.

18
ImprovementsBoxPlace (1 of 3)
  • Hypothesis was that there was a left/right
    problem with cells.
  • Solving the global QP provides only approximate
    information regarding cell positions.
  • Furthermore, due to spreading forces, it can be
    hard for cells to cross paths.

B
C
A
Cells A and B connected attractive force pulling
A towards B. Cell C creates an obstacle causing
a force keeping A and B apart.
19
ImprovementsBoxPlace (2 of 3)
  • Idea of median improvement is
  • Pick a candidate cell and its connected edges.
  • Compute the min/max position of each edge,
    ignoring the current cell.
  • Find the median location.
  • Move the candidate cell into the box.
  • Overcomes blocking cells improves final
    results by several percent.
  • In doing these movements, need to carefully
    monitor overlap to avoid re-introducing too much
    overlap.

20
ImprovementsBoxPlace (3 of 3)
  • Another method to improve wire length is to
    modify the spreading forces directly using the
    target location from a hypothetical application
    of median improvement.
  • Re-orient the forces (somewhat) so that they
    point not only in the direction of overlap
    removal, but also in the direction of wire length
    minimization.
  • We combine the forces in a 60/40 mix (in favor
    of spreading).
  • More iterations are required, however, for the
    placement to converge.

21
ImprovementsDynamic Force Weighting
  • Recall the perturbed optimality conditionsforces
    are added in each iteration with a weight a
  • Other force-directed placers appear to use a
    constant weighting we have found that this does
    not work too well.
  • We have found that dynamically adapting weights
    is important.
  • Weighting starts off very low, increases as cells
    spread, and decreases if instability is detected.
  • In effect, we implement a state-machine (FSM)
    that adapts weights according to the assessment
    of cell spreading.

22
Numerical Results (1 of 4)
Mixed-size IBM benchmark statistics (from Adya
Markov)
23
Numerical Results (2 of 4)
  • We compare to Kraftwerk, another force-directed
    placer, using the ISPD2002 mixed-size benchmarks.
  • HPWL results show a fairly uniform improvement
    across designs.
  • Prior to enhancements using median improvement,
    we were about 1.0 with Kraftwerk.
  • Runtimes are comparable (but are on machines of
    slightly different speeds).

Note FDP results presented here are legalized
(i.e., no overlap). Kraftwerk results are not
legal.
24
Numerical Results (3 of 4)
  • We also compare to Capo 8.0 flows and mPG on
    mixed-size circuits.
  • Note that placements from Capo Flow 2-A contain
    some overlap.
  • Our quality is on-par with Capo 8.0 Dragon for
    standard cells.

25
Numerical Results (4 of 4)
  • We have since improved our tools handling of
    mixed-size designs.
  • These results are obtained using recent
    modifications.
  • Quality of results comparable to Capo 9.0 (though
    runtime is higher).

26
Conclusions
  • Presented numerous details regarding the
    implementation of force-directed placement.
  • Numerical results of the first generation tool
    were comparable to state-of-the-art.
  • Some additional work has since taken place which
    now yields 13 better HPWL on mixed-size
    designs. This is comparable to the latest Capo
    9.0 flow.
  • Work is continually being done to improve quality
    and performance.
  • Source code is freely available for academic use,
    and can be downloaded at http//gibbon.uwaterloo.
    ca
