CISC 372 5 October

1

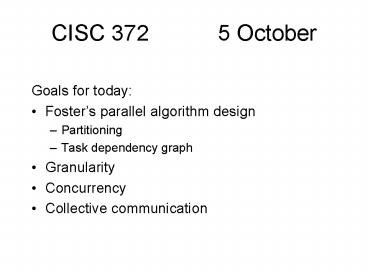

CISC 372 5 October

• Goals for today
• Fosters parallel algorithm design
• Partitioning
• Task dependency graph
• Granularity
• Concurrency
• Collective communication

2
Task/Channel Model
3
Parallel Algorithm Design

• Large problem
• May be complex
• May have large data set
• May be embarrassingly parallel
• How solve problem? (Fosters Methodology)
• Partition problem data
• Determine communication requirements
• Agglomerate tasks into more efficient size
• Map tasks to processors

4
Fosters Methodology
5
Partitioning

• Dividing computation and data into pieces
• Domain decomposition
• Divide data into pieces
• Determine how to associate computations with the
  data
• Functional decomposition
• Divide computation into pieces
• Determine how to associate data with the
  computations

6
Partitioning Checklist

• At least 10x more primitive tasks than processors
  in target computer
• Minimize redundant computations and redundant
  data storage
• Primitive tasks roughly the same size
• Number of tasks an increasing function of problem
  size

7
Fosters Methodology
8
Communication

• Determine values passed among tasks
• Local communication
• Task needs values from a small number of other
  tasks
• Create channels illustrating data flow
• Global communication
• Significant number of tasks contribute data to
  perform a computation
• Dont create channels for them early in design

9
Communication Checklist

• Communication operations balanced among tasks
• Each task communicates with only small group of
  neighbors
• Tasks can perform communications concurrently
• Task can perform computations concurrently

10
Fosters Methodology
11
Agglomeration

• Grouping tasks into larger tasks
• Goals
• Improve performance
• Maintain scalability of program
• Simplify programming
• In MPI programming, goal often to create one
  agglomerated task per processor

12
Agglomeration to Improve Performance

• Eliminate communication between primitive tasks
  agglomerated into consolidated task
• Combine groups of sending and receiving tasks

13
Agglomeration Checklist

• Locality of parallel algorithm has increased
• Replicated computations take less time than
  communications they replace
• Data replication doesnt affect scalability
• Agglomerated tasks have similar computational and
  communications costs
• Number of tasks increases with problem size
• Number of tasks suitable for likely target
  systems
• Tradeoff between agglomeration and code
  modifications costs is reasonable

14
Fosters Methodology
15
Mapping

• Process of assigning tasks to processors
• Centralized multiprocessor mapping done by
  operating system
• Distributed memory system mapping done by user
• Conflicting goals of mapping
• Maximize processor utilization
• Minimize interprocessor communication

16
Mapping Example
17
Optimal Mapping

• Finding optimal mapping is NP-hard
• Must rely on heuristics

18
Mapping Checklist

• Considered designs based on one task per
  processor and multiple tasks per processor
• Evaluated static and dynamic task allocation
• If dynamic task allocation chosen, task allocator
  is not a bottleneck to performance
• If static task allocation chosen, ratio of tasks
  to processors is at least 101

19
Complex Mesh Decomposition

• Mesh Cube With
• Hollow Sphere inside

Cross-section of Cube

• Finite number of tetrahedra
• Each tetrahedron varies in size

20
Tetra-he-who?

• Tetrahedron A solid having four triangular faces

Maybe not this.
This is a tetrahedron.
21
Static Task Number,Unstructured Comm,
Partitioned with METIS

• Mesh Cube

22
Edge Detection

• Finite number of pixels
• All pixels same size
• All pixel values constrained (0-255)
• Stencil computation

23
Electromagnetic Fields

• Rough surface sphere
• Radiation source at center
• Measure strength on surface

• Finite number of points
• Laplacian equation (Jacobi method - iterate until
  converge on solution)
• Convergence time varies at each point

24
Parallel Tree Search

• Unbalanced tree
• Nodes may change from active to inactive at any
  time
• Searching for specific object in set of all
  active nodes

25
Online Sort

• Receive list in separate pieces at different
  times (constant update)
• Keep list sorted at all times
