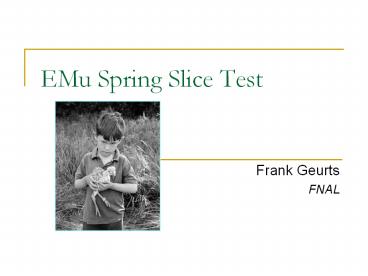

EMu Spring Slice Test

1
EMu Spring Slice Test

• Frank Geurts
• FNAL

2
Magnet Test / Cosmic Challenge

• one 60 trigger sector
• 36(39) chambers
• provided electronics available
• otherwise 24 CSCs
• Sector 5, overlap with DT sectors 1011
• Trigger self-trigger or external
• TrackFinder crate in counting house
• FED prototype FED or production
• FED crate in counting house
• 1(2) DCC 3 DDUs

3
EMu Slice Test

• Preparations towards the Magnet Test, and beyond

• Starting at YE2, add chambers when electronics
  comes available
• Add chambers from other stations ME1 and ME4
• Integrate with other CMS systems
• Central DAQ
• Local Trigger Control for Cosmic Challenge
• Develop and test software
• Local DAQ
• Timing routines
• DCS, DQM
• FAST-site tests
• dBase
• Offline/Reconstruction

4
Spring Test Set-Up

• At SX5, on or near YE2
• Peripheral Crate based on std. VME crate. Using
  a rev-1 6U backplane.
• Fully equipped with 9 production DMBs, 9 (old)
  TMBs, pre-production MPC and CCB, and Dynatem
  Crate Controller
• Connected to 6 CSCs, forming a 20 slice on ME2
  and ME3
• Fiber patch panel for DAQ/Trigger/TTC fibers
• Local control PC for Dynatem/iBoot

5
Spring Test Chambers on YE2
6
Spring Test Peripheral Crate
ME3
ME2
YE2 ME2 and ME3 CSCs in the same crate Slot
assignments done according to Ben Bylsmas
document.
7
Spring Test Set-Up (contd)

• In the Counting House (a.k.a. Green Barrack)
• Trigger Clock
• TTC Electronics TTCvi TTCvx, external clock
  patch
• TrackFinder Electronics
• Additional NIM electronics
• Control PC
• DAQ
• pFED and prototype FED crate
• Local DAQ PC
• S-Link to Central DAQs FRL
• DQM
• Local DQM server

8
Spring Test Counting House (I)

• TTCvi/vx
• courtesy of OSU
• CAEN v1718 USB-VME bridge
• Fiber patch panel
• Counterpart at YE2
• TrackFinder Crate
• SP02, CCB01

TTC
fibers
TF
9
Spring Test Counting House (II)

• NIM electronics
• Level conversion
• Allow for addl modules for trigger manipulation
• pFED crate
• Old DDU with small peripheral backplane
• S-Link feed to CMS DAQ
• Spy feed to Local DAQ
• Local DAQ, Trigger and DQM control PCs

NIM
DAQ
DQM
TRG
FED
10
Schematic Layout
11
Trigger, TTC and DAQ Paths
Trigger Path
TTC Path
Local DAQ Path
Global DAQ Path
12
Spring Slice Test Scope Goals

• One of the stepping stones towards the Cosmic
  Challenge
• 2nd half of April
• Announced at our previous EMu Meeting
• Infrastructure ready (fibers, counting house,
  etc.)
• except for rack cooling in the Counting House
• Experts invited
• Connect and time-in 6 CSCs
• Self-trigger on cosmics using TF
• Provide data to Central DAQ

13
Spring Slice Test where are we?

• TF/SP details, see Dans presentation
• Updated/verified firmware on all CFEBs and DMBs
• Jason
• Updated firmware on all TMBs and ALCTs
• Yuri/FG
• ALCT firmware is now uploaded via the TMB, using
  the PeripheralCrate library
• Documentation available at our website
• ALCT mirrored firmware on ME3 chambers,
  specially updated and tested for Slice Test by
  Alex M.
• Fully loaded rev.1 peripheral backplane resulted
  in communication problems with the ALCTs
• Temporary removing 6 out of 9 TMB/DMB pairs
  alleviates the problem
• Reintroduce after first CSCs are completely set-up

14
Spring Slice Test where are we? (II)

• TTC electronics
• Both TMB and SP timing tests showed intermittent
  response to B-Go commands
• Initially observed single-bit shifts of CCB
  commands in the TTC B-channel, where double-bit
  shifts were expected
• Occasional single and double errors at the TTCrq
• Traced back to incorrect A and B-channel timing
  between TTCvi and TTCvx (thanks to Jan T.)
• First stab at internal Slice Test note on TTC
  configuration for future reference.
• Available at our website

15
CSC Timing

• Synchronization is pretty hard
• from J. Hausers summary at the FNAL EMu
  Meeting
• Conceptual Manual exists
• Recently updated powerpoint presentation
• First step
• adjust clock phases between TMB and CFEB
• Adjust TX and RX clock phases between TMB and
  ALCT
• Requirements
• Up-to-date ALCT configuration software
• tmbtiming.exe command line package which sets up
  and executes automated timing procedures
• To be replaced by a dedicated TMBtiming class
• useable through the XDAQ interface
• Second Step already requires L1As in the system
• Will be provided by TF/SP

16
CSC Timing (II)

• First step is done for all 6 chambers
• Use DMB/CFEB pulser to find optimal TMB-CFEB
  clock phase
• Use ALCT test strip pulsing to find optimal
  TMB-ALCT tx/rx clock phases
• Second step requires L1As
• Generate ghost tracks and have the MPC send two
  muon candidates to the SP
• Work in progress See Dans presentation
• Last week, we saw the first L1As travel through
  our systems
• Albeit at very low rate.
• But, this is an important step!

17
CSC Timing (III)

• Next steps
• L1A timing at CFEBs
• Adjust various timing windows
• See Jay Hausers FNAL presentation
• Update TMBtiming class
• will eventually contain all timing methods
• Create detailed documentation
• CMS Internal Note on EMu timing

18
Calibration Local DAQ

• Calibration
• See Alexs presentation
• Uses DAQMB/CFEB pulser
• Triggered by TTC B-Go or CCB
• Adjusted DAV windows
• Part of the FAST site test suite that needs to be
  ported to the PeripheralCrate Library
• New CalibDAQ class available in TriDAS/emu
  repository
• Local DAQ
• Similar to Beam Tests DDU spy channel into
  emuslice02
• Used to retrieve Calibration data at the Slice
  Test
• And, is likely to be needed for all other FAST
  site tests
• DDUReadout/HardwareDDU classes to retrieve data
• HardwareDumper command-line, for testing
  purposes
• EmuRUI (preferred method) XDAQ-based, DQM hooks

19
EMu Central DAQ

• S-Link cable connectes DDU/DCC to FRL (CMS-DAQ)
• FRL connects us to a CMS DAQ column
  (RUI/RU/BU/FU)
• Successful first tests
• 1309 events recorded by FRL and local spy channel
• Important milestone for EMU and CMS-DAQ
• First CMS subsystem to provide data to DAQ!

FRL crate (counting house)
Myrinet switch (counting house)
20
EMu Central DAQ (II)

• After the first 1309 events, we ran a 100k
  single-chamber calibration run
• Event counts identical
• CRC checks agree
• Next,
• Very long run (this weekend)
• CRC verification
• Increase event size (this weekend)
• Add more chambers
• Variable event size
• Use cosmics data
• Pass data on to a simple DAQ column

Franks Laptop
Robertas Desktop
21
Whats next?

• After Spring comes Summer Test
• Continue timing efforts
• Integrate trigger with Cosmic Challenge Local
  Trigger Control
• Introduce 2nd Peripheral Crate and separate ME2
  and ME3 chambers out. Use 2nd MPC feed to SP.
• Need more (old) TMBs
• Introduce OSU Crate Controllers
• XDAQv3 migration
• EMu Slice Test Workshop July 11 15 at CERN
• Discuss our Summer Plans
• I sent out to the EMu SliceTest mailing list a
  personal and likely incomplete list of tasks
  relevant to the Slice Test
• E.g. draft and discuss the CMS Internal Note on
  CSC timing

22
Summary

• With the Spring Test, the Slice Test is now well
  under way
• Many thanks to all who have helped and still do!
• 6 CSCs are hooked up and have been operational
  throughout ever since the Spring Test
• Fiber duct installation
• Timing of the chambers partially done
• Not as fast as we hoped, but
• this is a more complicated procedure than at
  the TBs
• Self-trigger no external trigger source
• EMu first CMS sub-detector to provide data to
  Central DAQ
• Summer Plans
• July Workshop at CERN
• Integrate with Cosmic Challenge LTC
• Webpage http//cern.ch/EmuSliceTest

23
A Glossary of Acronyms

• ALCT - Anode Local Charged Track
• BU Builder Unit
• CCB Clock Control Board
• CFEB Cathode Front-end Board
• CMS Compact Muon Solenoid
• CRC Cyclic Redundancy Check
• CSC Cathode-Strip Chamber
• DAQ Data Acquisition
• DCC Data Concentrator Card
• DCS Detector Control System
• DDU Detector Dependent Unit
• DMB DAQ Motherboard
• DQM Data Quality Monitoring
• DT Drift Tube
• EMu End-cap Muon

• FAST Final Assembly Test
• FED Front-end Driver
• FRL Front-end Receiver Link
• FU Filter Unit
• LTC Local Trigger Control
• ME Muon End-cap
• MPC Muon Port Card
• RU Readout Unit
• RUI RU Interface
• SP Sector Processor
• TB Test Beam
• TF Track Finder
• TMB Trigger Motherboard
• TTC Timing, Trigger Control
• VME VERSAmodule Eurocard
