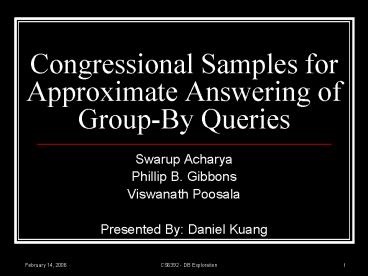

Congressional Samples for Approximate Answering of GroupBy Queries

1
Congressional Samples for Approximate Answering
of Group-By Queries

• Swarup Acharya
• Phillip B. Gibbons
• Viswanath Poosala
• Presented By Daniel Kuang

2
Outline

• Problems with Group-By queries
• Congressional sampling
• Rewriting
• Performance
• Conclusion

3
Problems with Group-By Queries

• Decision support queries routinely segment the
  data into groups.
• For example, a group-by query on the U.S. census
  database could be used to determine the per
  capita income per state. However ,there can be a
  huge discrepancy in the sizes of different
  groups, e.g., the state of California has nearly
  70 times the population of Wyoming.
• As a result, a uniform random sample of the
  relation will contain disproportionately fewer
  tuples from the smaller groups, which leads to
  poor accuracy for answers on those groups because
  accuracy is highly dependent on the number of
  sample tuples that belong to that group.
• Standard error is inversely proportional to vn
  for uniform sample.
• n is the uniform sample random size.

4
Solution (Congressional Sampling)

• Consider US Congress which is hybrid of House
  and Senate.
• House has representative from each state in
  proportion to its population.
• Senate has equal number of representative from
  each state.
• Then apply House and Senate scenario for
  representing different groups.
• House sample Uniform random sampling
  from each group .
• Senate sample Sample an equal number of
  tuples from each group.

5
Solution (Congressional Sampling)

• Consider a relation R with two grouping
  attributes A, and B
• Number of tuples for the groups
• (a1, b1) 3000, (a1, b2) 3000, (a1, b3)
  1500, (a2, b3) -- 2500
• Basic Congress (sample size 100)

6
Solution (Congressional Sampling)
7
Congressional Sampling

• Basic congress sample size allocated to each
  group
• Congress sample size allocated to each group

8
Rewriting

• Query rewriting involves two key steps
• a) scaling up the aggregate expressions and

• b) deriving error bounds on the estimate.
• ScaleFactor be the inverse sampling rate for its
  strata.
• How to associate each tuple with its scalefactor
• a) store the ScaleFactor(SF) with each tuple
  in sample relation
• b) use a separate table to store the
  ScaleFactors for the groups

Relation Rel with two example tuples
9
Rewriting (Integrated Rewriting)
10
Normalized Rewriting
11
Key-normalized Rewriting
12
Nested-integrated Rewriting
13
Performance

• Three Queries
• Grouping on returnflag, linestatus, shipdate
• skewed group sizes z 1.5
• Sample Percentage at 7

14
Performance
15
Performance
16
Performance
17
Performance
Times taken for different sample
percentages Actual query time 40sec
18
Conclusions

• Congressional samples are effective for group-by
  queries with arbitrary group-bys (including none)
