Towards Next generation INCODE

1

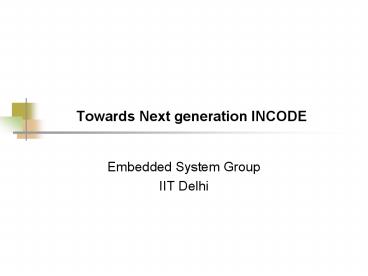

Towards Next generation INCODE

• Embedded System Group
• IIT Delhi

2
Chronology of INCODE

• Early 90s CSE started using FPGA as a part of
  student projects.
• 1995 A regular laboratory curricula was
  introduced.
• 1999 INCODE was developed.
• 2001 To popularize FPGA design among other
  engineering colleges in India the technology was
  transferred to M/S VPL InfoTech and consultant
  Ltd.

3
Motivation behind INCODE development

• A versatile kit which can be used for laboratory
  experiments.
• A Low cost board which can be used as teaching
  aids.
• Incorporate latest techniques and methodologies
  in the curriculum.

4
The INCODE Hardware
5
The INCODE Software
6
A closer look on the Design.
Personal Computer with INCODE Software and
digital hardware design tools
Serial Communication
FPGA
1
8051
2
RAM ROM
Peripheral board
INCODE board
7
Two Major features

• Downloading the bit file to the targeted FGPA
• Foremost task to be performed by the tool is to
  transfer the design to the FPGA, which is
  achieved by downloading the bit file.
• Hardware Software co-design environment.
• Providing ways for hardware software interaction.

8
Downloading the Design on FPGA

• Mode of download
• Slave Serial mode
• FPGA is slave and bit file is serially
  transferred.
• Master Serial mode
• FPGA is Master and bit file is serially
  transferred.
• Select Map Mode
• Bit file is transferred one byte at a time.
• Boundary Scan mode
• Through JTAG cable

9
Slave serial configuration mode flow chart
Source Xilinx datasheet
10
Hardware software Co-Design

• Data can be transferred from the PC to the
  Hardware design in the FPGA.
• Software functions can be downloaded and run on
  the 8051 microcontroller.

11
Why New board design?

• 4000 family FPGA production and support has been
  discontinued.
• Bigger designs can not be implemented.
• Multiplatform Tool.
• To add more features to the tool and keep the
  pace with latest technology.

12
Next version

• Enhancements were continuously done by adding the
  library components and case studies.
• To incorporate the bigger designs the hardware
  was required to upgraded.
• New board with Virtex-E family FPGA was designed
  in 2003.

13
The boards together
14
Problems

• The working version of the software's were
  misplaced.
• The Virtex-E board design did not considered the
  fact that it is a low voltage design.

15
Solutions

• The Firmware for 8051 was re-written.
• Code was written in C using Keil cross compiler.
• Is an application running over on RTOS (RTX51
  Tiny).
• The Hardware was interfaced with a ARM7 based
  microcontroller LPC2129 for configuration.
• Testing is in progress.

16
Requirements for new board

• Advance FPGA
• Advance microcontroller
• Faster communication channel
• Better Co-design environment

17
Few compressions .
18
Proposed Block diagram for new board design
Personal Computer with INCODE new
multiplatform Software and digital hardware
design tools
Parallel/USB Communication
Virtex-E Family FPGA
ARM7 based microcontroller
R A M
RAM
INCODE board
Peripheral board
19
Configuration Select Map Mode

• The selectMAP Mode is the fastest configuration
  option.
• Byte wide data is written into FPGA with a busy
  flag controlling the flow of data.
• An external data source provides the byte stream,
  CCLK, CS, and Write signal. If BUSY is asserted
  high by the FPGA, the data must be held until
  BUSY goes low.
• Data can also be read using the selectMAP mode.

Source Xilinx datasheet
20
LPC2294 ARM7 based 32-bit Microcontroller

• 32-bit ARM7 microcontroller in a 144 pin package.
• 16 KB on-chip static RAM and 256KB on-chip Flash
  program memory.
• In-system programming.
• 112 general purpose I/O pins.
• Low voltage operations.
• On-chip peripherals like 10-bit ADC, 2 serial
  ports, CAN interfaces.

21
Towards next generation INCODE.

• Goals
• Enhanced features.
• Multiplatform Tool.
• Achievements
• Interfaced the Virtex-E with ARM7 based LPC2129
  microcontroller.
• Written Code to configure the FPGA in slave
  serial mode.
• Component study has been done.
• To be done
• Freeze the specifications.
• Detailed design.
• Documentation (Manuals, Website).

22
