Validating Models of Complex Phenomena

1

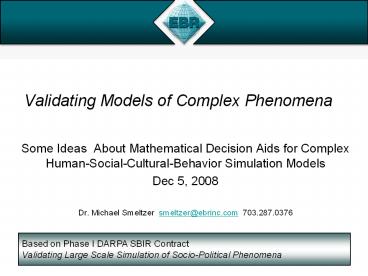

Validating Models of Complex Phenomena

• Some Ideas About Mathematical Decision Aids for
  Complex Human-Social-Cultural-Behavior Simulation
  Models
• Dec 5, 2008
• Dr. Michael Smeltzer smeltzer_at_ebrinc.com
  703.287.0376

Based on Phase I DARPA SBIR Contract Validating
Large Scale Simulation of Socio-Political
Phenomena
2
Agenda

• HSCB models
• Valuable and sometimes very complex
• Not always properly validated
• Validation techniques
• Leverage user/developer/SME expertise and
  expectations
• Address applicability to specific problems
• Traditional sensitivity analysis approach to
  validation
• Visual one-by-one factor analysis
• Simulation of Irish insurgency against the
  British in 1916
• An tool leveraging Bayesian inference for active
  factor screening
• A real simulation, and a real examination of
  alternatives
• Technical details
• Challenges

3
The Opportunities and Challenges Associated with
HSCB Simulations

• Potential for significant contribution
• Identification of the effects of policy on
  alternative economic, social, and political
  futures
• Large and complex
• Hundreds of variables non-linear relationships,
  multiple feedback loops, delays, environmental
  sensitizers or dampeners, potential for emergent
  behavior
• The complexity often results in incomplete
  validation
• Uncertain applicability in specific circumstances
• Not validated over the full range of possible
  configurations and uses
• Lack of credibility may result in user avoidance
• Not trusted, not understood, not used

They Lack Transparency and Credibility
Human, Social, Cultural Behavior
4
Definition of User

• This collective term as used in this presentation
  refers to three different user classes
• Subjects people and possibly processes that run
  simulations and interpret the results
• RD Managers Individuals responsible for
  managing the development of a simulation model
  and ensuring that the product is meaningful and
  useful .
• Developers Model builders responsible for the
  construction of a simulation model under the
  guidance of RD managers and/or Subject Matter
  Experts
• In many cases, the presentation does not
  specifically identify a specific user classes,
  and in fact it often refers to all three.
• To clearly articulate the issues and understand
  the benefits of the approach, it is important to
  reflect on all three classes.

5
Simulation Modelers

• Sometimes they are MS experts
• Sometimes they are social scientists
• Sometimes they are RD managers
• Sometimes they are software engineers
• Sometimes they are just smart people sometimes
  they arent
• Often the models integrate components from
  multiple complex domains
• Sometimes the SMEs are involved sometimes not
• Users are rarely involved often after the fact

6
The Problem

• Modelers make lots of assumptions and create very
  complicated black boxes that model even more
  complex dynamic systems
• COMPOEX
• Around 5000 simulation variables for one exercise
• 1000 equations
• 12,000 19,000 factors
• The science sometimes stops
• Are there scientific techniques that can aid
  users
• Users include subjects, managers, modelers, and
  SMEs
• Validate complex simulations
• Provide users with some confidence that the model
  is viable

7
Agenda

• HSCB models
• Validation techniques
• Traditional sensitivity analysis approach to
  validation
• An tool leveraging Bayesian inference for active
  factor screening
• Technical details
• Challenges

8
Indicators That Help Users Assess Model
Applicability for a Particular Use

• Simulation-produced results agree (or disagree)
  with user expectations
• Changes in an input variable value lead to
  expected (or unexpected) changes in output values
• Factors that drive simulation output agree with
  factors that user believes should be drivers
• Chain of causes and effects within simulation are
  judged appropriate to the situation and problem
  being addressed

User Needs Tools to Help Generate and Explore
Such Indicators
9
Ultimate Goal and Guiding Principles

• Goal To create a method to help a user assess
  simulation applicability for a specific use
• Not a substitute comprehensive validation
  campaign, which may include empirical and
  construct validation
• May also be used to support SMEs and developers
  during and after model development
• Principles
• Treat users mental model as the point of
  reference for judging applicability and validity
  of model
• Help user to apply his subject matter expertise
  without his having to be familiar with model
  algorithms
• Facilitate user evaluation of model applicability
• Loosely-coupled statistical methods to clarify
  important model factors

10
Objective

• Achieve simulation transparency and credibility
• Do it with an automated tool
• Help users explore the simulation results in a
  specific problem context

11
Concept of Operations

• User defines his/her problem, configures the
  simulation, and frames experiment
• Specifies cases to be explored and questions to
  be answered
• Identifies a set of relevant input variables
• Establishes hypotheses about expected outcomes
• Tool provides the following automated services
• Supports systematic variation of input variables
  and examination of output variables
• Identifies the subset of chosen input variables
  and interactions that most influence chosen
  output variables
• Presents information for visual interpretation

12
Agenda

• HSCB models
• Validation techniques
• Traditional sensitivity analysis approach to
  validation
• An tool leveraging Bayesian inference for active
  factor screening
• Technical details
• Challenges

13
Simulation Chosen for Illustration

• Anderson, Edward G. A Preliminary System
  Dynamics Model of Insurgency Management The
  Anglo-Irish War of 1916-21 as a Case Study.
  Proceedings of the 2006 International System
  Dynamics Conference, Nijmegen, the Netherlands.
  March, 2006.
• University of Texas, McCombs School of Business,
  Department of Information, Risk and Operations
  Management.
• Developers employed model to demonstrate the
  potential of using the system dynamics computer
  simulation methodology to gain insight into the
  dynamic behavior of insurgents.

14
About the Simulation
Input Parameters 32 Variables, 6 Interacting
Classes

• Simulation Variables (Partial List)
• British public war weariness effect on troops in
  Ireland
• Effect of Irish public satisfaction on Irish
  insurgents
• Effect of insurgent density on identifying
  insurgents
• Insurgents captured per coercive act
• Number of insurgents dead or captured who would
  have remained active
• Inactive insurgent retirement rate
• Coercion acts per month (also per soldier, per
  citizen)
• Irish awareness of coercive acts
• Fraction of insurgents that are active
• Increase in insurgents
• Number of insurgents if there was no delay to
  activate
• Potential insurgents
• Pressure of British government to reduce incidents

• Citizens
• Time to weary of war
• Satisfaction parameter
• Attrition parameter
• Time to satisfy
• Time to dissatisfy
• Fraction of population attracted to insurgent
  action

• Insurgents
• Initial active insurgents
• Average insurgent career (yrs)
• Base insurgent density
• Base insurgent fraction
• Frac of males likely to join
• Lifespan in years
• Population annual growth rate
• Base population
• Time to join insurgency
• Min demobilization time
• Minimum insurgent frac activated
• Insurgent parameter

• Incidents
• Incidents/insurgent-month
• Attrition rate per incident

• Output Variables for Exploration
• British Troops in Ireland (t120 months)
• Irish satisfaction (t120 months)
• Active insurgents (t120 months)
• British War Weariness(t120 months)

• Coercion
• Base coercion fruitfulness
• Coercion response time
• Max coercive acts /month
• Coercion parameter

• Soldiers
• Base troops in Ireland
• Minimum troops to hold Ireland
• Time to move troops
• Troop parameter diminishing returns of troop
  presence

• Vensim instantiation of model enables
• Representation of time delays
• Integration over simulation intervals

• Weapons
• Weapons availability y/n
• Weapons parameter

15
Users Mental ModelSome Relationships and
Competing Influences
Fewer coercive acts, since fewer troop to do them
Fewer British troops in Ireland
More desire by British public to bring troops home
More insurgent incidents
More active insurgents
More coercive acts (killing, jailing insurgents)
More desire by British public stamp out insurgency
Fewer insurgents
More insurgents killed or jailed
More coercive acts (killing, jailing) against
insurgents
Irish public more dissatisfied
More insurgent recruits
More insurgents
16
Input Variables Changed

• Insurgent parameter (Decreased) sensitivity of
  number of insurgent recruits to Irish
  dissatisfaction
• Time to satisfy (Decreased) Delay between a
  reduction of coercive acts and Irish satisfaction
  with British troops
• User will evaluate applicability of model by
  comparing expectations generated by his mental
  model
• Response of output variables to changes in input

17
User Expectations if Insurgent Parameter is
Reduced

• New recruits will diminish
• Violent acts will diminish
• British coercive acts per British soldier
  diminished
• British war weariness will diminish
• Number of British troops withdrawn will be less
  so more will remain
• Number of coercive acts may increase or decrease
  depending on which has more impact decrease in
  coercive acts per soldier or increase in British
  soldiers
• Irish dissatisfaction with British will increase
  or decrease depending on whether number of
  coercive acts increases or decreases

18
Simulation Results Insurgent Parameter Reduced
Reduced war weariness at first
Fewer insurgents at first. More at end
More British troops
Decreased Irish satisfaction over longer term
19
User Evaluation of Simulation Results When
Insurgent Parameter Reduced
Reduced war weariness at first, as expected due
to fewer insurgent attacks
Fewer insurgents at first, as expected since new
recruits reduced
More British troops, as expected, since reduced
war weariness reduces pressure to bring home
No user expectations because change in Irish
satisfaction depends on coercive acts, which
users model says could either increase or
decrease
20
User Conclusions Decrease of Insurgent Parameter

• Simulation output for number of insurgents, war
  weariness and British troops behaved as expected,
  increasing confidence of simulation applicability
  for this case
• Simulation output on Irish satisfaction could not
  impact user evaluation of simulation since user
  had no prior expectations
• If the number of British soldiers matters most
  then Irish satisfaction would be expected to
  decrease
• If coercive acts per soldier matters most then
  Irish satisfaction would be expected to increase

But Weve Only Looked at One Factor
21
User Expectations if Time to Satisfy is Reduced
This change reduces the time for Irish approval
of British to increase when British reduced
number of coercive acts User expectations

• Time constant change will have little if any
  impact on final steady state value of key
  variables
• Number of active insurgents
• British war weariness
• Number of British troops
• Irish satisfaction with British
• All changes to these values will simply occur
  more quickly

22
Simulation Results Time To Satisfy Decreased
(Quicker Reaction)
Peak reached sooner
Peak reached sooner
Change occurs more quickly
No change to steady state value or rate of change
No change to extrapolated steady state value
23
User Evaluation of Simulation Results Time to
Satisfy Reduced
Peak reached sooner as expected
Peak reached sooner, as expected
No changed to extrapolated steady state value as
expected
No change to steady state value as expected
Change occurs more quickly, as expected
No significant impact to rate of change,
contrary to expectations
No changed to extrapolated steady state value as
expected
24
User Conclusions Decrease In Time to Satisfy

• No impact on steady state response, as expected
• Decreased time response to number of active
  insurgents, British war weariness, and Irish
  satisfaction with British rule as expected
• No change in time behavior of number of British
  troops, which is contrary to expectations

But Weve Only Looked at Two Factors and No
Interactions
25
User Conclusions From One-by-One Examination of
Output Changes

• Output changes from insurgent parameter and
  time-to-satisfy match user expectations
  reasonably well, increasing credibility for user
• Sensitivity analysis has not helped much with
  transparency.
• Sensitivity analysis is hard
• The inspection of additional variables would
• Be useful, but time consuming
• Provide additional insight into the applicability
  of the model
• Help focus user on key variables to examine in
  more detail

User Would Like More Information on the Drivers
for Selected Output Variables
26
Agenda

• HSCB models
• Validation techniques
• Traditional sensitivity analysis approach to
  validation
• An tool leveraging Bayesian inference for active
  factor screening
• Technical details
• Challenges

27
User Evaluation Assessing Impact of Drivers
Using a Bayesian Tool

• The sensitivity analysis inspected changes to
  output variables in response to changes to input
  variables, analyzed one-by-one.
• A Bayesian analysis is a way to automate and
  expedite the process
• This approach identifies simultaneously many
  input variables and variable interactions that
  cause a change in the value of output variables.
• User assessment of applicability of the model
  will be based on a match between variables
  identified as drivers/non-drivers and those he
  expects to be drivers/non-drivers
• The technique can analyze both the input
  variables the user expects to drive output as
  well as some he is uncertain about or does not
  expect to drive output

28
Technical Approach Innovative Use of Modified
Box-Meyer Algorithm

• Employ an extension of Box-Meyer (B-M) algorithm
  for finding active factors in fractionated
  screening experiments
• Originally intended to support experimental
  design
• Uses Bayesian algorithm to compute the
  probability a set of variables is active given
  experimental outcomes
• Uses marginal posterior probabilities to identify
  active factors
• Use extended B-M method to help identify active
  and important factors that are small in magnitude
  and may be overwhelmed by large magnitude factors
• Conduct computational experiments with
  tool-generated experimental design for
  user-defined input variables
• Compute the probability a variable is active
  given the simulation outputs

29
Example 8 Input Variables Possibly Affecting
the Number of Active Insurgents

• Weapons availability Affects number and
  strength of insurgent attacks and resulting
  pressure to reduce incidents
• Coercion parameter How much an increase in the
  number and strength of insurgent attacks
  increases British coercive acts
• Max coercive acts per British soldier prevents
  number of British attacks per soldier from
  exceeding specified value
• Reference incidents affects impact of insurgent
  attacks on British desire to reduce attacks and
  on pressure on British to reduce incidents
• Time to weary of war Delay between a change in
  pressure to reduce incidents and British war
  weariness
• Troop parameter How much war weariness impacts
  the withdrawal of British troops
• Time to satisfy Delay between a reduction of
  coercive acts and Irish satisfaction with British
  troops
• Insurgent parameter sensitivity of number of
  insurgent recruits to Irish dissatisfaction

30
User Expectations if Numerous Input Variables
Change Simultaneously

• User expects impacts that more directly affect
  insurgents to have greatest impact
• Weapons availability moderate impact, since
  affects British reaction to attacks rather than
  troop levels directly
• Coercion parameter moderate impact, since
  coercive acts can directly impact number of
  insurgents through attrition
• Max coercive acts per British soldier uncertain
  impact since depends on whether this ceiling is
  activated
• Reference incidents low impact, since works
  indirectly through British reaction to insurgent
  attacks
• Time to weary of war Low impact, since it is a
  time constant
• Troop parameter Low impact, since works
  indirectly through coercive acts
• Time to satisfy Low impact, since is a time
  constraint
• Insurgent parameter High impact, since directly
  affects recruitment of new members

Impact Expected
Minimal or No Impact Expected
31
Using Box-Meyer Bayesian Method to Identify
Drivers

• User chooses
• Output variables whose drivers are to be
  determined
• Input variables that are candidates for being
  drivers
• Binary (low, high) values for each of these input
  variables
• Type of design
• Depth of interactions to be included in tools
  analysis
• X1, X2, X3 or X1, X2, X3, X1X2, X1X3,X2X3 or

• Tool
• Calculates the impact of individual and combined
  variables on the output variable

32
Design Matrix Simulation Runs2 8-4
Insurgent Parameter Time to Satisfy Troop Parameter Time to Weary of War Reference Incidents (political) Max Coercive acts per Brit soldier Coercion Parameter (political) Weapons Availability Active Insurgents
-1 -1 -1 1 1 1 -1 1 744
1 -1 -1 -1 -1 1 1 1 727
-1 1 -1 -1 1 -1 1 1 400
1 1 -1 1 -1 -1 -1 1 575
-1 -1 1 1 -1 -1 1 1 312
1 -1 1 -1 1 -1 -1 1 1020
-1 1 1 -1 -1 1 -1 1 650
1 1 1 1 1 1 1 1 0
1 1 1 -1 -1 -1 1 -1 762
-1 1 1 1 1 -1 -1 -1 1347
1 -1 1 1 -1 1 -1 -1 1154
-1 -1 1 -1 1 1 1 -1 936
1 1 -1 -1 1 1 -1 -1 1311
-1 1 -1 1 -1 1 1 -1 572
1 -1 -1 1 1 -1 1 -1 1098
-1 -1 -1 -1 -1 -1 -1 -1 1248
33
Box-Meyer is a Snapshot of the Simulation Results

• The quantitative analysis shown next is from t
  120

34
Bayesian Results Driver Identification
?.25 ?.7
35
User Reaction to Bayesian Results

• Results are in general agreement with
  expectations
• User is surprised by reference incidents and
  insurgent parameter
• Inspection of earlier insurgent parameter run
  indicates high initial impact which diminishes
  over time but not to zero.
• User will evaluate reference incidents more
  closely to understand reasons for high impact

?.25 ?.7
Match expectations
Contrary to expectations
36
Value in Simulation Evaluation for Current Use

• Bayesian analysis identified the active factors
  that drive the output
• Impact of 6 input variables met expectations
• User should investigate reference incidents more
  closely to understand its importance
• User may want to investigate insurgent parameter
  more closely to understand its initial but
  diminishing impact
• Screening technology prompts user to focus on
  most surprising variable (reference incidents)
• Typical follow-on analysis might
• Re-examine the four active factors and study the
  interactions
• Examine temporal behavior
• Examine the causal chains

37
User Assessment

• If results agree with expectations/hypothesis it
  is an indicator that the simulation is consistent
  with users presumed understanding of situation
• If user is uncomfortable with results it is an
  indicator that further exploration of the
  simulations causal chains is warranted
• If deviation of results from user expectations
  remain after further investigation it is an
  indicator that the model may not be applicable
  for specific use being considered

38
Analytical Benefits and Application Strategy

• Benefits
• Parsimony Helps distinguish the vital few
  variables from the trivial many for a specific
  problem
• Explanatory power Helps find plausible variables
  that account for experimentation results or can
  be explored further
• Economy puts focus on fractional or
  nearly-orthogonal designs that allow more
  variables to be considered
• Application Strategy
• Consider a set of main variables and interactions
  up to a specified order (level of complexity)
• Identify drivers (or unimportant parameters) and
  examine their interaction more closely through
  subsequent experiments
• Add additional variables or levels of complexity
  as needed

More Accurate than Standard Visual Statistical
Methods
39
Iterative Methodology
F1, F60, F61, F80

• Work bottom-up through multiple integrated models
  to identify globally important input factors

F1 F7
F17 -F19
F60
F61
F76-F80
F1-F10
F11-F30
F31-F60
F61-F75
F76-F100
Religious
Economic
Social
Cultural
Political
40
Agenda

• HSCB models
• Validation techniques
• Traditional sensitivity analysis approach to
  validation
• An tool leveraging Bayesian inference for active
  factor screening
• Technical details
• Challenges

41
Algorithm Description Application of Bayes
formula

• Tool calculates p(Miy), the probability of each
  hypothesis given the simulation output
• Can be interpreted as the extent to which the set
  of variables and interactions in the regression
  formula associated with Mi can account for the
  simulation output, taking all the Mi into account
• Computes the marginal probabilities for each
  model variable and interaction.
• This is the sum of all the probabilities of
  hypotheses in which that term appears

Box and Meyer, 1993
42
Extension Modified Box Method

• Samset, O., and J. Tyssedal. Study of the
  Box-Meyer Method for Finding Active Factors in
  Screening Experiments. 1998.
• As the difference in size between the largest
  and smallest effects in the true model increases,
  the Box Meyer method seems to have a problem with
  identifying the smallest effects, even if these
  are highly significant
• They modified the Box-Meyer method to accommodate
  this
• The idea Identify interactions that are small
  and delete those columns from the analysis
  matrix. With noise-level factors removed, the
  significant but small magnitude factors should
  show up

Samset and Tyssedal, 1998
43
Applying the Extension
Samset-Tyssedal 2 8-2 Partial Design ? 0.6
Box Meyer 2 8-2 Partial Design ? 0

• The Samset Tyssedal extension improves the active
  factor analysis for a partial design to be very
  similar to an active factor analysis for a full
  design.

44
Agenda

• HSCB models
• Validation techniques
• Traditional sensitivity analysis approach to
  validation
• An tool leveraging Bayesian inference for active
  factor screening
• Technical details
• Challenges

45
Challenges in Applying the Extension

• Without the full design, when does one stop?
• Strategy for choosing delta?
• 0 ? ? ? TBD?
• How is ? related to ??
• Dependencies among ?,?, and ? and how to pick
  their values
• How do you know when to stop increasing ??
• For 2 k-p designs, what are the limits on
  increasing the value of p when leveraging
  modified B-M?

Explore The Extension in Phase II
46
Follow-up ExperimentIdentifying Driving
Interactions
Consider this example y 5X1X34X1X3
M1y ?0 ?1 X1 ?3 X3 P(M1y) P
(X1, X3y) .95 Sigma-square 491
M1y ?0 ?1X1 ?3X3 ?4 X1X3 P(M1y) P
(X1, X3y) .99 Sigma-square 35

• The X1X3 term isnt evaluated
• M1 accounts for much of the output, but the
  interaction term is required to capture all the
  effects.

• How do we know if the interactions are important?
• Rerun the algorithm with maximum interactions
  limited to one

Explore Strategies of Identifying Interactions in
Phase II
47
Other Challenges

• How to pick min/max for two factor designs
• Experimentation design strategies for sampling a
  large space of variables
• Number of factors and degree of interaction
  associated with partial designs
• Explore the accuracy-time tradeoffs to
  appropriately address a very large number of
  variables in very large simulations
• Strategies for investigating interactions
• Complementary methods and tools for follow on
  analysis
• Means of identifying the time sequence of causes
  and effects
• Apply Box-Meyer at different time intervals
• Develop performance metrics and system
  limitations/boundaries
• Designs
• Orthogonality
• Scalability and full designs
• False negatives and limitation of partial designs

48
Conclusions

• Large complex simulation models are often little
  more than black boxes to users
• The utilization of rigorous quantitative
  techniques like Bayesian inference and
  statistical analysis can
• Improve both the credibility and transparency of
  the model
• Do this for a range of user classes
• Subjects, SMEs, RD managers and developers
• The biggest challenge is how to attack
  scalability in a systematic way

49

• Backup

50
Recursive Methodology Idea
51
Recursive Methodology for Integrated Models

• Work top-down to identify important intermediate
  outputs and thus relevant models

O21-O25
Outputs 1 20 Inputs to the next stage
F1-F10
F11-F30
F31-F60
F61-F75
F76-F100
Religious
Economic
Social
Cultural
Political
52
Bayes
53
Bayesian Refresher

• We have enough information about the outputs
  to predict the values of the pertinent densitys
  defining parameters

We dont have enough information, so we make an
assumption about the prior distribution of the
defining parameters and watch the densities
update as we gain information from the outputs
54
Likelihood Function and the Sequential Nature of
Bayes
Learning from Experience Our knowledge of ?, ?2
grows as new data becomes available
55
Genetics Example
MICE BB (black) Bb (Black) bb (brown)
BB mate bb 0 1 0
Bb mate bb 0 ½ ½
Bb mate Bb ¼ ½ ¼

• Suppose a test mouse is black and its parents
  were Bb and Bb
• As offspring are born to the test mouse and a
  bb mate what can we say about the probability
  that the test mouse is BB versus Bb
• The prior probability for the test mouse is
• P(BBblack) (1/4)/(1/41/2) 1/3
• P(Bbblack) (1/2)(1/41/2) 2/3
• As seven black offspring are born the added
  information changes these probabilities as we
  apply Bayes theorem successively
• P(BBblack) 1/3?1/2?2/3?4/5?8/9?16/17?32/33?64/65
• P(Bbblack) 2/3?1/2?1/3?1/5?1/9?1/17?1/33?1/65

56
Questions

• What does the probability mean?
• Frequency of occurrence for the genetics example
• Mathematical expression of our belief in a
  certain proposition
• Bayes allows us to recalibrate our belief
• Choice and necessity of prior distribution?
• Known genetic facts
• What our belief is before we begin experimenting,
  e.g. betting odds
• Non-informative uniform distribution-tails go to
  zero
• Integrity of the density function
• Likelihood dominates the prior with enough
  information

57
Algorithm Description Application of Bayesian
Regression

• Tool creates a set of hypotheses or model (Mi)
  from user-defined variables
• Regression formulas for a subset of variables and
  variables interactions
• Examples
• Calculates each regression terms and variance for
  each of the hypotheses
• Treats each ?i in each regression formula as a
  Bayesian prior random variables i.i.d. N(0, ?2s2)
• From regression data, determines the predictive
  density of the simulation output, given a
  hypothesized model, Mi

Box and Meyer, 1993
58
Experimental Design
59
Screening Designs Scalability

• Low Resolution Designs
• Screen out the few important main effects from
  the many less important others.
• Main effects are confounded with two factor
  interactions
• High Resolution Designs
• Estimate interaction effects
• No main or two factor interaction is confounded
  with any other main or two factor interaction
• Two factor interactions are confounded with 3
  factor interactions

60
Design Matrix
Run X1 X2 X3
1 -1 -1 -1
2 1 -1 -1
3 -1 1 -1
4 1 1 -1
5 -1 -1 1
6 1 -1 1
7 -1 1 1
8 1 1 1
61
Analysis Matrix
I X1 X2 X1X2 X3 X1X3 X2X3 X1X2X3 Y
1 -1 -1 1 -1 1 1 -1 Y1
1 1 -1 -1 -1 -1 1 1 Y2
1 -1 1 -1 -1 1 -1 1 Y3
1 1 1 1 -1 -1 -1 -1 Y4
1 -1 -1 1 1 -1 -1 1 Y5
1 1 -1 -1 1 1 -1 -1 Y6
1 -1 1 -1 1 -1 1 -1 Y7
1 1 1 1 1 1 1 1 Y8

• Orthogonality eliminates correlation between
  estimates of main effects and estimates of
  interaction effects
• Note that in the regression solution the H and L
  values have to replace the 1s and -1s

62
Parameters
63
Input Parameters

• ? is the probability that a single factor is
  active, and since we expect only half the factors
  to be active in any analysis we can assume it is
  between 0 and 0.5
• ? is chosen with a nominal value of 0.25, but the
  choice normally has negligible effect
• ? is chosen by evaluating p(?y) for 1? ? ? 10 in
  increments of 1 and choosing the one that gives
  the maximum for the analysis

64
Formula Parameters
65
Simulation
66
(No Transcript)
