Title: Software Process Improvement


1

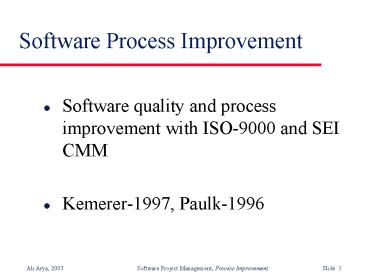

Software Process Improvement
  • Software quality and process improvement with
    ISO-9000 and SEI CMM
  • Kemerer-1997, Paulk-1996

2
Software Development Process
  • Process A set of partially ordered steps
    intended to reach a goal with supporting inputs,
    outputs, constraints and resources (agents and
    tools), and possibly multiple levels of
    abstraction.
  • Software development process goals
  • High quality
  • Low cost
  • On-time delivery
  • Other political/technological or market
    considerations
  • IEEE 1074, ISO 12207, and IEEE/EIA 12207

3
Ideal Software Process
  • Predictable
  • Consistency in cost/schedule estimates
  • Meeting quality and functionality requirements
  • Defined/Standardized
  • Independent of individuals
  • Repeatable
  • Statistically Controlled
  • Measurement
  • Insight
  • Optimization

4
Quality and Process Standards
  • ISO 9000 (general)
  • Family of Quality Management standards from
    International Standardization Organization
  • TQM (general)
  • Total Quality Management
  • Canada's CAE, Europe's BEA, and USA's MBNQA
  • SEI CMM (software-specific)
  • Software Engineering Institute set of Capability
    Maturity Models
  • ISO 15504, SPICE (unofficial, software-specific)
  • Common base for process improvement models like
    CMM
  • Others (software-specific)
  • Trillium, Bootstrap,

5
ISO 9000 Principles
  • Customer focus
  • Leadership
  • Involvement of people
  • Process approach
  • System approach to management
  • Continual improvement
  • Factual approach to decision making
  • Mutually beneficial supplier relationships

6
ISO 9000 Family
  • ISO 9000
  • Fundamentals and vocabulary
  • ISO 9001
  • Requirements
  • The only standard in the ISO 9000 family against
    which third-party certification can be carried.
  • ISO 9002
  • Models for quality assurance in production,
    installation, and servicing
  • ISO 9003
  • Models for quality assurance in final
    specification and test
  • ISO 9004
  • Guidelines for performance improvements

7
ISO 9000-3 Software
  • Guidelines for the application of ISO 9001 to
    development, supply, and maintenance of software
  • ISO 9000-1 is the basic concepts
  • ISO 9000-2 is Guidelines for application of
    9001/2/3
  • Translating ISO 9001 guidelines to software
    development with specific considerations
  • Sections do not always correspond to ISO 9001 in
    a one-to-one way but cross references are
    available

8
ISO 9000-3 Outline
4. Framework Management responsibility Quality
system Internal quality audits Corrective actions
5. Life-cycle Activities Contract Planning Design
and development Testing and acceptance Maintenance
6. Supporting Activities QA, Document
Control Training, Tools Measurement, Purchasing
1. Scope 2. References 3. Definitions
9
ISO 9000-3 Excerpts
  • 5.4.2.1 Development Phases
  • The development plan should define a disciplined
    process or methodology for transforming the
    purchasers requirements specification into a
    software product.
  • 5.6.2 Design
  • In addition to the requirements common to all the
    development phases, the following aspects
    inherent to the design activities should be
    examined
  • Identification of design considerations,
  • Design methodology,
  • Use of past design experiences,
  • Subsequent processes,

10
Total Quality Management
  • Started in 80s and became popular in 90s
  • Considered a superset of ISO 9001 with a process
    model/approach
  • Total
  • Quality involves everyone and all activities in
    the company.
  • Quality
  • Conformance to Requirements (meeting customer
    requirements).
  • Management
  • Quality can and must be managed.
  • TQM
  • A process for managing quality a philosophy of
    perpetual improvement in everything organization
    does.

11
TQM Principles
  • Quality can and must be managed.
  • Everyone has a customer and is a supplier.
  • Processes, not people are the problem.
  • Every employee is responsible for quality.
  • Problems must be prevented, not just fixed.
  • Quality must be measured.
  • Quality improvements must be continuous.
  • Life cycle costs, not front end costs.
  • Management must be involved and lead.
  • Plan and organize for quality improvement.

12
CMM History
  • 1982, US DoD joint task force to review the
    software problems
  • One of the resulting initiatives was the Software
    Engineering Institute (SEI)
  • 1984, SEI was established at Carnegie Mellon
    University
  • Its purpose to address the need for improved
    software in DoD operations
  • SEI developed the Software Process Maturity Model
    for DoD and industry
  • 1991, the Capability Maturity Model (CMM) was
    created

13
CMM/TQM Alignment
14
Deming Chain Reaction
15
Capability Maturity Models
  • CMMI, Capability Maturity Model Integration
  • SW-CMM, Capability Maturity Model for Software
  • P-CMM, People Capability Maturity Model
  • SA-CMM, Software Acquisition Capability Maturity
    Model
  • SE-CMM, Systems Engineering Capability Maturity
    Model
  • IPD-CMM, Integrated Product Development
    Capability Maturity Model

16
Maturity Concepts
  • Software process
  • a set of activities, methods, practices, and
    transformations that people use to develop and
    maintain software and the associated products
  • Software process capability
  • the range of expected results that can be
    achieved by following a software process
  • Software process performance
  • the actual results achieved by following a
    software process.
  • Software process maturity
  • the extent to which a specific process is
    explicitly defined, managed, measured,
    controlled, and effective (implies a potential
    for growth in capability and indicates both the
    richness of process and the consistency with
    which it is applied

17
Institutionalization
  • As a software organization gains in software
    process maturity, it institutionalizes its
    software process via policies, standards, and
    organizational structures.
  • Institutionalization entails building an
    infrastructure and a corporate culture that
    supports the methods, practices, and procedures
    of the business so that they endure after those
    who originally defined them have gone.

18
SW-CMM Levels
Software Process Maturity Levels
19
SW-CMM Levels
  • Initial
  • The software process is characterized as ad hoc,
    and occasionally even chaotic. Few processes are
    defined, and success depends on individual effort
    and heroics.
  • Repeatable
  • Basic project management processes are
    established to track cost, schedule, and
    functionality. The necessary process discipline
    is in place to repeat earlier successes on
    projects with similar applications.
  • Defined
  • Management and engineering activities are
    documented, standardized, and integrated into a
    family of standard software processes for the
    organization. Projects use a tailored version of
    the organizations standard software processes
    for developing and maintaining software.

20
SW-CMM Levels
  • Managed
  • Detailed measures of the software process and
    product quality are collected. Software processes
    and products are quantitatively understood and
    controlled.
  • Optimizing
  • Continuous process improvement is facilitated by
    quantitative feedback from the process and from
    piloting innovative ideas and technologies.
  • Level 4 and 5 are usually considered high
    maturity levels
  • 9 in SEI database of 1012 organizations, as of
    March 2001.

21
Process Capability vs. Maturity
22
Key Process Areas
23
CMM Structure
24
KPA Goals
  • L-2, requirements management
  • Controlled requirements as baseline for
    activities
  • Consistent plans, procedures, and activities
  • L-2, project planning
  • Documented estimates
  • Planned activities
  • Agreed commitments
  • L-2, software tracking and oversight
  • Results tracked against plans
  • Corrective actions
  • Agreed changes to commitments

25
KPA Goals
  • L-2, subcontract management
  • Qualified subcontractors selected by prime
    contractor
  • Agreed commitments
  • Ongoing communications
  • Performance tracking
  • L-2, quality assurance
  • Planned QA activities
  • Verified adherence to procedures
  • Informed groups and individuals
  • Noncompliant issues addressed by project members
    or senior management
  • L-2, configuration management
  • CM activities planned
  • Identified, controlled, and available items
  • Change control
  • Groups informed of status and content of baselines

26
KPA Goals
  • L-3, organization process definition
  • Standard software process
  • Available information
  • L-3, organization process focus
  • Coordinated development and improvement
    activities
  • Process standard used to identify strengths and
    weaknesses
  • Planned organization-level improvement activities
  • L-3, Training
  • Planned training activities
  • Necessary trainings received

27
KPA Goals
  • L-3, integrated software management
  • Tailored process for each project
  • Projects planned and managed based on their
    process
  • L-3, software product engineering
  • Defined and integrated tasks
  • Consistent work products
  • L-3, inter-group coordination
  • Agreed customer's requirements
  • Agreed commitments
  • Identified, tracked, and resolved inter-group
    issues.
  • L-3, peer review
  • Planned activities
  • Identified and removed defects

28
KPA Goals
  • L-4, quantitative process management
  • Planned activities
  • Quantitative performance control for project
    processes
  • Quantitative identification of standard process
    capabilities
  • L-4, software quality management
  • Planned activities
  • Measurable quality goals
  • Quantified and managed progress

29
KPA Goals
  • L-5, defect prevention
  • Planned activities
  • Identified common causes of defects
  • Prioritized and removed causes
  • L-5, technology change management
  • Planned activities
  • Evaluated effect on quality
  • Transferred into normal practice if appropriate
  • L-5, process change management
  • Planned activities
  • Organization wide participation in process
    improvement
  • Standard and project processes continuously
    improved

30
KPA Common Features
  • Commitment to perform
  • Senior management policies
  • Ability to perform
  • Training, special skills tools
  • Activities performed
  • Plans and procedures
  • Monitoring
  • Measurement and analysis
  • Verification
  • Reviews and audits

31
Examining Maturity Level
  • CMM Assessment
  • Voluntary and confidential
  • Inspects the organization-wide capability/maturity
  • Done by senior professionals and one or two coach
  • Coaches are from SEI or an SEI-licensed
    assessment vendor
  • CMM Evaluation
  • Open to external inspecting body
  • Usually for getting a contract
  • Done by external contractor
  • Very judgemental and stressful

32
CMM Assessment
  • Procedure
  • Obtain commitment of organization
  • Preparation
  • Assessment conduct (interview, data collection,
    analysis)
  • Usually in 3 or 4 days
  • Briefing and reporting
  • Action plan development
  • Follow-up
  • Teams/Personnel
  • Assessment team
  • Senior management
  • Software project managers (SPMs)
  • Functional area representatives (FARs)
  • Developers, QA and CM engineers, members of
    Software Engineering Process Group (SEPG)

33
Maturity Levels in Industry
  • Late 90s, US software sites
  • 75 at level 1
  • 15 at level 2
  • 9 at level 3
  • 1 at levels 4 or 5
  • Oct. 2002 SEI list ( sites at level 4/5)
  • Australia, 2/0
  • Canada, 0/1
  • China, 0/2
  • India, 27/50
  • USA, 39/20

34
CMM Criticism
  • Subjective, binary, and intrusive evaluation
  • Different approached for different organizations
  • Answer CMM does not specify methods, just
    criteria
  • No proper integration with TQM
  • Unrealistic and skewed levels
  • Cost of moving from one level to another
  • Large companies with traditional process model
  • See CMM-XP paper !

35
Quality Assurance Techniques
  • Audits, evaluations, and corrective actions by
    SQA (CMM L-2)
  • Error detection and defect removal via testing
    and peer reviews (CMM L-3)
  • Fault tolerance and error recovery (CMM L-3)
  • Repeatable and effective software engineering
    processes
  • Measurement, and defect prevention (CMM L-4 and
    L-5)
  • Analysis of defect trends for needed improvements

36
Software Review
  • Data shows that it is much more efficient to find
    defects in reviews than in testing
  • Unit test 2 to 4 defects / hour
  • Code review 10 defects / hour
  • Experienced reviewers can yield 70 or more
  • Typical time to find and fix defects
  • Integration test 10 to 40 hrs / defect
  • Inspection typically less than 1 hr / defect
  • Review does not have to be inspection
  • Informal vs. formal
  • Record time, defects found, and material reviewed
  • Metrics defect density, detection rate, average
    time,

37
CMM and ISO-9000
  • Different structure but strong correlation
  • CMM emphasizes on continuous process improvement.
  • ISO 9000 defines minimum requirement for an
    acceptable quality system.
  • Documentation and meeting quality requirements
    are important similarities.
  • Cross references exist.
  • See comparison article !

38
CMM and Extreme Programming
  • Extreme Programming (XP) is a methodology based
    on the concept of evolutionary software
    development.
  • XP is mainly initiated and used for the
    high-speed, volatile world of Internet and Web
    software development.
  • XP is used in arguments against rigorous
    software process improvement models like CMM.

39
XP Basics
  • Small to medium-sized teams
  • Fewer than 10
  • Vague and/or rapidly changing requirements
  • Iterative life cycle with short cycles
  • Activities coding, testing, listening, and
    designing.
  • Delivery of very small increments of
    functionality, a.k.a stories
  • continual communication
  • With the customer and within the team
  • Simplicity (minimalist solutions)

40
XP Practices
  • Planning game
  • Small releases
  • Metaphor
  • simple shared view of system
  • Simple design
  • Continuous integration and testing
  • Refactoring
  • Restructure the system without changing its
    behavior
  • Pair programming and Coding standards
  • Collective ownership
  • Onsite customer

41
XP and Level-2 KPAs
  • Largely addressed by XP
  • Requirement management (stories, on-site
    customer, and continuous integration)
  • Planning (planning game and small releases)
  • Tracking and oversight (project velocity and
    small releases)
  • Partially addressed by XP
  • Quality assurance (pair programming)
  • Configuration management (collective ownership,
    small releases, and continuous integration)
  • Not addressed by XP
  • Subcontracting

42
XP and Level-3 KPAs
  • Largely addressed by XP
  • Software product engineering (metaphor, simple
    design, refactoring, coding standards, and
    testing)
  • Intergroup coordination (on-site customer, pair
    programming)
  • Peer reviews (pair programming)
  • Partially addressed by XP
  • Organization process focus (team level)
  • Organization process definition (life cycle)
  • Not addressed by XP
  • Training program
  • Integrated software management

43
XP-CMM Interplay
  • XP is complementary to CMM concepts, even if they
    do not completely address them.
  • CMM what-to-do in general terms,
  • XP how-to for some specific cases
  • XP generally focuses on technical work, whereas
    the CMM generally focuses on management issues.
  • Lack of institutionalization in XP
  • XP is hard to implement when project size grows.
Write a Comment
User Comments (0)
About PowerShow.com
