Title: Duplex


1

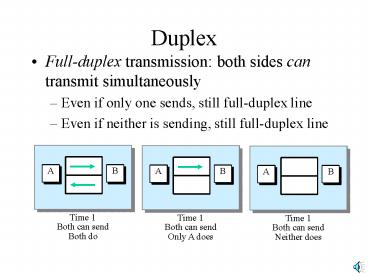

Duplex
  • Full-duplex transmission both sides can transmit
    simultaneously
  • Even if only one sends, still full-duplex line
  • Even if neither is sending, still full-duplex line

A
B
A
B
A
B
Time 1 Both can send Both do
Time 1 Both can send Only A does
Time 1 Both can send Neither does
2
Duplex
  • Half-duplex transmission only one can transmit
    at a time must take turns
  • Still half duplex if neither transmits

Time 1 Only one side Can send A does
Time 2 Only one side Can send Neither does
3
Duplex
  • Duplex is a Characteristic of the Transmission
    System, Not of Use at a Given Moment
  • In full duplex, both sides can transmit at once
    in half duplex, only one side can transmit at a
    time
  • Still full duplex system if only one side or
    neither side actually is transmitting at a moment
  • Still half duplex if neither side actually is
    transmitting at a moment

4
Radio Propagation
  • Broadcast signal
  • Not confined to a wire

5
Radio Waves
  • When Electron Oscillates, Gives Off Radio Waves
  • Single electron gives a very weak signal
  • Many electrons in an antenna are forced to
    oscillate in unison to give a practical signal

6
Radio Propagation Problems
  • Wires Propagation is Predictable
  • Signals go through a fixed path the wire
  • Propagation problems can be easily anticipated
  • Problems can be addressed easily
  • Radio Propagation is Difficult
  • Signals begin propagating as a simple sphere
  • But they can be blocked
  • There are shadow zones

Shadow Zone
7
Radio Propagation Problems
  • Radio Propagation is Difficult
  • Signals are reflected
  • May arrive at a destination via multiple paths
  • Signals arriving by different paths can interfere
    with one another
  • This is called multipath interference

8
Radio Propagation Waves
  • Waves

Frequency in hertz (Hz) Cycles per Second
One Second 7 Cycles
Wavelength (meters)
Amplitude (strength)
1 Hz 1 cycle per second
9
Radio Propagation Frequency Spectrum
  • Frequency Spectrum
  • Frequencies vary (like strings in a harp)
  • Frequencies measured in hertz (Hz)
  • Frequency spectrum all possible frequencies from
    0 Hz to infinity

0 Hz
10
Frequencies
  • Metric system
  • kHz (1,000 Hz) kilohertz note lower-case k
  • MHz (1,000 kHz) megahertz
  • GHz (1,000 MHz) gigahertz
  • THz (1,000 GHz) terahertz

11
Radio Propagation Service Bands
  • Service Bands
  • Divide spectrum into bands for services
  • A band is a contiguous range of frequencies
  • FM radio, cellular telephone service bands etc.

Cellular Telephone
Service Bands
FM Radio
AM Radio
0 Hz
12
Radio Propagation Channels and Bandwidth
  • Service Bands are Further Divided into Channels
  • Like television channels
  • Bandwidth of a channel is highest frequency minus
    lowest frequency

Channel Bandwidth
Channel 3
Service Band
Channel 2
Channel 1
0 Hz
13
Radio Propagation Channels and Bandwidth
  • Example
  • Highest frequency of a radio channel is 43 kHz
  • Lowest frequency of the radio channel is 38 kHz
  • Bandwidth of radio channel is 5 kHz (43-38 kHz)

Channel Bandwidth
Channel 3
Service Band
Channel 2
Channel 1
0 Hz
14
Radio Propagation Channels and Bandwidth
  • Shannons Equation
  • W is maximum possible (not actual) transmission
    speed in a channel
  • B is bandwidth of the channel highest frequency
    minus lowest frequency
  • S/N is the signal-to-noise ratio

W B Log2 (1 S/N)
15
Radio Transmission Broadband
  • Speed and Bandwidth
  • The wider the channel bandwidth (B), the faster
    the maximum possible transmission speed (W)
  • W B Log2 (1S/N)

Maximum Possible Speed
Bandwidth
16
Telephony is Narrowband
  • Bandwidth in Telephone Channels is Narrow
  • Sounds below about 300 Hz cut off to reduce
    equipment hum within telephone system
  • Sounds above about 3,400 Hz cut off to reduce the
    bandwidth needed to send a telephone signal

3.1 kHz
20 kHz
300 Hz
3.4 kHz
17
Telephony is Narrowband
Error in Book
  • Bandwidth in Telephone Channels is Narrow
  • A radio channel would have to be from 0 to 3.4
    kHz (3.4 kHz)
  • This would mean a maximum possible transmission
    speed of about 35 kbps

Required Radio Channel
3.1 kHz
20 kHz
300 Hz
3.4 kHz
18
Broadband
  • Two Uses of the Term Broadband
  • Technically, the signal is transmitted in a
    single channel AND the bandwidth of the channel
    is large
  • Therefore, maximum possible transmission speed is
    high
  • Popularly, if the signal is fast, the system is
    called broadband whether it uses channels at all
