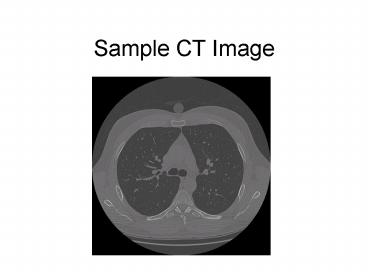

Sample CT Image

1
Sample CT Image
2
X-ray
2 attenuation change detectable in film
CT
0.2 change in attenuation coefficient
y
x
f(x,y)
CT, like X-ray measure line integrals
? ? ? ? ?
g(R) CT detector array output
g(R)
3
Direct Methods
Radon Transform 1917 Central Section Theorem -
Bracewell The transform of each projection forms
a line, at that angle, in the 2D FT of f(x,y)
g(R) ? f(x,y) dy
f(x,y)
We will skip the Algebraic Reconstruction
Technique
g(R)
4
First, lets think of our experience on the
meaning of F(u,0) in the Fourier transform.
v
F(u,0)
u
f(x,y) gt F (u,v) ?? f(x,y) e -i 2p (ux vy)
dx dy F(u,0) ? ? f(x,y) dy e -i 2p ux
dx So F(u,0) is the Fourier transform of the
projection formed from line integrals along the
y direction.
5
Computed Tomography

• Uses a collimator to keep exposure to a slice
• Builds image from multiple projections
• We will assume parallel rays for now.
• Actually how first generation scanners worked.
• Translate source and single detector across body
  for one angle
• Then rotate source and detector to get next
  angle

6
Central Section Theorem
The 1D Fourier Transform of a projection at
angle ? forms a line in the 2D Fourier space of
the image at the same angle.
y
Incident X-rays
R
?
x
ø
R
r
f(x,y)
Detected g? (R)
7
Incident x-rays pass through the object f(x,y)
from upper left to lower right at the angle 90
?. For each point R, a different line integral
describes the result on the function g? (R). g?
(R) is measured by an array of detectors or a
moving detector. The thick line is described
by x cos ? y sin ? R I have just drawn
one thick line to show one line integral, but the
diagram is general and pertains to any value of
R.
8
The projection g? (R) can thus be calculated as a
set of line integrals, each at a unique R. g?
(R) ? ? f(x,y) ? (x cos ? y sin ? - R) dx
dy 2p 8 g? (R) ? ? f(r, f) ? (r cos (? -
f ) - R) r dr df 0 0 In the second
equation, we have translated to polar
coordinates. Again g? (R) is a 1D function of R.
9
Lets consider the 2D FFT F(u,v) ? ? f(x,y) e
-i 2p (ux vy) dx dy In polar coordinates, u
? cos ? v ? sin ? F(?,?) ? ? f(x,y) exp
-i 2p ? (x cos ? y sin ?) dx dy When x cos ?
y sin ? constant, exp -i 2p ? (x cos ? y
sin ?) is a linear phase shift. This is the
Fourier transform of a shifted delta function.
Lets let the constant R and write the complex
exponential as the FT of a ? function. F(?,?)
?y ? xf(x,y) F?( x cos ? y sin ? - R) dx
dy F(?,?) ?y ?x f(x,y) ? ?( x cos ? y sin
? - R) e-i 2p rR dR dx dy
10
F(?,?) ? ? f(x,y) ? ?( x cos ? y sin ? -
R) e-i 2p rR dR dx dy Recall how we wrote
the projection as a double integral of
f(x,y) where a delta function performs the line
integral, g? (R) ? ? f(x,y) ? (x cos ? y sin
? - R) dx dy We take the Fourier Transform of g?
(R) Fg? (R) ?R ?y ?x f(x,y) ?( x cos ?
y sin ? - R) dx dy e-i 2prR dR dxdy which is
exactly what we wrote for F(r, ?) above! Thus,
Fg? (R) F(r, ? )
11
Central Section OrProjection Slice Theorem
Fg? (R) F(r, ?) So in words, the Fourier
transform of a projection at angle ? gives us a
line in the polar Fourier space at the same angle
?.
12
BATTLESHIP
Battleship New Rules Old way EW 2/ NS 3
Hit! EW 5/ NS 6 Miss!
North/South Data
East - West Data
13
BATTLESHIP
Battleship New Rules Tell the other player
how many times you see a battleship in a square
along each column. I started it for you. Finish
up the other gray squares on the bottom row.
North/South Data
East - West Data
14
BATTLESHIP
Battleship New Rules Here it is finished.
North/South Data
East - West Data
15
BATTLESHIP
If this is all your opponent told you, could
you find where the battleships were?
North/South Data
East - West Data
16
BATTLESHIP
Battleship New Rules What if your opponent
also had to tell you the number of ships in
squares along each row? Complete the gray
squares on the right side. I started it for you.
North/South Data
East - West Data
17
BATTLESHIP
North/South Data
Here are all the answers.
East - West Data
18
BATTLESHIP
North/South Data

Can you find the ships now if you just knew the
gray squares? One idea Smear the East West
numbers all the way up the columns. This tells
us that we should not spend much time looking
along EW4 or EW9. But there is
something probably up in EW8
East - West Data
19
BATTLESHIP
North/South Data
Next, smear the North/ South numbers to the left
and add them to what was in the grid
before. Where do you think the ships are? By
the biggest numbers? Is this always true? Lets
see.
East - West Data
20
BATTLESHIP
North/South Data
Here I finished smearing the north/south numbers
to the left and adding them to the east/west
numbers. Where do you think the ships are? By
the biggest numbers? Is this always true? Lets
see.
East - West Data
21
BATTLESHIP
North/South Data
Next, smear the North/ South numbers to the left
and add them to what was in the grid
before. Are the battleships where the biggest
numbers are? All of the time? Some of the time?
East - West Data
22
BATTLESHIP
What if we can measure along the diagonals?
0
0
1
1
1
0
0
1
0
1
1
2
1
1
0
0
0
23
BATTLESHIP
Now add the diagonal information to our totals.
Are we doing any better? Are the
battleships where the biggest numbers are
more often?
24
Reconstruction from Projections
Crude Idea 1 Take each projection and smear it
back along the lines of integration it was
calculated over. Result from a back
projection b? (x,y) ? g? (R) ? (x cos ? y
sin ? - R) dR Adding up all the back projections
from all the angles gives, fback-projected (x,y)
? b? (x,y) d? p 8 fb (x,y) ? d? ? g?
(R) ? (x cos ? y sin ? - R) dR 0 -8
25
Lets calculate an impulse response to see how
the reconstruction does. g? (R) ? (R) That
is, ? (x,y) causes a ? (R) projection. By
calculating the back- projected image, fb (x,y),
we will be calculating the impulse response. hb
(x,y) fb (x,y) for this delta object Recall x
cos ? y sin ? - R r cos (? - f) - R hb (r,?)
? d? ? ? (R) ? (r cos (? - f ) - R) dR We can
simplify the integration over R by realizing that
the first delta function will be non-zero only
when R0. Then we will only have one integral
across ? p ? ? (r cos (? - f)) d? 0
26
Now ? f(x) ? ? (x - xn) / f(xn) n Only
one root (zero) in range of integral cos (? - f)
0 ? - f p/2 ? p/2 f
Since denominator has to be evaluated at
? p/2 f
27
Back-projected impulse response
hb(r) 1/r fb (x,y) f(x,y) 1/r Fb (?,?)
F (?,?) / ? since F1/r 1/ ?
28
Back projected image is blurred by convolution
with 1/r
Where intuitively does the 1/r come from? We
must account for this blurring to properly
reconstruct the image. How does 1/r convolution
look in image space? In frequency space?
29

• Low spatial frequency data is overweighted.
  Filter to compensate for this. Weighted by 1/?.
• Solution - filter each projection by ? to
  account for the uneven sampling density
• Steps
• Calculate projection
• Transform projection
• Weight with ?
• Inverse transform
• Back project
• Add all angles
• Mathematically,
• ? d? ? F -1 Fg? (R) ? ? (x cos ? y
  sin ? - R) dR

Solution
30
Filtered Back-Projection
The reconstruction described is known as filtered
back-projection. What is downside of the
described filter, ? ?
?
31
Filtered Back-Projection
What is downside of this filter?
?
Band limit filter to
? 0
Filter ??? rect (? / 2?0) c(R) ?
32
Convolution Back Projection
Instead of converting to frequency domain, use
convolution in the image domain p 8 ? d?
? g? (R) c (R) ? ( x cos ? y sin ? - R)
dR 0 -8 Each projection is convolved with
c (R) and then back projected. Describe c (R) C
(p) ? c (R) lim 2 (?2 - 4p2R2) / (?2
4p2R2)2 ? ?0
33
Better Design
1.0
- ? 0
? 0
c (R) ?0 2 sinc (2 ?0 R) - sinc 2 (?0
R) Actual Filters Ram-Lak Shepp-Logan
34
a) Ramachandran-Lakshminarayanan kernel
b) Shepp-Logan kernel. Solid lines represent
h(?) and circles hk
c) Representation of the filter functions
corresponding to hR and hS
