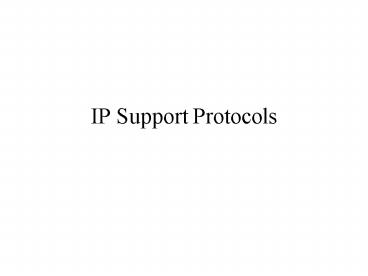

IP Support Protocols

1
IP Support Protocols
2
ARP

• Address Resolution Protocol
• Returns a MAC sublayer address when given an
  Internet address
• Commonly used in broadcast LANs so that two hosts
  can communicate using IP addresses instead of MAC
  sublayer addresses

3
ARP

• Solves the problem on a LAN of having to maintain
  the routing table of IP-MAC address for each
  host
• Automatic management
• Leverages broadcast properties of Ethernet, Token
  Ring
• Q How would ARP work w/o broadcast?

4
ARP (contd)
ARP packet containing 128.195.1.38?
ARP
Ethernet Address 0523f43de104 IP
Address 128.195.1.20
Ethernet Address 9822eef1901a IP
Address 128.195.1.38
Ethernet Address 12042c6e119c IP
Address 128.195.1.122
Wants to transmit to 128.195.1.38
Ignored
Answered
5
ARP (contd)
ARP response packet containing 9822eef1901a
Repl
Ethernet Address 0523f43de104 IP
Address 128.195.1.20
Ethernet Address 9822eef1901a IP
Address 128.195.1.38
Ethernet Address 12042c6e119c IP
Address 128.195.1.122
6
RARP

• Reverse Address Resolution Protocol
• RARP performs the inverse action of ARP
• RARP returns an IP address for a given MAC
  sublayer address
• Operationally, RARP is the same as ARP

7
Domain Name System (DNS)

• Problem statement
• Average brain can easily remember 7 digits
• On average, IP addresses have 10.28 digits
• We need an easier way to remember IP addresses
• Solution
• Use alphanumeric names to refer to hosts
• Add a distributed, hierarchical protocol (called
  DNS) to map between alphanumeric host names and
  IP addresses
• We call this Name Resolution

8
Domain Name Hierarchy
...
...
com
edu
net
gov
int
mil
org
ae
us
zw
rutgers
yale
yahoo
cnn
Country Domains
cs
eng
Generic Domains
9
Domain Name Management

• The domain name hierarchy is divided into zones
• Zone A separate portion of the DNS hierarchy
• No two zones should overlap
• Name servers
• In each zone, there is a primary name server and
  one or more secondary name servers
• Name servers contain two kinds of address
  mappings
• Authoritative mappings For hosts within the zone
• Cached mappings For previously requested
  mappings to hosts not in the zone

10
Domain Name Hierarchy
...
...
com
edu
net
gov
int
mil
org
ae
us
zw
rutgers
yale
yahoo
cnn
cs
eng
11
DNS Protocol

• When client wants to know an IP address for a
  host name
• Client sends a DNS query to the primary name
  server in its zone
• If name server contains the mapping, it returns
  the IP address to the client
• Otherwise, the name server forwards the request
  to the root name server
• The request works its way down the tree toward
  the host until it reaches a name server with the
  correct mapping

12
DNS ProtocolExample
remus
Scenario remus tries to resolve an IP address
for venus.cs.yale.edu using a recursive query
1
8
ns-lcsr
2
7
a.root-servers.net
3
6
yale.edu
4
5
cs.yale.edu
13
DNS ProtocolAnother Example
remus
1
2
ns-lcsr
Some servers do not support Recursive queries
3
4
a.root-servers.net
5
6
Scenario remus tries to resolve an IP address
for venus.cs.yale.edu using an iterative query
yale.edu
7
8
cs.yale.edu
14
DNS Packets

• Clients communicate with DNS servers using either
  TCP or UDP on port 53

0
15 16

31
Transaction Identification
Flags
Number of Questions
Number of Answer RRs
Number of Authoritative RRs
Number of Additional RRs
Questions (variable length)
Answer Resource Records (variable length)
Authoritative Resource Records (variable length)
Additional Resource Records (variable length)
15
DNS Packet Fields

• Transaction Identification Random number used
  to match client queries with name server
  responses
• Flags
• QR 0Query, 1Response
• opcode 0standard query, 1inverse query,
  2status request
• AA Authoritative answer
• TC Truncated DNS packet
• RD Recursion desired
• RA Recursion available
• rcode Return code. 0no error, 3name error

1 4 1
1 1 1 3
4
QR
opcode
AA
TC
RD
RA
(unused)
rcode
16
DNS Packet Fields (contd)

• Transaction Identification Random number used
  to match client queries with name server
  responses
• Number of Questions Number of DNS queries in
  the packet
• Number of Answer RRs Number of
  non-authoritative DNS responses in the packet
• Number of Authoritative RRs Number of
  authoritative DNS responses in the packet
• Number of Additional RRs Number of other DNS
  responses in the packet (usually contains other
  DNS servers in domain)
• Questions Answers Variable length fields to
  store DNS queries and DNS server responses

17
DNS Queries
DNS Packet Question field contains a sequence of
queries
Query name (variable length)
Query Type
Query Class
Query Name Contains an encoded form of the name
for which we are seeking an IP address Query
Type 1IP address, 2name server, 12pointer
record, etc. Query Class 1Internet address
18
Encoding Query Names

• DNS queries must be encoded in a special way
• Divide host address into segments whenever a
  period appears
• For each segment, store a byte representing the
  length of the segment followed by the letters in
  the segment
• Store a zero byte at the end of the query

19
Encoding Query NamesExample
remus
remus rutgers edu
NOTE These count fields are not the ASCII
characters 5, 7, 3 and 0!!!
20
DNS Responses
DNS Packet RR fields contain a sequence of
resource records
Domain name (variable length)
Type
Class
Time-to-live
Resource Data (variable
length)
Resource data length

• Domain Name Encoded domain name for query
• Type Class Same as for query (1IP
  1Internet)
• Time-to-Live How long this responses will be
  useful
• Resource Data Contains the four-byte IP address

21
DNS Compression

• DNS responses are often compressed to save space
• Compression algorithm
• If all or part of the domain name field appears
  earlier in the packet (e.g., in a prior RR), then
  store a pointer to the earlier copy instead
• Pointer 2-byte code

1
1
Index Pointer into DNS Response Packet
22
DNS Caching

• Going to the root server and then down the tree
  every time we need to resolve an address is
  inefficient
• Introduce address caching at name servers
• Store host-to-IP-address mappings from recently
  requested host names at name server
• When the same address is requested later, use the
  cached version at the local name server instead
  of recursively querying other name servers again

23
DNS CachingExample
remus
1
8
First time remus tries to resolve an IP
address for venus.cs.yale.edu using a recursive
query
Later venus.cs.yale.edu has been cached at
ns-lcsr. remus (and any other host that uses
ns-lcsr) will receive the cached IP address for
venus.cs.yale.edu
ns-lcsr
remus
2
7
1
2
a.root-servers.net
ns-lcsr
3
6
yale.edu
4
5
cs.yale.edu
24
DNS Negative CachingExample
remus
1
8
First time remus tries to resolve an IP
address for hoopla.cs.yale.edu using a recursive
query
Later hoopla.cs.yale.edu has been cached at
ns-lcsr. remus (and any other host that uses
ns-lcsr) will receive the cached answer for
hoopla.cs.yale.edu There is no such name
ns-lcsr
remus
2
7
1
2
a.root-servers.net
ns-lcsr
3
6
yale.edu
4
5
cs.yale.edu
25
Interface to DNS

• nslookup provides interface to DNS
• Default maps name-IP address or IP address-name

• nslookup remus.rutgers.edu
• Server ns-lcsr.rutgers.edu
• Address 128.6.4.4
• Name remus.rutgers.edu
• Address 128.6.13.3

26
Bootstrapping DNS

• Sockets work on IP address only
• Socket class does a DNS lookup if given the
  string name to connect to.
• Q how does a host contact the name server if all
  it has is the name and no IP address?

27
Bootstrapping DNS

• IP address of at least 1 nameserver must be given
  a priori
• or with another protocol (bootp, see later)
• File /etc/resolv.conf in unix
• Start - settings- control panel- network
  -TCP/IP - properties in windows

28
Default Domains

• When Host issues a query to DNS server, can add
  the default domain.
• Default domain added to end of every DNS query
• Domain search order specified in resolv.conf as
  well
