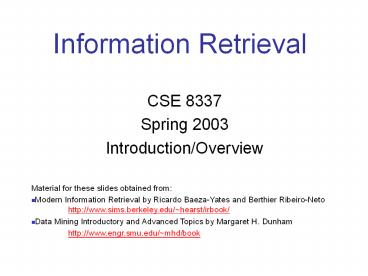

Information Retrieval

1
Information Retrieval

• CSE 8337
• Spring 2003
• Introduction/Overview
• Material for these slides obtained from
• Modern Information Retrieval by Ricardo
  Baeza-Yates and Berthier Ribeiro-Neto
  http//www.sims.berkeley.edu/hearst/irbook/
• Data Mining Introductory and Advanced Topics by
  Margaret H. Dunham
• http//www.engr.smu.edu/mhd/book

2
Motivation

• IR representation, storage, organization of, and
  access to information items
• Focus is on the user information need
• User information need
• Find all docs containing information on college
  tennis teams which (1) are maintained by a USA
  university and (2) participate in the NCAA
  tournament.
• Emphasis is on the retrieval of information (not
  data)

3
DB vs IR

• Records (tuples) vs. documents
• Well defined results vs. fuzzy results
• DB grew out of files and traditional business
  systesm
• IR grew out of library science and need to
  categorize/group/access books/articles

4
DB vs IR (contd)

• Data retrieval
• which docs contain a set of keywords?
• Well defined semantics
• a single erroneous object implies failure!
• Information retrieval
• information about a subject or topic
• semantics is frequently loose
• small errors are tolerated
• IR system
• interpret contents of information items
• generate a ranking which reflects relevance
• notion of relevance is most important

5
Motivation

• IR in the last 20 years
• classification and categorization
• systems and languages
• user interfaces and visualization
• Still, area was seen as of narrow interest
• Advent of the Web changed this perception once
  and for all
• universal repository of knowledge
• free (low cost) universal access
• no central editorial board
• many problems though IR seen as key to finding
  the solutions!

6
Basic Concepts

• The User Task
• Retrieval
• information or data
• purposeful
• Browsing
• glancing around
• cars, Le Mans, France, tourism

7
Basic Concepts
Logical view of the documents Document
representation viewed as a continuum logical
view of docs might shift
8
The Retrieval Process
9
Fuzzy Sets and Logic

• Fuzzy Set Set membership function is a real
  valued function with output in the range 0,1.
• f(x) Probability x is in F.
• 1-f(x) Probability x is not in F.
• EX
• T x x is a person and x is tall
• Let f(x) be the probability that x is tall
• Here f is the membership function

10
Fuzzy Sets
11
IR is Fuzzy
Reject
Reject
Accept
Accept
Simple
Fuzzy
12
Information Retrieval

• Information Retrieval (IR) retrieving desired
  information from textual data.
• Library Science
• Digital Libraries
• Web Search Engines
• Traditionally keyword based
• Sample query
• Find all documents about data mining.

13
Information Retrieval

• Similarity measure of how close a query is to a
  document.
• Documents which are close enough are retrieved.
• Metrics
• Precision Relevant and Retrieved
• Retrieved
• Recall Relevant and Retrieved
• Relevant

14
IR Query Result Measures
IR
