Title: SuitSat1 A Unique Satellite


1

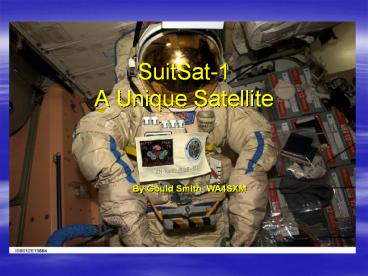

SuitSat-1 A Unique Satellite
By Gould Smith, WA4SXM
2
SuitSat was proposed by Sergey Samburov at the
International ARISS meeting in Washington, DC
October 2004 to honor the 175th Anniversary of
the Bauman Moscow State Technical University
3
ARISSis an international group promoting Amateur
Radio on the International Space Station
4
SuitSat is an out of service Russian Orlan space
suit with an Amateur Radio transmitter
5
The US ARISS group designed and built the SuitSat
controller, voice generator and switch box in a
month.
6
SuitSat was adapted to the spacesuit and tested
in Russia
7
SuitSat Flight Hardware ready to send to the ISS
8
The flight hardware was sent to the ISS aboard a
Progress supply craft in September 2005
9
Cosmonaut Valery Tokarev installs the hardware on
the Orlan space suit
10
Mounting the antenna and switch box to the helmet
11
SuitSat will be launched from the International
Space Station (ISS)February 3, 2006
12
The Expedition 12 crew of Bill McArthur and
Valery Tokarev will manually launch SuitSat
during a spacewalk (EVA)
13
SuitSat is ready for launch
14
Close-up of the handmade patch and CD with
pictures
15
The CD on SuitSat contains over 300 pieces of
international student art, pictures, poems and
signatures.
16
Before release the switches will be flipped to ON.
17
After release SuitSat will drift away from the ISS
18
SuitSat will orbit the earth every 90 minutes at
a height of 360 km (223 mi), but continually
losing altitude
19
The orbit will cover most of the populated areas
of the earth. So, many people can listen to the
SuitSat signal, during its short lifetime.
20
Messages from SuitSat
  • Voice telemetry (mission time, temperature,
    battery voltage)
  • Russian message
  • Europe student message (Spanish German)
  • Bauman Institute message in Russian
  • Canada student message in French
  • Mr. Alexandrov message in English
  • Japan student message in Japanese
  • USA student message in English

21
SSTV picture transmission
SuitSat will transmit a picture using different
tones to represent the colors. The transmission
is in Robot 36 format and it will take about 36
seconds to transmit the entire picture.
22
Listening to SuitSat
  • SuitSat transmissions will be weak and are on a
    frequency of 145.99 MHz.
  • Schools copying the transmissions from SuitSat
    can apply for a special certificate.

23
Additional Information
  • http//www.suitsat.org send contact reports
  • ARISS web site http//www.rac.ca/ariss
  • AMSAT web site http//www.amsat.org
  • http//www.issfanclub.com

24
Enjoy SuitSat, a unique satellite.This is
SuitSat-1 RS0RS!
