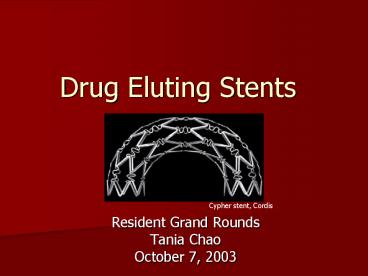

Drug Eluting Stents

1
Drug Eluting Stents
Cypher stent, Cordis

• Resident Grand Rounds
• Tania Chao
• October 7, 2003

2
Background

• Since the advent of angioplasty in 1977 and
  subsequently stenting in 1993, the field of
  percutaneous intervention has been plagued by the
  problem of restenosis.

3
Background..

• Rates of in-stent restenosis are reported to be
  10 59 in patients after PTCI
• In select patients with simple lesions, stenosis
  rates may be 10 20.
• In diabetic patients, small caliber vessels, and
  saphenous vein grafts, stenosis rates may be up
  to 59.

4
Pathophysiology of Restenosis
Robbins Pathologic Basis of Disease, 6th ed.
5
Pathophysiology of Restenosis..

• Elastic Recoil
• Reorganization of Thrombus
• Negative Remodeling
• Neointimal Proliferation
• Inflammation

6
Reorganization of Thrombus
Exposure to subintimal surfaces cause fibrin and
platelet aggregation.
Bennett et al.
7
Negative Remodeling
Injury to the adventitia results in collagen
synthesis and overall shrinkage of the vessel.

• From UptoDate Online

8
Neointimal Hyperplasia
Schwartz RS et al.

• Smooth muscle cell proliferation and migration
• Major cause of in-stent stenosis

9
Sirolimus

• Sirolimus (rapamycin) Immunosuppressant
• - Increases intracellular receptor p27kip which
  inhibits cell cycle progression

Marx SO et al
10
Paclitaxel

• Antimitotic Drug extracted from the Pacific Yew
  tree found in the Northwestern US and Canada
• Stabilizes microtubules to disrupt cell cycle
• Prevent smooth muscle proliferation

GW Stone, tctmd.com
11
Definitions

• In-stent luminal late loss minimal luminal
  diameter (MLD) immediately after procedure MLD
  at follow up
• Restenosis defined as greater than 50 stenosis
  at follow-up
• Target lesion in stent zone
• Target vessel in stent zone 5 mm proximal and
  distal
• Target vessel failure (TVF) cardiac death, MI,
  revascularization of target vessel
• Major adverse cardiac events (MACE) death, MI,
  revascularization

12
RAVEL
Randomized study with the sirolimus-eluting Bx
VELocity balloon expandable stent

• First randomized double-blind study to compare
  sirolimus-eluting stents to bare metal stents
• 238 patients were randomized to receive sirolimus
  stents or standard metal stents.
• Primary endpoints in-stent luminal late loss by
  angiography
• Secondary endpoints percentage of ISS of luminal
  diameter, rate of restenosis
• Clinical endpoints Major cardiac events
  cardiac death, MI, revascularization

13
RAVEL Inclusion Criteria

• Stable or unstable angina or silent ischemia
• Single primary target lesion in native coronary
  artery
• 2.5 3.5 mm in diameter
• Able to be covered by an 18 mm stent
• 51-99 stenosis
• TIMI flow rate of 1 or greater

14
RAVEL Exclusion Criteria

• Acute myocardial infarction
• Stenosis of left main that was unprotected
• Ostial lesion
• LVEF
• Thrombus within target lesion
• Intolerance of aspirin or plavix

15
RAVEL Patient characteristics
120 patients randomized to sirolimus stents and
118 randomized to standard
16
RAVEL Results
Angiographic results at 6 months
17
RAVEL Results
Frequency of Restenosis
18
RAVEL Results
MACE rates at 1 year

• Death
• Myocardial infarction
• Revascularization

19
RAVEL Results
Event Free Survival
20
RAVEL Conclusions

• The sirolimus stent resulted in significant
  decreases in all angiographic parameters.
• There was a significant decrease in need for
  revascularization at 1 year (17.8 vs. 0.8)
• There was no difference in complication rates.
• This results in a NNT of 4.4 patients to prevent
  one revascularization at 1 year.

21
TAXUS IV
The pivotal, prospective, Randomized Trial of the
Slow-rate Release Polymer-based Paclitaxel-Eluting
TAXUS stent

• Large scale multi-center trial to compare
  paclitaxel-coated stents to bare metal stents
• 1326 patients were randomized to receive TAXUS
  stents or standard metal stents.
• Primary Endpoints MACE rates at 1,4,9 months and
  yearly for 5 years.
• Angiography and IVUS were performed on a subset
  of patients at 9 months.

22
(No Transcript)
23
TAXUS IV Inclusion Criteria

• Single primary target lesion in native coronary
  artery
• 2.5 3.75 mm in diameter
• Lesion lengths 10 28 mm

24
TAXUS IV Exclusion Criteria

• Prior PTCI in target vessel in 9 months
• Acute myocardial infarction (In last 72 hours)
• Planned use of cutting balloon
• Prior or planned use of brachytherapy
• Ostial lesion, bifurcation, TIMI 0 or 1 flow,
  thrombus in vessel or excessive vessel tortuousity

25
TAXUS IV Results

• 662 patients were randomized to the TAXUS stent,
  652 patients were randomized to control stents.
• Baseline patient and target lesion
  characteristics were similar between the two
  groups.

26
TAXUS IV Results
Angiography Results on subset of 559 patients at
9 months
27
TAXUS IV Results

• Clinical Results
• 9 month MACE

28
TAXUS IV
Decrease in need for revascularization across all
vessel sizes and lesion lengths
29
TAXUS IV
Subset analysis Significant decrease in Need
for TLR in all groups except diabetics on insulin
and vessel diameters greater than 3 mm.
30
TAXUS IV Conclusions

• This study showed that the TAXUS stent
  significantly decreased the need for
  revascularization and is safe in a broader
  population than previously studied. This study
  included multiple stent placement and longer
  lesion lengths (up to 28 mm, previously up to 18
  mm)
• The RR for revascularization was 0.39 with a NNT
  of 13.7 to prevent one revascularization at 9
  months.

31
SIRIUS
Sirolimus-Eluting Stents versus Standard Stents
in Patients with Stenosis in a Native Coronary
Artery October 2, 2003

• Large-scale multi-center study to compare
  sirolimus-eluting stents to bare metal stents
• 1058 patients were randomized to receive
  sirolimus stents or standard metal stents.
• Primary endpoints Failure of target vessel
  death from cardiac causes, MI, repeat
  revascularization. Clinical follow-up at 1, 3,
  6, 9 months, every year up to 5 years
• Secondary endpoints IVUS and angiography results
  at 8 months

32
SIRIUS Inclusion Criteria

• Stable or unstable angina or signs of MI
• Single primary target lesion in native coronary
  artery
• 2.5 3.5 mm in diameter
• 15 30 mm in length
• 51-99 stenosis
• TIMI flow rate of 1 or greater

33
SIRIUS Exclusion Criteria

• Recent MI (
• Unprotected left main disease
• Ostial lesions or bifurcations
• TIMI 0 Flow (total occlusion)
• Angiographic evidence of thrombus
• Calcified lesions that could not be predilated
• EF

34
SIRIUS Results
533 patients were randomized to sirolimus stents
and 525 to the standard stents. Baseline
patient characteristics and target lesion
characteristics were well matched between the 2
groups An average of 1.4 stents were placed with
28 receiving overlapping stents.
35
SIRIUS Results
Results of Angiography at 8 months
36
SIRIUS Results
Clinical Outcomes at 9 months
37
SIRIUS Results
Event free survival in Sirolimus vs. Standard
stents up to 9 months.
38
SIRIUS Results

• Subgroup Analysis
• 26 of the studied population had diabetes.
• Restenosis in Diabetics 17.6 with sirolimus,
  50.5 with standard
• TLR in Diabetics 6.9 with sirolimus, 22.3 in
  standard

39
SIRIUS Conclusions

• This study evaluated a higher risk population
  than previous studies. 27 required overlapping
  stents, 41.6 had multi-vessel disease, and
  target lesions were longer (14.4 mm compared to
  9.58 mm in RAVEL).
• There was a significant decrease in the TLR in
  all subgroups analyzed, with a 91 decrease in
  the rate of restenosis overall, 75 decrease in
  the overall TLR and a 62 decrease in MACE rates.

40
Available Stents

• The CYPHER sirolimus-eluting stent is currently
  the only commercially available stent. It was
  approved by the FDA on April 24, 2003.
• The TAXUS paclitaxel-eluting stent is to be
  submitted this month for approval (already
  available in Europe, Australia, South America).

41
Conclusions
Reduction 70 36 64 61 95
75
NNT 15 17 8
14 4.4 8
42
Conclusions

• The use of drug-eluting stents has resulted in a
  dramatic decrease in the rates of in-stent
  stenosis and need for revascularization.
• Current use is limited by cost (3,195/stent) and
  availability. Initial cost offset by decreased
  need for revascularization?
• Studies need to compare drug-eluting stents to
  CABG for multi-vessel disease and brachytherapy
  for in-stent stenosis

43
Conclusions..

• Populations not studied chronic total
  occlusions, bifurcations, saphenous vein grafts,
  left main disease, acute myocardial infarction
• Plavix 3 or 6 months
• There is no difference in mortality between drug
  eluting stents and bare metal stents.
