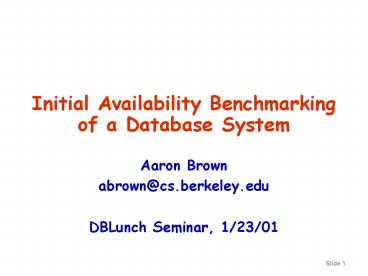

Initial Availability Benchmarking of a Database System

1
Initial Availability Benchmarking of a Database
System

• Aaron Brown
• abrown_at_cs.berkeley.edu
• DBLunch Seminar, 1/23/01

2
Motivation

• Availability is a key metric for modern apps.
• e-commerce, enterprise apps, online services,
  ISPs
• Database availability is particularly important
• databases hold the critical hard state for most
  enterprise and e-business applications
• the most important system component to keep
  available
• we trust databases to be highly dependable.
  Should we?
• how do DBMSs react to hardware faults/failures?
• what is the user-visible impact of such failures?

3
Overview of approach

• Use availability benchmarking to evaluate
  database dependability
• an empirical technique based on simulated faults
• study 3-tier OLTP workload
• back-end commercial database
• middleware transaction monitor business logic
• front-end web-based form interface
• focus on storage system faults/failures
• measure availability in terms of performance
• also possible to look at consistency of data

4
Outline

• Availability benchmarking methodology
• Adapting methodology for OLTP databases
• Case study of Microsoft SQL Server 2000
• Discussion and future directions

5
Availability benchmarking

• A general methodology for defining and measuring
  availability
• focused toward research, not marketing
• empirically demonstrated with software RAID
  systems Usenix00
• 3 components
• 1) metrics
• 2) benchmarking techniques
• 3) representation of results

6
Part 1 Availability metrics

• Traditionally, percentage of time system is up
• time-averaged, binary view of system state
  (up/down)
• This metric is inflexible
• doesnt capture degraded states
• a non-binary spectrum between up and down
• time-averaging discards important temporal
  behavior
• compare 2 systems with 96.7 traditional
  availability
• system A is down for 2 seconds per minute
• system B is down for 1 day per month

• Our solution measure variation in system quality
  of service metrics over time
• performance, fault-tolerance, completeness,
  accuracy

7
Part 2 Measurement techniques

• Goal quantify variation in QoS metrics as system
  availability is compromised
• Leverage existing performance benchmarks
• to measure trace quality of service metrics
• to generate fair workloads
• Use fault injection to compromise system
• hardware and software faults
• maintenance events (repairs, SW/HW upgrades)
• Examine single-fault and multi-fault workloads
• the availability analogues of performance micro-
  and macro-benchmarks

8
Part 3 Representing results

• Results are most accessible graphically
• plot change in QoS metrics over time
• compare to normal behavior
• 99 confidence intervals calculated from no-fault
  runs

• Graphs can be distilled into numbers

9
Outline

• Availability benchmarking methodology
• Adapting methodology for OLTP databases
• metrics
• workload and fault injection
• Case study of Microsoft SQL Server 2000
• Discussion and future directions

10
Availability metrics for databases

• Possible OLTP quality of service metrics
• transaction throughput
• transaction response time
• better of transactions longer than a fixed
  cutoff
• rate of transactions aborted due to errors
• consistency of database
• fraction of database content available
• Our experiments focused on throughput
• rates of normal and failed transactions

11
Workload fault injection

• Performance workload
• easy TPC-C
• Fault workload disk subsystem
• realistic fault set based on Tertiary Disk study
• correctable uncorrectable media errors,
  hardware errors, power failures, disk
  hangs/timeouts
• both transient and sticky faults
• injected via an emulated SCSI disk (0.5ms
  overhead)
• faults injected in one of two partitions
• database data partition
• databases write-ahead log partition

12
Outline

• Availability benchmarking methodology
• Adapting methodology for OLTP databases
• Case study of Microsoft SQL Server 2000
• Discussion and future directions

13
Experimental setup

• Database
• Microsoft SQL Server 2000, default configuration
• Middleware/front-end software
• Microsoft COM transaction monitor/coordinator
• IIS 5.0 web server with Microsofts tpcc.dll HTML
  terminal interface and business logic
• Microsoft BenchCraft remote terminal emulator
• TPC-C-like OLTP order-entry workload
• 10 warehouses, 100 active users, 860 MB database
• Measured metrics
• throughput of correct NewOrder transactions/min
• rate of aborted NewOrder transactions (txn/min)

14
Experimental setup (2)
DB Server
Front End
Adaptec3940
100mbEthernet
MS BenchCraft RTEIIS MS tpcc.dllMS COM
IBM18 GB10k RPM
SQL Server 2000
Intel P-III/450256 MB DRAMWindows 2000 AS
AMD K6-2/333128 MB DRAMWindows 2000 AS
DB data/log disks

• Database installed in one of two configurations
• data on emulated disk, log on real (IBM) disk
• data on real (IBM) disk, log on emulated disk

15
Results

• All results are from single-fault
  micro-benchmarks
• 14 different fault types
• injected once for each of data and log partitions
• 4 categories of behavior detected
• 1) normal
• 2) transient glitch
• 3) degraded
• 4) failed

16
Type 1 normal behavior

• System tolerates fault
• Demonstrated for all sector-level faults except
• sticky uncorrectable read, data partition
• sticky uncorrectable write, log partition

17
Type 2 transient glitch

• One transaction is affected, aborts with error
• Subsequent transactions using same data would
  fail
• Demonstrated for one fault only
• sticky uncorrectable read, data partition

18
Type 3 degraded behavior

• DBMS survives error after running log recovery
• Middleware partially fails, results in degraded
  perf.
• Demonstrated for one fault only
• sticky uncorrectable write, log partition

19
Type 4 failure

• Example behaviors (10 distinct variants observed)

Disk hang during write to data disk
Simulated log disk power failure

• DBMS hangs or aborts all transactions
• Middleware behaves erratically, sometimes
  crashing
• Demonstrated for all fatal disk-level faults
• SCSI hangs, disk power failures

20
Results summary

• DBMS was robust to a wide range of faults
• tolerated all transient and recoverable errors
• tolerated some unrecoverable faults
• transparently (e.g., uncorrectable data writes)
• or by reflecting fault back via transaction abort
• these were not tolerated by the SW RAID systems
• Overall, DBMS is significantly more robust to
  disk faults than software RAID on same OS!

21
Outline

• Availability benchmarking methodology
• Adapting methodology for OLTP databases
• Case study of Microsoft SQL Server 2000
• Discussion and future directions

22
Results discussion

• DBMSs extra robustness comes from
• redundant data representation in form of log
• transactions
• standard mechanism for reporting errors (txn
  abort)
• encapsulate meaningful unit of work, providing
  consistent rollback upon failure
• But, middleware was not robust, compromising
  overall system availability
• crashed or behaved erratically when DBMS
  recovered or returned errors
• user cannot distinguish DBMS and middleware
  failure
• system is only as robust as its weakest
  component!

compare RAID blocks dont let you do this
23
Discussion of methodology

• General availability benchmarking methodology
  does work on more than just RAID systems
• Issues in adapting the methodology
• defining appropriate metrics
• measuring non-performance availability metrics
• understanding layered (multi-tier) systems with
  only end-to-end instrumentation

24
Discussion of methodology
DO NOT PROJECT THIS SLIDE!

• General availability benchmarking methodology
  does work on more than just RAID systems
• Issues in adapting the methodology
• defining appropriate metrics
• metrics to capture database ACID properties
• adapting binary metrics such as data
  consistency
• measuring non-performance availability metrics
• existing benchmarks (like TPC-C) may not do this
• understanding layered (multi-tier) systems with
  only end-to-end instrumentation
• teasing apart availability impact of different
  layers

25
Future directions

• Direct extensions of this work
• expand metrics, including tests of ACID
  properties
• consider other fault injection points besides
  disks
• investigate clustered database designs
• study issues in benchmarking layered systems

26
Future directions (2)

• Availability/maintainability extensions to TPC
• proposed by James Hamilton at ISTORE retreat
• an optional maintainability test after regular
  run
• sponsor supplies N best administrators
• TPC benchmark run repeated with realistic fault
  injection and a set of maintenance tasks to
  perform
• measure availability, performance, admin. time, .
  . .
• requires
• characterization of typical failure modes, admin.
  tasks
• scalable, easy-to-deploy fault-injection harness
• This work is a (small) step toward that goal
• and hints at poor state-of-the-art in TPC-C
  benchmark middleware fault handling

27
Thanks!

• Microsoft SQL Server group
• for generously providing access to SQL Server
  2000 and the Microsoft TPC-C Benchmark Kit
• James Hamilton
• Jamie Redding and Charles Levine

28
Backup slides
29
Example results failing data disk

• Transient, correctable read fault
• (system tolerates fault)

Sticky, uncorrectable read fault (transaction is
aborted with error)
Disk hang between SCSI commands (DBMS hangs,
middleware returns errors)
Disk hang during a data write (DBMS hangs,
middleware crashes)
30
Example results failing log disk
Transient, correctable write fault (system
tolerates fault)

• Sticky, uncorrectable write fault
• (DBMS recovers, middleware degrades)

Simulated disk power failure (DBMS aborts all
txns with errors)
Disk hang between SCSI commands (DBMS hangs,
middleware hangs)
