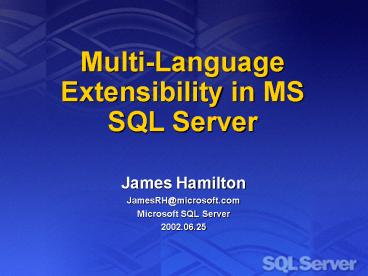

MultiLanguage Extensibility in MS SQL Server

1
Multi-Language Extensibility in MS SQL Server

• James Hamilton
• JamesRH_at_microsoft.com
• Microsoft SQL Server
• 2002.06.25

2
Agenda

• Common Language Runtime (CLR) Integration
  Overview
• Basic infrastructure
• Design philosophy
• 4 Ss Safety, Security, Scalability, Speed
• SQL Features Enabled
• CLR assemblies
• Scalar functions
• Relational functions
• Aggregate functions
• Stored Procedures
• Triggers
• Types and Methods
• SQL Types Package
• Access methods
• Systems Integration issues

3
Basic Infrastructure

• CLR Hosted inside SQL Server
• 4Ss safety, security, scalability, speed
• Run verified, type-safe code in process
• .NET Framework languages (VB, C, Java, )
• Competitive offerings
• Oracle DB2 in-proc Java JDBC
• Data access in process
• Based on ADO.NET
• Same programming model as middle-tier
• SQLTypes support
• SQL type semantics in managed code on client
  server tiers

4
Philosophy Safety Security

• Safety
• User code does not compromise integrity of
  server process
• Verifiable code
• Leverage CLRs code access security
• User code cannot call UI, create threads,
  synchronization, or call unmanaged code
• Security
• Access to SQL data from user code via SQL
  authorization model
• Access to system resources from user code via
  .NET Framework code permissions
• Administrators control permissions given to
  assemblies

5
Philosophy Security model

• Resources protected by permissions
• threads, files, unmanaged code access etc.
• API that exposes a resource
• introduces a demand for that permission
• Stack-walk based permission check
• every assembly in call-stack has permission
• Permissions granted to assemblies determined by
  machine and user-level security policy
• Allows host to add another policy layer to
  further restrict permissions

6
Philosophy 3 Permission Sets

• SAFESQL
• Internal computation plus data access
• No access to resources outside SQL Server
• No unmanaged calls
• Must be verifiable
• EXTERNAL ACCESS
• SAFESQL access to external resources
• Requires EXTERNAL ACCESS permission to create
• SQL Server will impersonate the caller
• Must be verifiable
• UNRESTRICTED
• No controls can call unmanaged, un-verifiable
• Only Sysadmin can create

7
Philosophy Scalability Speed

• Scalability
• As many concurrent users as TSQL
• Integrated SQL and runtime threads
• Collaboration between SQL and GC
• Speed
• Efficient data access in process
• Compiled user code, not interpreted as TSQL
• Fast transitions in/out of runtime

8
Philosophy Functions speed

• .NET functions approximating speed of TSQL inline
  expressions
• .NET Framework functions much faster than TSQL
  functions for complex expressions

9
Agenda

• CLR Integration Overview
• Basic infrastructure
• Design philosophy
• 4 Ss Safety, Security, Scalability, Speed
• SQL Features Enabled
• CLR assemblies
• Scalar functions
• Relational functions
• Aggregate functions
• Stored Procedures
• Triggers
• Types and Methods
• Access methods
• SQL Types Package
• Systems Integration issues

10
Development Steps
VS .NET Project
Runtime hosted inside SQL
11
Assembly Registration

• CREATE ASSEMBLY lib_geom FROM \\m1\types\geometry
  .dll
• WITH PERMISSION SET SAFE WITH AUTOREGISTER
• DROP ASSEMBLY lib_geom
• Assemblies stored in DB
• Backup, restore, etc. with data
• Code permissions assigned per assembly
• SafeSQL, external access, unrestricted
• Autoregister functions
• Using .NET custom attributes
• Assembly benefits
• Self-describing metadata types file
  dependencies
• Unit of deployment permissions versioning

12
ALTER Assembly

• Schema bound
• Cannot invalidate persistent data or indexes
• No tables with columns of UDT from this assembly
• No indexes on functions of that assembly
• Packaging considerations
• Place routines and types in different assemblies

13
Register A Function

• CREATE FUNCTION distance (
  _at_x1 int, _at_y1
  int, _at_x2 int, _at_y2 int ) RETURNS float
  EXTERNAL NAME lib_geomCPoint.Distance
  DETERMINISTIC
  RETURNS NULL ON
  NULL INPUT
• DROP FUNCTION distance
• Functions called from queries
• Static class functions
• Deterministic functions
• No SQL updates or access to global state
• Can be scalar or table-valued
• Using a function in a query
• SELECT s.name FROM Supplier s
• WHERE dbo.distance( s.x, s.y, _at_x, _at_y )

14
Call Function
SELECT name FROM Employee WHERE dbo.tax(salary)
50000
SQLSERVR.EXE
Common Language Runtime
Managed code
Unmanaged code
15
Register A Procedure

• CREATE PROCEDURE check_inventory
• EXTERNAL NAME lib_eventsCInventory.check_level

• DROP PROCEDURE check_inventory
• Procedures called directly
• Can contain SQL queries, updates, or DDL
• Can return results directly to client
• Not directly callable (as functions are) from
  queries

16
Register A Trigger

• CREATE TRIGGER supplier_event ON supplier
• AFTER INSERT, UPDATE
• EXTERNAL NAME lib_eventsCNotif.Supp_Event
• DROP TRIGGER supplier_event
• Similar to procedures
• with access to inserted deleted tables

17
UDT Introduction

• Extends SQL Server type system
• Complex structure associated behavior
• Managed classes in any CLR language
• Functionally subsume SQL-99 distinct types
• equivalent to structured types
• Other products Oracle Cartridges, Informix
  DataBlades, IBM DB Extenders

18
UDT Ordering values

• Two kinds of ordering supported
• Binary ordering indicated via CLR property
• public const bool IsByteOrdered
• Operator-based ordering
• Overloaded comparison operators
• public static SQLBool operator
• (, )

19
UDT Creating

• Registered as a type from an already registered
  assembly
• CREATE ASSEMBLY MapLib
• FROM \\mysrv\share\MapLib.dll
• CREATE TYPE Point
• EXTERNAL NAME MapLibBasetypes

20
UDT Instantiating

• Can be declared as column type
• Create table Cities(
• Name varchar(20),
• State varchar(20),
• Location Point DEFAULT new Point(0,0))
• Variables params of T-SQL .NET routines can
  UDTs

21
UDT Read operations

• Registered methods, properties, public data
  members can be use in SQL queries
• Methods assumed to be non-mutators unless marked
  using custom attribute
• Only non-mutators allowed in SELECTs
• Declare _at_p
• Set _at_p new point(32, 23)
• Select LocationDistance(_at_p)
• From Cities

22
UDT Ordering Operations

• Indexing, UNIQUE, PRIMARY KEY constraints
• Requires binary ordering support
• Inconsistent operator based ordering can cause
  corrupt indices, incorrect query results
• ORDER BY, GROUP BY, comparison operators
• If UDT supports binary ordering, always use
  binary ordering
• Else use overloaded operators rely on
  consistency and correctness of UDT implementation

23
UDT UDT Write Operations

• Constructor can be called using new operator
• UPDATE Cities
• SET Location new Point(12.3, 46.2)
• Properties and public data members can be
  modified through assignment
• UPDATE Cities
• SET LocationX 23.5,
• LocationY 23.5
• WHERE Name Anchorage

24
UDT Write Operations

• Methods marked mutators callable in UPDATEs
• UPDATE Cities
• SET LocationSetXY(23.5, 23.5)
• WHERE Name Anchorage
• INSERTs get values from string, binary form or
  from constructor invocation
• INSERT Cities(Anchorage, Alaska, 19.32.3)

25
UDAggs Required Methods

• Implement QP interface to aggregate values over a
  group
• Interface needed
• Initialize a group
• Pass values in the group to accumulate the
  aggregation
• Merge multiple groups (for parallel plans)
• Finalize computation and retrieve result

26
Creating UDAggs

• Aggregates implemented as set of methods packaged
  in a .NET class
• UDAgg is bound to a class in existing assembly
• CREATE AGGREGATE Concat(nvarchar)
• RETURNS nvarchar
• EXTERNAL MyLibConcat

27
UDAgg class definition e.g.

• Public class Concat
• //Private store for accumulating results.
• private SQLString agg
• //Optimizer properties
• public static bool IsNullOnNullsSet() return
  true
• public static bool IsNullOnEmptySet() return
  false
• //Aggregation interface
• public void Init()
• public void Accum(SQLString str)
• public void Merge(Concat otheragg)
• public SQLString Term()

28
Final Stage Access Methods

• Complete extensibility solution requires user
  defined access methods
• Informix supports adding access methods
• Expose locking, concurrency control, recovery,
  etc.
• Hard to make work in general few engineers able
  to write internal storage engine code well
• Many will try and they will have bugs hard on
  product quality image
• Solution Tailor existing access methods
• E.g. map spatial queries to queries over 2
  B-trees or single Z-transform
• Query rewrite language such that system can
  rewrite a function as an appropriate set of
  operations over 1 or more tables/indexes

29
CLR SQL Types Package

• Defines C, VB, Java types corresponding SQL
  Server types
• Reduce impedance mismatch between programming
  language data
• Consistent expression evaluation in mid-
  server-tier programming
• SQL Types library
• Managed classes system.Data.SQLTypes
• Provide SQL semantics
• Nullability, three-valued logic
• Precision scale in operations

30
SQL Types Example

• Tax function implemented with SQL types

using System

using System.Data.SQLTypes
public class myFinances



public static
SQLDouble tax( SQLDouble sal )


if ( sal 0.15 if (
sal 50000.0 sal 0.23 else return sal 0.35


31
Agenda

• CLR Integration Overview
• Basic infrastructure
• Design philosophy
• 4 Ss Safety, Security, Scalability, Speed
• SQL Features Enabled
• CLR assemblies
• Scalar functions
• Relational functions
• Aggregate functions
• Stored Procedures
• Triggers
• Types and Methods
• Access methods
• SQL Types Package
• Systems Integration issues

32
Integration In-Proc Data Access

• Goals
• Symmetric model
• Client, server, mid-tier
• Fully supported by dev tools
• VS dev environment including debug
• In same address space as server
• Dont marshal to TDS (tabular data stream)
• Dont loop-back through network interface
• Avoid unnecessary copies
• Avoid unnecessary transitions across
  managed/unmanaged (into VM) interface

33
Integration Process Model

• Thread integration
• SQL Server non-preemptive user-level thread
  scheduling
• Fibers multiplexed on O/S thread with thread
  migration
• Implication TLS storage used by VM wont work in
  SQL execution environment
• Lazy preemptive
• When SQL calls potentially blocking code it must
  go preemptive (allocate a thread)
• So thread required for each VM call expensive
• Lazy pre-emptive assume preemption not required
  and set timer to catch rare cases when thread
  allocation is needed
• Garbage collection blocks VM threads
• Hard on multi-user DB throughput
• GC doesnt directly suspend calls DB to suspend
  and DB schedules other non-VM hosted work

34
Integration Memory Management

• Memory allocation from DB system (rather than via
  O/S)
• Allows memory resources to be used for different
  purposes over time
• Garbage collection very general but DB systems
  often have more info
• e.g. free memory pool at end of statement
• Goal
• DB memory costing able to request memory from VM
  when needed
• Per user memory consumption tracking quotas

35
Integration Remaining Issues

• Assemblies (code) kept in database
• Dispatched to VM through buffers
• Stream interface would be better yet
• Support attention propagation (user interrupt)
  into VM
• Track all VM resources
• O/S portability layer tailored to DB execution
  environment
• Error containment/minimize multi-user impact of
  failures
• Out-of-proc execution
• Multiple VMs

36
Integration Query optimization

• Gather function cost statistics
• Value histograms, execution cost
• Reorder of predicate evaluation
• Based on cost of evaluation
• Function indexes
• Speed up expensive functions
• Extends computed column indexes and indexed
  (materialized) views

37
CLR Integration Summary

• DB extensibility without product stability risk
• Ability to add types and behavior w/o access to
  engine source code
• Scalable, safe, secure fast
• Rich server programming model
• Any CLR language
• Symmetric mid- server-tier model
• Better development environment
• Integrates SQL tools with Visual Studio
