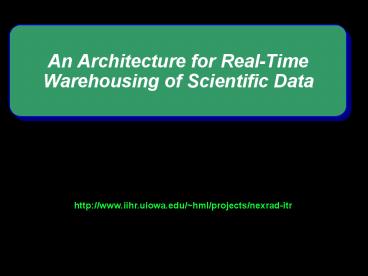

An Architecture for Real-Time Warehousing of
Scientific Data
Ramon Lawrence and Anton Kruger IIHR, University
of Iowa ramon-lawrence_at_uiowa.edu http//www.cs.uio
wa.edu/rlawrenc/ http//www.iihr.uiowa.edu/hml/p
rojects/nexrad-itr
2
Overview

• Our goal is to build a general archival
  architecture for storing and querying massive
  amounts of scientific data.
• This presentation will discuss our current
  architecture and how it is being used in a
  national project to archive weather radar data in
  the United States.
• The architecture achieves four basic design
  goals
• 1) scalable - can handle terabyte-scale data sets
• 2) extensible - types of data and metadata stored
  can change
• 3) inexpensive - uses cheap hardware and
  open-source software
• 4) usable - researchers can interact with the
  system in a variety of intuitive ways

3
Motivation

• The size of scientific data sets in many domains
  is increasing dramatically. This is placing a
  burden on IT infrastructure for storing,
  processing, and querying the data effectively.
• As sensor networks are deployed, this will get
  even worse.
• Although data warehousing techniques are
  well-known, it is an impediment to research to
  manage data sets of this scale.
• One of the most basic challenges is finding data
  relevant to the research (the data finding
  problem). To avoid browsing a large data set,
  suitable metadata describing the data must be
  generated, stored, and queryable by the
  researcher.

4
Desirable Architecture Properties

• Our architecture is designed with four key
  properties
• 1) scalable - The system can accommodate more
  data simply by adding low-cost PCs. Data files
  are transparently allocated and replicated across
  nodes without custom hardware/software.
• 2) extensible - The types of metadata generated
  and stored may change over time as the research
  evolves.
• 3) inexpensive - Low cost hardware and
  open-source software is used.
• 4) usable - Researcher can interact with data
  archive in a variety of ways including directly
  through C code, web forms, or web services.

5
Archive Architecture Overview
6
Architecture Components

• The components
• Extractor - is the only component specific to the
  data set. It is the code module for computing
  desired metadata statistics on the data. The
  output is a standard XML schema defined by the
  Loader.
• Loader - is the module responsible for storing
  metadata in the database and using rules to place
  data files on retrieval servers. This component
  is not data set specific. Different and evolving
  metadata is supported by a general database
  schema.
• Metadata archive - is a relational database that
  stores the metadata and pointers to the data.
  SQL queries are built using the various front-end
  tools (C code, web interface, etc.) to query
  metadata to find data with specific properties
  and file locations.
• Retrieval server - is any machine capable of
  running a HTTP server and acting as a data file
  store.

7
Case Study Archiving NEXRAD Data
Our goal is to provide the community with access
to the vast archives and real-time data collected
by the NEXRAD system.

• There are over 150 NEXt generation RADars
  (NEXRAD) that collect real-time precipitation
  data across the United States.
• The system has been operational for about 10
  years, and the amount of collected data is
  continually expanding.
• How a radar works

• A radar emits a coherent train of microwave
  pulses and processes reflected pulses.
• Each processed pulse corresponds to a bin. There
  are multiple bins in a ray (beam). Rotating the
  radar 360º is a sweep. After a sweep the radar
  elevation angle is increased, and another sweep
  performed. All sweeps together form a volume.

8
Usefulness of NEXRAD Data

• Although the NEXRAD system was designed for
  severe weather forecasting, data collected has
  been used in many areas including
• flood prediction
• bird and insect migration
• rainfall estimation
• The value of this data has been noted by a NRC
  report which labeled it a critical resource.
• Enhancing Access to NEXRAD DataA Critical
  National Resource. National Academy Press,
  Washington D.C. ISBN 0-309-06636-0, 1999

9
Archiving NEXRAD Data

• Despite its value, the archival system for NEXRAD
  data is unsatisfactory. The National Climatic
  Data Center (NCDC) maintains a tape archive of
  the RAW data, but provides few tools for finding
  relevant data and processing it for research.
• Some real-time data is distributed by University
  Corporation for Atmospheric Research (UCAR) using
  their Unidata Internet Data Distribution (IDD)
  system. However, this still requires users be
  able to
• extract and process a RAW data stream in
  real-time
• archive it appropriately
• generate metadata and indexes for retrieving it
  when required
• filter the data set to reduce the amount of space
  required
• develop custom tools for analysis and processing

10
Data Size Challenges

• Individual NEXRAD Level II scans are not large
  (300-1000 KB). However, archiving 150 radars
  that produce 10 scans per hour results in an
  archive rate of 36,000 scans/day 17 GB/day.
• Although the cost of storage has decreased
  dramatically (1 TB for under 10,000), this still
  requires a hardware investment.
• A major challenge is how do you find the data
  files of interest?
• Answer Queryable metadata that allows you to ask
  for files with certain properties without
  browsing the entire collection.
• One problem The metadata can be huge as well
  making it inefficient to search. Even worse,
  scientific metadata tends to change as research
  evolves.

11
User/Clients View
Find all the 2002 storms over the Ralston Creek
watershed with mean areal precipitation greater
than X mm, and with a spatial extent of more than
Z km2, with a duration of less than N hours. I
want the data in GeoTIFF.
Metadata Archive
12
Current Status and Future Work

• We have implemented a prototype version of the
  architecture that is currently archiving 30
  radars in real-time. Some basic statistics are
  being generated and can be used to retrieve data
  files of interest. Accessible at
• http//nexrad.cs.uiowa.edu
• Immediate plans
• Generate standardized metadata for use by
  hydrologists.
• Link NEXRAD data to basin information so that
  rainfall estimation and flood prediction can be
  performed.
• This research is supported by NSF ITR Grant ATM
  0427422 A Comprehensive Framework for Use of
  NEXRAD Data in Hydrometeorology and Hydrology.

13
NEXRAD Project Participants

• The University of Iowa (Lead)
• W.F. Krajewski (PI)
• A.A. Bradley, A. Kruger, R. Lawrence
• Princeton University
• J.A. Smith (PI)
• M. Steiner, M.L.Baeck
• National Climatic Data Center
• S.A. Delgreco (PI)
• S. Ansari
• UCAR/Unidata Program Center
• M. K. Ramamurthy (PI)
• W.J. Weber

14
An Architecture for Real-Time Warehousing of
Scientific Data
Ramon Lawrence and Anton Kruger IIHR, University
of Iowa ramon-lawrence_at_uiowa.edu http//www.cs.uio
wa.edu/rlawrenc/ http//www.iihr.uiowa.edu/hml/p
rojects/nexrad-itr
Thank You!
15
Extra Slides...
16
NEXRAD Data Management Challenges

• Storing NEXRAD Level II data results in many
  interesting database challenges
• Data size - A historical archive of NEXRAD data
  consumes many terabytes of space.
• Flexibility/Variability - Unlike commercial
  warehouses, the types of data and metadata that
  should be stored in the warehouse is not well
  understood and evolves over time.
• Real-Time response - The data should be loaded
  and queryable in real-time as it is received from
  the radars.
• Scientific Workflow - It is desirable to capture
  and share sequences of calculations on the raw
  data (scientific workflows) and develop tools
  that seemlessly interact with the archive.

17
Flexibility Challenges

• Ideally, the system should allow arbitrary
  metadata to be associated with NEXRAD files that
  can easily be added, updated, and queried.
• Unfortunately, relational databases do not nicely
  handle variable information. Although there are
  some known schema designs that can handle
  variability, they are inefficient for large data
  sets.
• Good news This is not unique to hydrology.
  Researchers in other domains are building grids
  to share data/metadata and face the same
  challenges (e.g. GriPhyn - physics grid).
• Bad news Representing and querying variable data
  (especially within a relational database) is an
  active research problem.

18
Flexibility Example

• One way to represent variable metadata on a
  datafile in a relational database is to have a
  single table
• metadata(dataFileId, attributeName,
  attributeValue)
• Example
• Data file 1 has three attributes ArealCoverage,
  MaximumReflectivity, MinimumReflectivity. Data
  file 2 has two attributes, and file 3 has only 1.
• Note that this schema allows any (variable)
  number of attributes per file.
• A challenge How would you return all files that
  have ArealCoverage gt 5 and MaximumReflectivity gt
  20?

Answer Join two copies of table metadata
together.
19
Scientific Workflow

• A workflow is a sequence of steps that is
  performed on data.
• Workflows have received considerable attention
  where documents must be routed between
  individuals.
• Think of a funding proposal being internally
  routed through your university.
• A scientific workflow is a sequence of steps
  performed on scientific data. Each step uses as
  input the output of the previous step. An
  example workflow in hydrology
• retrieve the raw data files of interest
• remove ground clutter and Anomalous Propagation
  (AP)
• calculate estimated rain fall
• map calculations to a basin
• Our goal is to support such workflows.
• How to represent and store intermediary products?
• How to make the tools/algorithms interoperable?

20
A Watershed or Basin
A watershed is an area of land that drains water,
sediment and dissolved materials to a common
receiving body or outlet.
21
NRC Quote on NEXRAD Data Archiving
the limited use of ground-based radar rainfall
data outside of the operational environment is
partially attributed to the lack of
research-quality data products and partially to
poor archiving practices.
NRC Report, 2002
22
Metadata
Basic
Find all the 2002 storms over the Ralston Creek
watershed with mean areal precipitation greater
than X mm, and with a spatial extent of more than
Z km2, with a duration of less than N hours. I
want the data in GeoTIFF
Derived/Complex
Find all the 2002 storms over the Ralston Creek
watershed with mean areal precipitation greater
than X mm, and with a spatial extent of more than
Z km2, with a duration of less than N hours. I
want the data in GeoTIFF
23
CUAHSI
Consortium of Universities for the Advancement of
Hydrologic Sciences (CUAHSI)
