Raster Graphics

1

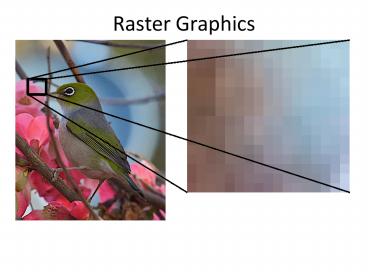

Raster Graphics
2
Raster Graphics

• An image is considered to be made up of small
  picture elements (pixels).
• Constructing a raster image requires setting the
  color of each pixel.

Used for photo-realistic images and complex
drawings.
3
Raster Image Capture

• A raster image can be captured in a number of
  ways
• Digital Camera
• Scanner
• Drawing Software
• An image ends up being described in an image file
  as a series of pixels.
• Common file types are JPEG, GIF, TIFF, PNG.

4
Raster Image Capture

• Digital Camera Example

5
Raster Image Capture

• Digital Camera Example

6
Raster Image Capture
7
Raster Graphics

• The pixels can be described at varying bit depth
  resulting in different numbers of colors

RGB color 24 bits 8 bit R, 8 bit G, 8 bit B
256 256256 16,722,216 colors
8
Raster Image Files
The contents of a raster image file can be
conceptualised as per the table below
9
Raster Graphics Images

• How clear an image appears when it is viewed on a
  screen or printed depends on size and resolution.
• Image size is the number of pixels in a row times
  the number of rows. For example, 800 x 600 or
  1280 x 1024.
• Image size can also be measured in pixels. An 800
  x 600 image contains 480000 pixels. One million
  pixels 1 Megpixel.
• Image size remains constant unless changed in a
  software package.

10
Raster Graphics Images

• Image resolution depends on the number of pixels
  printed or displayed per inch (ppi). It has
  nothing to do with the original image size.

11
Raster Graphics Images

• The physical size of an image depends on the
  image size and the resolution of the printer.
• For example
• How large will a 1200 900 image be when printed
  on a 300dpi printer?
• 1200/300 4 inches high
• 900/300 3 inches wide

12
Raster Graphics Images

• The same 1200 x 900 image displayed on a monitor
  (72ppi) will be 16.67 x 12.5 inches.
• Q. What happens if we stretch an image on the
  screen beyond its displayed size?
• A. It gets pixellated

13
Raster Graphics Images

• Q. What happens if we shrink an image on the
  screen from its displayed size?
• A. ?

14
Image Dithering

• Most image manipulation software provides a
  palette of Web Safe Colors. There are normally
  256 colors.
• How is an image with a 16 million color palette
  converted to a 256 color palette?

Dithering
15
Image File Formats

• What are they and how do you choose?
• There are many file types to cope with the
  problem of raster image files being very large.
• An 800 x 600 image will contain 480,000 pixels.
• Each pixel requires 24 bits (3 bytes) to describe
  the levels of RGB.
• File size 1,440,000 bytes 1.4Mbytes (approx)

16
Image File Formats

• 2 ways to reduce image file size
• Reduce number of colors (dither or choose nearest
  color)
• Compress pixel data
• 2 types of compression
• Loseless look for more efficient ways of
  storing pixel data
• Lossy accept some quality loss in image in
  order to decrease file size

17
Image File Formats

• Loseless Compression
• Look for a recurring pattern in an image file and
  use a shortcut.
• Eg.
• WWWBlBlBlBlBlWWW
• could become
• 3W5Bl3W

18
Image File Formats

• JPEG
• Joint Photographic Experts Group
• Best for photographs that contain many colors
• Large compression retaining quality
• Lossy compression discards pixel data the eye
  is least likely to notice
• Amount of compression adjustable

19
Image File Formats

• GIF
• Graphics Interchange Format
• Creates a table of 256 colors
• Analyses image to choose best 256 colors
• Replaces commonly occurring patterns with
  abbreviations
• Loseless for images with less than 256 colors
  otherwise lossy.

20
Image File Formats

• TIFF
• Tagged Image File Format
• Loseless
• Large files
• Works on both Mac and PC
• Supports any color depth
• Not recognised by many browsers

21
Image File Formats

• PNG
• Portable Network Graphics
• High compression rate
• Loseless

22
Raster Images

• Is it possible for a 3MP camera to produce a 10
  inch x 8 inch print at 300dpi with high quality?

23
Color Schemes

• When choosing colors for a web site and images to
  go on a web site the color scheme chosen for the
  site is important. Colors should be chosen using
  a color wheel.

• Complimentary colors sit on opposite sides of the
  color wheel. For example http//www.naturestable
  .com/
• Analogous colors sit on opposite sides of the
  color wheel. For example - http//www.gorillaglue
  .com/

24
Raster vs Vector Images

• List 4 key differences between Raster and Vector
  images
