Title: Making a Business Case for Ergonomics


1

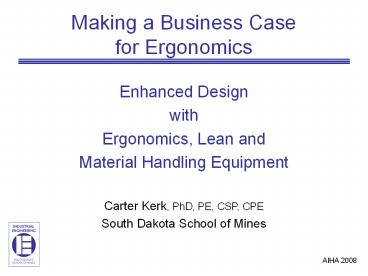

Making a Business Casefor Ergonomics
  • Enhanced Design
  • with
  • Ergonomics, Lean and
  • Material Handling Equipment
  • Carter Kerk, PhD, PE, CSP, CPE
  • South Dakota School of Mines

2
My Colleagues
  • Dr. Jennifer Karlin
  • South Dakota School of Mines
  • Jon Walder
  • Boeing
  • Jim Galante and Ray Niemeyer
  • Material Handling Industry of America

3
Our Project
  • Explore the cross-over between Ergonomics and
    Lean, particularly in the context of Material
    Handling Equipment

4
Lean, Ergonomics, or Material Handling?
  • Categorize each of the following as Lean,
    Ergonomics, or Material Handling

5
Traditional Operations
High Inventory Level
Poor Quality
Equipment Downtime
Long Changeover
Large Lot Sizes
Supplier Quality
Poor Response Time
Variation
Poor Layout
Uptime Problems
Poor TPM
Engineering Problems
6
Lean Systems Approach
7
The Workplace System
Machines
Human
Raw Materials
Tools
.
Environment
Workstation
8
Ergonomics
  • Fitting the task to the person
  • Designing for human capability
  • Using the best work methods
  • Minimizing injuries and their costs
  • Improving productivity quality

9
Ergonomics OutcomesConsistent With Lean
  • Improved Morale
  • Reduced Absenteeism
  • Reduced Turnover
  • Enhanced Corporate Culture / Climate
  • Increased ownership in the processes by the
    people actually doing the work

10
Information Gleaned
  • The following slides are some information gleaned
    from our study
  • From
  • Talking to MH Equipment
  • Manufacturers
  • Distributors
  • Users
  • Within the context of Lean and Ergonomics

11
Misconception
  • Many people and companies know that
    transportation and handling are not value-added
    activities
  • Therefore, they feel material handling equipment
    should be eliminated or avoided

12
Misguided Intentions
  • Many users try to act Lean when they order MH
    equipment, but they
  • dont get expert advice
  • dont use it properly or optimally

13
Original Design vs. the Fix
  • Most MH Equipment manufacturers find their
    products being used to fix poorly designed
    systems
  • Funds are rarely budgeted for this
  • Users rarely do adequate planning for material
    handling and ergonomics
  • Then spend more money getting a Fix
  • Original design opportunities are more rare
  • More cost effective

14
Ergonomics Naiveté
  • Many users are still naïve about Ergonomics
  • They think an ergonomics program consists of
    using rubber mats and customized handles
  • Education of users remains a challenge and an
    opportunity

15
Value of Best Practices and Successful
Applications
  • Users like to see evidence that others have
    successfully solved problems similar to theirs

16
MH EquipmentDistributor Networks
  • MH Equipment Distributors
  • Usually represent many manufacturers
  • Try to provide solutions with off-the-shelf
    equipment from among a variety of manufacturers
  • Refer the most complicated cases back to
    manufacturers

17
MH EquipmentCustom Engineered Solutions
  • Custom designed solutions
  • Engineering/Ergonomics Consultants
  • Can be expensive
  • MH Equipment manufacturers
  • Usually provide free custom engineering

18
Electronic MH Equipment
  • The US trails Europe in the use of electronic
    material handling equipment
  • But use of electronic MH equipment is growing
    fast in the US
  • Better reliability and versatility
  • Ability to track usage, number of cycles, etc.
  • Broadening use of intelligent systems

19
Integrating Lean Ergonomics Utilizing
Material Handling Assist Device Solutions for a
More Productive Workplace
Examples from Industry
20
  • Positech Manipulator
  • Supports 50 lb tool
  • Tightens bolts to secure transmission to frame
  • Floats to desired height and location with easy
    effort
  • High torque tool, but no torque transmitted to
    operator
  • Virtually no fatigue experienced by operator

21
  • Positech Muffler Manipulator
  • Mufflers weigh 70 lb
  • Retrieve from storage rack
  • Move in to position with very little effort
  • Maintain neutral torso and upper extremities
  • Previously
  • Manual lifting twisting
  • Position above shoulder
  • Physically fatiguing job!

22
  • Tire Assembly Manipulator
  • 500 6000 lbs
  • Easily grasped and moved into position
  • Easy to match conveyor height and speed
  • Rotated for proper alignment
  • Previously
  • One operator rolls a 500 lb tire into place
  • Required precise timing to match conveyor height
    and speed
  • Shoved tire on manually
  • Rotated tire manually for alignment
  • Very physically fatiguing

23
  • MegaStar MegaLift (Vertical Carousel Storage)
  • Programmable positioning Adjustable workstation
    height PowerZone access
  • Injection molding unit (left) was formerly stored
    on the floor
  • WV National Guard, Black Hawk Helicopter repair
    organized, faster, security

24
  • Gorbel Free-Standing Workstation Crane
  • Can be assembled in almost any workspace
  • Electronic, easy to maneuver
  • 30 foot spans
  • 2000 lb capacity
  • Vacuum end-effectors (in this example)

25
  • Lift Tables
  • Adjustable Height
  • Tilt
  • Rotate
  • Low friction top
  • Invertors

26
What About Ergonomics/Lean and Material Handling
Equipment?
  • Tenets
  • Ergonomists appreciate the use of Material
    Handling Equipment as Engineering Controls
  • Most ergonomists are not aware of the breadth and
    depth of Material Handling Equipment

27
Material Handling Equipment
  • You probably are not aware of all MHE categories
  • You probably are not aware of recent developments
    with MHE
  • Learn from other successful applications

28
Are You Familiar With These?
  • Containers
  • Conveyors
  • Cranes
  • Hoists
  • Manipulators
  • Monorails
  • Pallets
  • Racks
  • Shelving
  • Automatic Guided Vehicles
  • Casters / Wheels
  • Horizontal Vertical Carousels
  • Intelligent Assist Devices
  • Lift / Tilt / Turn Tables
  • Tool Balancers
  • Vertical Lift Modules
  • Vertical Reciprocating Conveyors
  • Voice Activated Controls

29
Resources to Learn More
  • Available from the EASE Product Council of the
    Material Handling Industry of America (MHIA)
  • EASE (Ergonomic Assist Systems Equipment)
  • www.mhia.org
  • Ergonomic Guidelines for Manual Material Handling
    (EGMMH)
  • White Paper Integrated Lean Thinking
    Ergonomics Utilizing Material Handling Assist
    Device Solutions for a Productive Workplace

30
The Bottom Line
  • Material handling is an enabler for effective
    Lean and Ergonomics systems.
  • ALL effective material handling systems are also
    supporting Lean and/or Ergonomics.

31
Contact Information
  • Carter Kerk, PhD, PE, CSP, CPE
  • carter.kerk_at_sdsmt.edu
  • 605-394-6067

Industrial Engineering Department South Dakota
School of Mines 501 East St. Joseph Street Rapid
City, SD 57701
