Chapter 20 Materials Selection Problem 211

1

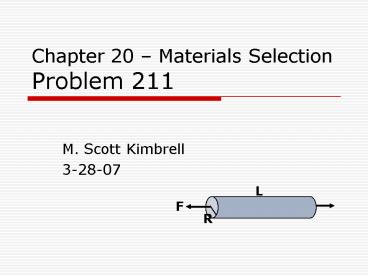

Chapter 20 Materials SelectionProblem 211

• M. Scott Kimbrell
• 3-28-07

2
The Problem
3
The problem with The Problem.

• Yield strength cannot be greater than tensile
  strength!
• For plain carbon steel 1020, sYS 350 MPa, sYS
  420 MPa.

4
Mechanical Design

• Functions
• Support tensile load without breaking/plastically
  deforming.
• Constraints
• L and F are fixed.
• d ?L is bounded.
• Dont break s
• Dont plastically deform s
• r is a free variable.

5
(No Transcript)
6

• Objectives
• Minimize mass, m
• Equations correspond to constraints and
  objective

7
Determine performance indices.
Example calculation
8
Rankings by the PIs

• Ranking PId
• Brass
• Ranking PIs
• Steel

9
PId Graph ? vs. E
10
PId Graph ? vs. E
X
11
PId Graph ? vs. E
X
X
12
PId Graph ? vs. E
X
X
X
13
PId Graph ? vs. E
Brass X
X
X
14
PIs Graph ? vs. sYS
15
PIs Graph ? vs. sYS
X
16
PIs Graph ? vs. sYS
X
X
17
PIs Graph ? vs. sYS
Brass X
X
X
18

• Ranking by PId with table values
• Brass
• Ranking by PIs with table values
• Steel
• Ranking by PId ? vs. E graph
• Brass
• Ranking by PIs ? vs. sys graph
• Brass

19
Conclusions

• Final rank
• Brass
• Aluminum and Titanium both are good picks for the
  aircraft application.
• Dont just plug blindly into PI equations!
• Here the simple 1-D method works, but in a
  situation with bending or torsional
  considerations, a more sophisticated model is
  required.

20
More Relevance to Materials

• Aluminum is used extensively in aircraft
  construction due to its high strength-to-weight
  ratio (Wikipedia)
• The titanium 6AL-4V alloy accounts for almost
  50 of all alloys used in aircraft applications
  (Wikipedia).
