Decision Tree

1

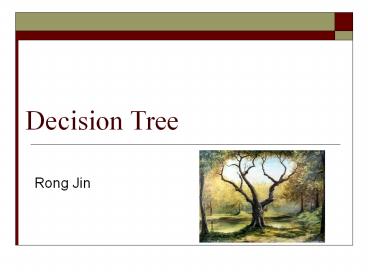

Decision Tree

• Rong Jin

2
Determine Milage Per Gallon
3
A Decision Tree for Determining MPG
mpg cylinders displacement horsepower weight accel
eration modelyear maker 4 low low low high 75to7
8 asia
good
From slides of Andrew Moore
4
Decision Tree Learning

• Extremely popular method
• Credit risk assessment
• Medical diagnosis
• Market analysis
• Good at dealing with symbolic feature
• Easy to comprehend
• Compared to logistic regression model and support
  vector machine

5
Representational Power

• Q Can trees represent arbitrary Boolean
  expressions?
• Q How many Boolean functions are there over N
  binary attributes?

6
How to Generate Trees from Training Data
7
A Simple Idea

• Enumerate all possible trees
• Check how well each tree matches with the
  training data
• Pick the one work best

Too many trees
How to determine the quality of decision trees?
Problems ?
8
Solution A Greedy Approach

• Choose the most informative feature
• Split data set
• Recursive until each data item is classified
  correctly

9
How to Determine the Best Feature?

• Which feature is more informative to MPG?
• What metric should be used?

Mutual Information !
From Andrew Moores slides
10
Mutual Information for Selecting Best Features
From Andrew Moores slides
11
Another Example Playing Tennis
12
Example Playing Tennis
Humidity
(9, 5-)
Wind
(9, 5-)
High
Norm
Weak
Strong
(6, 1-)
(3, 4-)
(3, 3-)
(6, 2-)
13
Predication for Nodes
What is the predication for each node?
From Andrew Moores slides
14
Predication for Nodes
15
Recursively Growing Trees
cylinders 4
cylinders 5
cylinders 6
Original Dataset
Partition it according to the value of the
attribute we split on
cylinders 8
From Andrew Moore slides
16
Recursively Growing Trees
From Andrew Moore slides
17
A Two Level Tree
18
When should We Stop Growing Trees?
19
Base Cases

• Base Case One If all records in current data
  subset have the same output then dont recurse
• Base Case Two If all records have exactly the
  same set of input attributes then dont recurse

20
Base Cases An idea

• Base Case One If all records in current data
  subset have the same output then dont recurse
• Base Case Two If all records have exactly the
  same set of input attributes then dont recurse

Proposed Base Case 3 If all attributes have
zero information gain then dont recurse
Is this a good idea?
21
Old Topic Overfitting
22
What should We do ?
23
Pruning Decision Tree

• Stop growing trees in time
• Build the full decision tree as before.
• But when you can grow it no more, start to prune
• Reduced error pruning
• Rule post-pruning

24
Reduced Error Pruning

• Split data into training and validation set
• Build a full decision tree over the training set
• Keep removing node that maximally increases
  validation set accuracy

25
Original Decision Tree
26
Pruned Decision Tree
27
Reduced Error Pruning
28
Rule Post-Pruning

• Convert tree into rules
• Prune rules by removing the preconditions
• Sort final rules by their estimated accuracy
• Most widely used method (e.g., C4.5)
• Other methods statistical significance test
  (chi-square)

29
Real Value Inputs

• What should we do to deal with real value inputs?

30
Information Gain

• x a real value input
• t split value
• Find the split value t such that the mutual
  information I(x, y t) between x and the class
  label y is maximized.

31
Conclusions

• Decision trees are the single most popular data
  mining tool
• Easy to understand
• Easy to implement
• Easy to use
• Computationally cheap
• Its possible to get in trouble with overfitting
• They do classification predict a categorical
  output from categorical and/or real inputs

32
Software

• Most widely used decision tree C4.5 (or C5.0)
• http//www2.cs.uregina.ca/hamilton/courses/831/no
  tes/ml/dtrees/c4.5/tutorial.html
• Source code, tutorial

33
The End
