Title: Multiple SINKs defined to represent discreet load pockets i


1

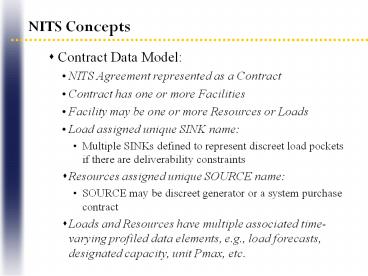

NITS Concepts
  • Contract Data Model
  • NITS Agreement represented as a Contract
  • Contract has one or more Facilities
  • Facility may be one or more Resources or Loads
  • Load assigned unique SINK name
  • Multiple SINKs defined to represent discreet load
    pockets if there are deliverability constraints
  • Resources assigned unique SOURCE name
  • SOURCE may be discreet generator or a system
    purchase contract
  • Loads and Resources have multiple associated
    time-varying profiled data elements, e.g., load
    forecasts, designated capacity, unit Pmax, etc.

2
NITS Data Requirements
  • Contract
  • Base Information
  • Customer
  • Term
  • Eligibility Attestation
  • Load
  • Base Information
  • Name (SINK assigned by TP)
  • Description
  • Type (non-interruptible/interruptible)
  • Load Control Area
  • Point of Delivery
  • Profiles
  • Load Forecast
  • Interruptible Capacity

3
NITS Data Requirements
  • Deliverability Constraints
  • Only required if need to limit maximum scheduled
    MWs from specific Resource (SOURCE) to specific
    Load (SINK)
  • Similar to a TSR/TSN
  • ATC Impact Matrix
  • Distribution Factor type representation of impact
    on ATC from SOURCE to SINK

4
NITS Data Requirements
  • Resource
  • Base Information
  • Name (SOURCE assigned by TP or GCA)
  • Description
  • Type (?)
  • Generating Control Area
  • Point of Receipt
  • Profiles
  • Unit Size
  • Designated Capacity
  • Re-dispatch Cost
  • Dispatch Merit Order or Block Loading

5
NITS Transaction Concepts
  • Transaction Requirements
  • Designate Resource (Capacity)
  • Undesignate Resource
  • Designate Load (Capacity)
  • Undesignate Load
  • Transaction Processing
  • Transaction is a request to change Contract
  • On approval, changes are reflected in the
    Contract
  • Transaction itself does not represent the
    transmission service
  • Transaction log is audit record of designations,
    undesignations, etc.

6
NITS Transaction Concepts
  • Short Term Requests (daily, weekly, monthly)
  • Requests for additional Firm or Secondary Network
    service
  • Should these be handled as a TSR?
  • Special Transactions
  • Similar in nature to Redirect with respect to
    ATC/AFC
  • Redesignation of network resource
  • Undesignation with simultaneous request for PTP
    Service
  • Tag Processing
  • Validations performed against the Contract not a
    TSR

7
Preemption and Competition
  • Concepts Influenced by BPA and MAPP
  • Issues to Address
  • Duration and Pre-confirmation Priority
  • Conditional Service
  • Right of First Refusal
  • Identify Potential Challenger
  • Fails AFC/ATC
  • Flat MW profile over entire duration of request
  • Preemption
  • Unilaterally SUPERSEDE all pending requests of
    lower priority that enhance ability to offer
    service to higher priority request.
  • Introduces potential for gaming?

8
Preemption and Competition Continued
  • Competition
  • Identify all conditional reservations of lower
    priority that would enhance ability to offer
    service to higher priority request (Challenger)
    AND that could be accommodated if extended to
    match Challenger (Defenders).
  • Extend (partial) offer of service to Challenger.
  • If Challenger fails to confirm service, no action
    required.
  • If Challenger confirms service
  • RECALL capacity At Risk from all Defenders to
    meet Challengers capacity
  • Issue MATCHING COUNTEROFFER requests to all
    Defenders for ROFR
  • As each Defender confirms match, RECALL
    capacityfrom Challenger

9
Preemption and Competition Continued
  • Driving Principles
  • Secure higher priority service before initiating
    any recalls of lower priority reservations
  • Eliminate customer confusion on what is required
    to initiate ROFR by creating MATCHING request on
    Customers behalf
  • Ensure MATCHING requests are feasible, but not
    necessarily simultaneously feasible
  • Simultaneously infeasible MATCHING requests go to
    first to CONFIRM
