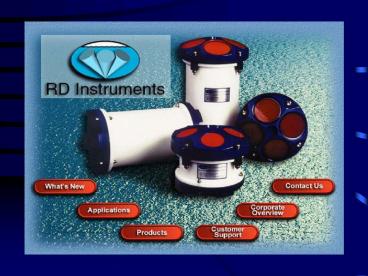

RD Instruments

1
(No Transcript)
2
RD Instruments presents ...
3
Our most requested
Win
ADCP
MOORED ADCP software
4
(No Transcript)
5
WinADCP
MOORED ADCP software

• Quick to learn easy to use
• Effective productive analysis
• Makes impressive reports
• Saves you time, money, frustration
• Windows 95-98-NT

6
QUICKLY TRANSFORMS DATA INTO INFORMATION

• Vivid
• Visual
• Concise
• Complete

7
SEE THE DETAILS WITHOUT DROWNING IN THEM
8
QUICKLY FIND THE DIAMONDS IN YOUR DATA

• GREATER FREEDOM FOR DATA ANALYSIS -- ZOOM FROM
  MONTHS TO MINUTES
• Ready reference to big picture
• Explode sections of interest
• Select only those data you want to view
• Immediate access to data you point at

9
HEADERINFO
BIG PICTURE
EXPLODED VIEW
PROFILESCROLL
TIME SERIES
10
BIG PICTURE VIEW

• Stay in touch with the sum of the parts --- SEE
  entire data record at all times

11
TOTAL DEPLOYMENT
ELAPSED HOURS FOR DEPLOYMENT
DEPTH BIN POSITIONS AND WATER DEPTH
VISUAL TIME HISTORY
ENSEMBLE NUMBERS THRU DEPLOYMENT
DEPLOYMENT START STOP INFORMATION
12
ZOOM ON ACTION AREAS

• Pick a hotspot and clarify its contents

13
EXPLODED VIEW
WATER COLUMN VIEW
PROFILEVIEW
CURRENT METER VIEW

• Rapid analysis with multiple interactive views

14
EXPLODED VIEW
SELECT DEPTHS FOR TIME SERIES DISPLAY
SELECT TIME FOR VELOCITY PROFILE
VELOCITY PROFILE DISPLAY
MULTIPLE TIME SERIES DISPLAYS
VISUAL DATA SUMMARIES
15
WinADCPADCP DATA DISPLAY TOOLKIT

• MOUSE-BASED ACCESS KEEPS YOU MOVING
• Pick/scroll velocity profiles
• Click/display any time series
• Zoom/explode hot spots
• Roll/reveal data in depth cells

16
VELOCITY PROFILES

• Mouse click to pick
• Clearly see the speed and direction structure
• Use auto or manual scroll to see changes

PROFILE IDENTIFIERS
17
SEE VELOCITY CHANGES
SCROLL THROUGHTIME CHANGES
18
TIME SERIES WINDOW
VISUAL STATISTICS
SEVERAL DATA TYPES
SELECTABLE DEPTH BINS

• Intercompare the time history of several data
  types at selectable depths

19
TIME SERIES WINDOW

• Pick a hotspot in the time series zoom further
  to see its contents

20
DATA ZOOM WINDOW
SIGNAL
NOISE

• Instantly see and quantify the signal and noise
• Experiment with smoothing level
• Review statistics to contrast data

STATISTICS
21
INSTANT ACCESS TO DEPTH CELLS DATA TYPES
22
DEPTH CELL VIEWER
ENSEMBLE 2966 BIN 15

• Instantly display data in any depth cell you
  roll over

23
FAST ANSWERSWhat Happened Out There?

• Understand clearly with video views
• Quickly find and focus on diamonds in your data
• Feel confident about your results
• Publish impressive data displays

24
RDIsMOORED ADCP software
Win
ADCP
