• Power Supply, Fan

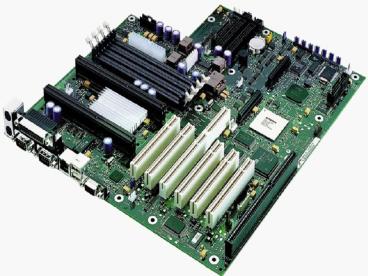

• Motherboard
• CPU, Co-processor
• Heat Sinks
• Memory Chips (RAM,ROM,CMOS)
• Expansion Slots/Expansion Cards
• Sound Card, Network Card, Video Card, Video
  Capture Card
• System Clock
• Buses (System and Expansion(ISA,PCI,AGP, USB and
  1394 bus)
• Ports (back side of system unit)
• Serial, Parallel, Video,USB, USB 2.0,Midi, SCSI,
  Wireless,1394 or FireWire
• keyboard/Mouse, Hard Drive, Monitor, Printer,
  other external devices
• Hard Drives, Floppy Drives, Cables
• Glue Chips

3
CPU
CPU

• Chip a small piece of semi conducting material
  that integrated circuits are etched. An
  integrated circuit is a pathway capable of
  carrying electrical current and contains millions
  of transistors or gates that open or close the
  circuit for the signal
• One of the most important ones is the CPU

4044 Chip
8088 Chip 5 MgHz
4
Central Processing Unit

• What is the central processing unit (CPU) ?

• Interprets and carries out basic instructions
  that operate a computer
• Also calledthe processor

5
Common Processors Intel, AMD, IBM and Motorolla

• Server Processors
• Xeon MP, Itanium2, Pentium, Opteron, Athlon
• Desktop Processors
• Pentium D with Dual Core Processor, Pentium4
  (with HT technology), Celeron, Duron,PowerPC
• Mobile Processors
• Pentium Duo, Celeron M, Pentium M, Mobile
  Athlon, Duron

6
Central Processing Unit

• What are the components of the CPU?

7
Central Processing Unit

• What is the control unit?

• Directs and coordinates operations in computer

Control unit repeatsfour basic operations

• Fetch - obtain program instruction or data item
  from memory
• Decode - translate instruction into commands
• Execute - carry out command
• Store - write result to memory

8
Central Processing Unit

• What is a machine cycle?

• Four operations of the CPU comprise a machine
  cycle
• Also called instruction cycle

9
Central Processing Unit

• What is the arithmetic/logic unit (ALU) ?

• CPU component that performs execution part of the
  machine cycle

10
Central Processing Unit

• What is pipelining?

• CPU begins executing second instruction before
  completing first instruction
• Results in faster processing

Machine Cycle (without pipelining)
Machine Cycle (with pipelining)
Instruction 1 Instruction 2 Instruction
3 Instruction 4
11
Central Processing Unit

• What is a register?

• Temporary storage area that holds data and
  instructions

12
Central Processing Unit

• What is the system clock?

• Synchronizes all computer operations
• Each tick is clock cycle

13
Central Processing Unit

• How do personal computer processors compare?

14
Data Representation

• Two states
• Binary numbering system
• ASCII (American Standard Code for Information
  Interchange)
• EBCDIC (Extended Binary Coded Decimal Interchange
  Code)

15
Data Representation

• What are two popular coding systems to represent
  data?

• ASCII - American Standard Code for Information
  Interchange
• EBCDIC - Extended Binary Coded Decimal
  Interchange Code

16
Data Representation

• How is a character sent from keyboard to computer?

Step 1 Press letter T
17
Memory

• What is memory?

• Temporary storage area for operating system,
  application programs, and data
• Consists of one or more chips on motherboard
• Each byte stored in unique address

18
Memory

• How is memory measured?

• By number of bytes available

19
Memory

• What are two types of system unit memory?

20
Memory

• What is random access memory (RAM)?

• Memory chips that can be read from and written to
  by processor
• Most RAM is volatile
• The more RAM a computer has, the faster it
  operates

21
Types of Memory

• RAM
• Memory chips in the system unit
• Stores programs and data
• Volatile
• Dynamic RAM (DRAM), must be re-energized
• Synchronous DRAM (SDRAM) is faster because it is
  synchronized to the system clock, 7.5 ns
• DDR SDRAM, 3ns
• RDRAM (Intel and Rambus is trying to push),
  expensive, 1.25ns
• Static RAM (SRAM)
• Faster and more reliable than DRAM
• Does not have to be re-energized as frequently as
  DRAM
• Used for special purposes

22
RAM

• Often smaller in size than processor chips
• Packaged on circuit boards
• SIMM (single in-line memory module) old
  technology current computers use------
• DIMM (dual in-line memory module)
• RIMM (Rambus in-line memory module
• Typically SDRAM chips

23
Memory

• What is cache?

• Helps speed computer processes by storing
  frequently used instructions and data
• Also called memory cache, cache store, or RAM
  cache
• L1 cache built in processor
• L2 and L3 cache not built in processor (depends
  on currency)
• L2 advanced transfer cache most common

24
Cache

• Memory cache, cache store or RAM cache
• Level 1 (L1), small capacity (8 Kb to 64 Kb),
  built directly on the processor
• Level 2 (L2), external cache, on SRAM chips,
  slightly slower than L1 cache but has a larger
  capacity, 64 KB to 4 MB, newer machines L2 cache
  is built on the processor and called Advanced
  Transfer cache- these machines can also have L3
  cache (external)
• Machines with cache (10-40 faster)
• Most current machines have 256K to 512K of cache

25
Memory

• What is read-only memory (ROM)?

• Memory chips that contain data, instructions, or
  information that is recorded permanently

26
Memory

• What is CMOS?

27
Memory

• What is memory access time?

• Speed at which processor can access data from
  memory directly
• Measured in nanoseconds (ns), which is one
  billionth of a second

• It takes 1/10 of a second to blink your eye a
  computer can perform up to 10 million operations
  in same amount of time

28
Expansion Slots and Expansion Cards

• What is an expansion slot?

• An opening, or socket, where circuit board is
  inserted into motherboard
• Expansion card inserted in expansion slot

29
Expansion Slots and Expansion Cards

• How are expansion cards used?

30
Ports

• What is a port?

• Connects external devices to system unit

31
Ports

• What is a serial port?

• Transmits one bit of data at a time
• Used to connect slow-speed devices, such as
  mouse, keyboard, modem

32
Ports

• What is a parallel port?

• Connects devices that can transfer more than one
  bit at a time, such as a printer

33
Ports

• What is a universal serial bus port (USB) ?

• Connector that supports newer peripherals and
  plug and play
• Other popular ports include 1394, MIDI, SCSI, and
  IrDA

34
PORTS
USB, USB 2.0 Can connect multiple devices
MIDI Connects an instrument to the system
unit SCSI High speed parallel port used to
connect disk drives, 7 devices can be
attached 1394 (Fire Wire) Can connect multiple
devices requiring fast connections Digital video
camcorders, color printers, digital cameras and
DVD drives
35

• What is a bus?

• Channel that allows devices inside computer to
  communicate with each other
• System bus connects processor and RAM
• Bus width determines numberof bits transmitted
  at one time
• Word size determines numberof bits processor can
  interpretand execute at a given time

36
Buses

• What is an expansion bus?

• Allows processor to communicate with peripherals

37
Expansion Bus

• Expansion bus allows the CPU to connect to the
  peripheral device attached to the expansion card
• ISA (Industry Standard Architecture)
• Mouse, Modem, Soundcard
• PCI (Peripheral Component Interconnect)
• Hard Drive (4 X faster than ISA)
• AGP (Accelerated Graphics Port) which is
• actually a bus
• Bus designed for a video card (AGP video card)
• USB (Universal Serial Bus), multiple devices,
• USB connects to the PCI bus

38
Market Tiers

• Top Tier
• IBM, Apple, Compaq and HP
• Second Tier
• Newer companies with high sales volume
• Gateway, Dell, Packard Bell
• Third Tier
• Smaller Start up Companies
• Mail Order

39
Marketing Channels

• Computer Retail Store
• Mail Order Suppliers
• Value added Reseller
• Manufacturer Direct
