Medtronic CareLink Monitor Model 2490G

1

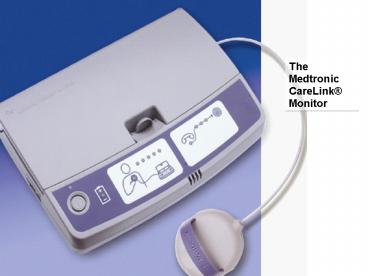

The Medtronic CareLink Monitor
2

• Delivered directly to your home

• Comes with
• VCR tape
• Manual
• Reference Card
• Phone cord

3

• Patient will transmit as directed by your clinic
• Routine checks
• Post shock or symptomatic checks
• Patient can transmit any time of day
• Use 911 for emergencies

4
Battery Compartment 4 AA-size batteries
5
One end of the phone cord gets inserted
here Other end is inserted directly into a phone
jack in the wall
6
To change prefix for dial-out phone
number (Example In hotel, switch to 9) Works
with touch-tone or rotary phones (Tone vs. pulse
switch)
7
Power button - Check battery alignment
8

• Monitor battery indicator
• Replace as needed

9

• Antenna
• Place on top of implantable device
• Hold pause

10
Device read Progress lights
11
Device Read Progress lights
12
Device Read Progress lights
13
Device Read Progress lights
14
Device Read Error light Re-position antenna to
get read light green
15
Device Read Progress lights
16
Device reading is complete Double beep will
sound indicating end of read phase
17
Phone transmission Progress lights
18

• Phone transmission
• Successful
• Indicated by double beep
• Green bulls-eye light illuminates
• Monitor shuts off by itself after 2 minutes

19
QUESTIONS?
