Title: NX100 Network Audio


1

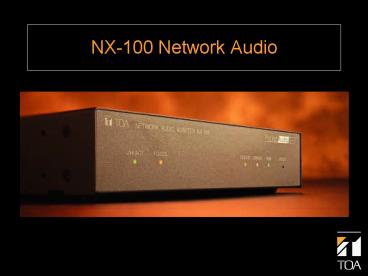

NX-100 Network Audio
2
NX-100 Features
  • IP-Addressable Audio Codec
  • Codes/decodes analog audio, RS-232 data and
    contact closures to IP packets for transmission
    over LANs, WANs or the Internet
  • IP-based transport
  • Simultaneous send receive audio
  • Easy to install and configure

3
NX-100 Benefits
  • Uses existing data networks
  • Occupies minimal network bandwidth
  • Audio encryption prevents eavesdropping
  • Manage from any web browser
  • Fault tolerance (network and power) ensures
    reliable transmissions

4
NX-100 Network Audio
  • Audio Quality vs Bandwidth
  • 50 - 14k Hz (136 kbps)
  • 50 - 7k Hz (68 kbps)
  • 50 - 3.4k Hz (34 kbps)

5
NX-100 Network Audio
8 Control Outputs
Audio Output
24 VDC Input
Audio Input(mic/line)
RS-232 Port
Ethernet Port
8 Trigger Inputs
6
NX-100 Network Audio
Bi-directional Audio
LAN/WAN Internet
Contact Closure and Serial Data
7
NX-100 Network Audio
LAN/WAN Internet
8
NX-100 Network Audio
9
NX-100 Network Audio
  • Audio Input
  • microphone
  • telephone paging
  • music source
  • tone generator

Ethernet 10/100BaseT
LANs, WANs the Internet!
10
NX-100 Network Audio
Audio Output
Audio Input
RS-232 Data
RS-232 Data
(8) Trigger Inputs
(8) Contact Outputs
Ethernet 10/100BaseT
11
NX-100 Network Audio
Unicast to 4 units
12
NX-100 Network Audio
1
2
LAN/WAN
64
Multicast to 64 units(LAN/WAN only)
13
NX-100 Network Audio
LAN/WAN Internet
1
8
Activate transmissions withPC or Contact Closure
14
NX-100 Network Audio
Java-based Installation, Management and Operation
software
15
NX-100 Web Browser Control
Web browser control and monitoring from any
network PC!
16
NX-100 Network Audio
Programmable software buttons assignable to
broadcast patterns and/or control outputs.
17
NX-100 Applications
LAN/WAN Internet
Audio Monitoring Surveillance
18
NX-100 Applications
LAN/WAN Internet
Wide Area Paging
19
NX-100 Applications
LAN/WAN Internet
Two-way Intercom
20
NX-100 Network Audio
