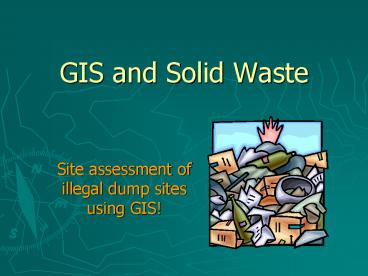

GIS and Solid Waste

1
GIS and Solid Waste

• Site assessment of illegal dump sites using GIS!

2
Site Assessment Form

• The State asks for the following information
• (among other)

• Waste area(s) dimensions
• Soil Type
• Mean annual precipitation
• Is waste area within a flood plain? (Y/N)
• Slope pitch
• Show detailed site map(s)

3
Waste Area Dimensions

• GPS the outline of the dump.
• The GIS software calculates the surface area,
  perimeter etc.
• Estimate the depth of the dump and calculate the
  rough volume of trash to be removed.

4
Disposal Site Characteristics

• 0.11 526
• 4.0
• 3.0

5
Identify the Responsible Party

• Locate the site.
• Verify the property the site is located on.
• Identify the responsible party.

• i Owner Greg Garbage Donna Dump
• Mail PO Box 123
• Trash City
• Site 999 Darn Ln.
• Refuse Village

6
Access additional Information from various shape
files

• Soil
• Mariposa Formation

Precipitation 27 35 in
Floodplain Not in floodplain
7
Risk Assessment

• Put the dot on the map

8
Risk Assessment

• Put the dot on the map

Measure to the dwellings
9
Risk Assessment

• Put the dot on the map

Measure to the dwellings
Measure to well and creek
10
Risk Assessment

• Put the dot on the map

Measure to the dwellings
Measure to well and creek
Add contour lines for the relief
11
Slope

• The GIS software calculates the pitch of the
  slope

12
Slope

• The GIS software calculates the pitch of the
  slope

i The dump site is located on a slope with a 15.1
to 20 pitch
13
Risk Assessment
NO ? ? 340, 900 and 1430 ? ? NO ?
(creek) Maps are enclosed! YES NO

• Put the dot on the map

Measure to the dwellings
Measure to well and creek
Add contour lines for the relief
14
Visualization of Dump Sites

• Include maps with the Site Assessment Form

15
Visualization of Dump Sites

• If appropriate include a 3D view of the dump
  site.

?
View
16
Remediation of Illegal Dump Sites
Software requirements...Tools applied...

• GPS Unit Pathfinder Office, ArcPad or
  TerraSync
• Select (attribute) ArcView
• Measure ArcView
• Slope Calculation 3D-Analyst
• 3D visualization 3D-Analyst
