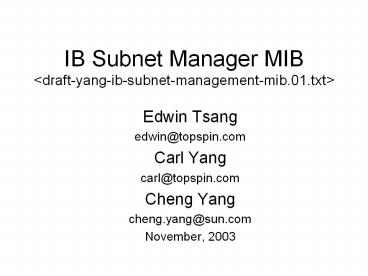

IB Subnet Manager MIB <draft-yang-ib-subnet-management-mib.01.txt>

1
IB Subnet Manager MIBltdraft-yang-ib-subnet-manage
ment-mib.01.txtgt

• Edwin Tsang
• edwin_at_topspin.com
• Carl Yang
• carl_at_topspin.com
• Cheng Yang
• cheng.yang_at_sun.com
• November, 2003

2
MIB Overview

• Enables out-of-band management of IB Subnet
  Manager configuration
• Enables out-of-band configuring and monitoring of
  IB fabrics.
• This is an update of a previous submitted draft,
  dated October 2001.

3
Subnet Manager Configuration

• Subnet Manager Configuration Table.
• List of all the SMs on the device.
• Configuring SMs running parameters
• Admin/Running Status
• Sweep Interval
• Response Timeout
• LID range
• Default LMC
• Master-Standby Polling configuration. etc..

4
Node and Port Management

• Node Information Table
• List of all the nodes and their NodeInfo per
  subnet.
• Port Information Table
• List of all the ports and their PortInfo per
  subnet.
• Configuring of PortInfo attributes
• LinkWidth/Speed, PortState, LinkDownDefState,
• MKeyProtBits, etc.

5
Switch Management

• Switch Information Table.
• List of all the SwitchInfo per subnet.
• Configuring of SwitchInfo paramenters
• DefaultPort, DefaultPrimaryMulticastPort,
• DefaultNonePrimaryMulticastPort,
• Packet LifeTime, etc.

6
Partition Management

• Partition Table
• List of Partitions, and Partition Membership per
  subnet.
• Partition Configuration Group
• Create or delete partitions.
• Add or remove partition memberships per port.

7
Multicast Management

• Multicast Group Table
• List of MC Group Information per subnet
• Multicast Member Table
• List of MC Memberships for each MC Group.

8
Discovery of other SMs

• Subnet Manager Information Table
• Discovers a list of all the SMs per subnet.
• List the status of each SM.

9
Physical Topology/Link

• Link Table
• List of all the Link Records per subnet, allows
  application to have physical topology information.

10
Path/MultiPath Information

• Path Information Request Table
• Allows query of PathInfo.
• Path Information Result Table
• Retrieve the PathInfo query result.
• MultiPath Information Request Table
• Allows query of MultiPath Info.
• MultiPath Information Result Table
• Retrieve the MultiPath query result.

11
Trace Record

• Trace Information Request Table
• Query for the TraceInfo
• Trace Information Result Table
• Retrieve result of TraceInfo query.

12
Serivce Management

• Service Table
• List of Service Records
• Service Association Table
• List of Service Associations
• Add or delete Service Name-Service Key mapping.

13
SL/VL Management

• Switch SL to VL Map Table
• List SLToVL map per switch.
• CA SL to VL Map Table
• List SLToVL map per CA.
• VL Arbitration Table
• List of VL Arbitration attributes.

14
Work to be done.

• Trap Definititions.
• Compliance statements.
• Security Considerations.
