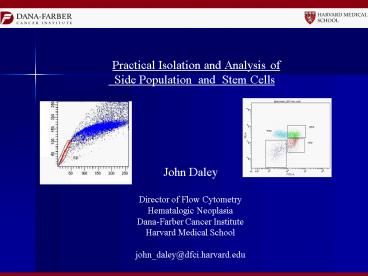

Practical Isolation and Analysis of
Side Population and Stem Cells
John Daley Director of Flow Cytometry Hematalogic
Neoplasia Dana-Farber Cancer Institute Harvard
Medical School john_daley_at_dfci.harvard.edu
2
Why Stem Cells?

• Differentiate to correct disease
• Leukemic Stem Cell derived or innate
• Long Term /Short term stem cells
• Rare Event Phenomena

3
Flow Cytometry and Stem CellsTHE DFCI EXPERIENCE

• Bone Marrow / PBL Transplants G-CSF mobilization
• ISHAGE protocol for CD34 enumeration
• Murine HSC and PRO Sorting
• Tissue specific cell line detection and sorting
• SP identification and sorting
• Miscellaneous CD34 cord blood

4
Multiple Gating CD34 ENUMERATION Absolute
Count by Flow Cytometry

• Bead of known concentration mixed in with sample
• Two color Immunofluorescence CD34 PE and CD45
  FITC
• Identification based on Antigen reactivity and
  MFI
• Scatter back gating used for final absolute
  count
• enumeration

5
CD34 ENUMERATION Absolute Count by Flow
Cytometry
Calibrated Bead System
Process control Using CD34 Cell line
6
Multiple Gating strategies help identify low
frequency functional subpopulations
7
Multicolor(5) Minor populations Four way
sorting Treg Story
CD45ra FITC CD127 PE CD25 PE-CY5 CD4 PE-CY7 CD3
PAC BLUE
8
Treg Post Sort Reanalysis
9
POST SORT REANALYSIS HUMAN PBL CD3CD4 CD45RA
CD45RA-
Treg/Teffector/ --
98.4
99.4
97.1
99.9
10
Rare Event Tetramer Sorting 0.007
bead auto compensation
11
Tetramers Ag Specific T cellsSmall events
bright labelheavy gating
12
Rare Events The Needle in the Haystack Story
Burn the Haystack
13
Rare Events and Flow Cytometry

• Minimal residual disease (MRD)
• GFP top 0.1
• Outliers
• PBL stem cells
• Bone marrow stem cells
• Polychromatic subpopulations
• Tetramers Ag Specific T cells
• 1N pre Sperm cells G. Daley

14
Rare Events and Flow CytometryPractical
Considerations

• Number of events acquired increase for
  statistical accuracy
• Controls reduce number of cells available for
  analysis/sorting
• Reanalysis of sorted populations conundrum
• Proper Controls
• Is it real or an artifact?

15
Rare Events and Flow CytometryExperimental
Design Strategy

• Create artificial sample that mimics real life
  scenario (Spike , beads and Cells) MRD, Stemtrol,

• Employ Image to visualize desired subpopulations
  post sort
• Recertify artificial situation post sort
• Judiciously clean instrument and measure
  background particle value

16
4 way Bead sort to check Instrument Accuracy
Protocol

• Beads needed
• 1 Accudrop cat345249
• 2 Calbrite APC cat 340487
• 3 Sphero Rainbow Fluorescent particles
  3.0-3.4um(mid range FL1) cat 556298
• 4   "           "                "
  "            "          ( brighter?)     cat
  556291
•
•
• First click on new experiment icon and used
  default pmt setting 250, 300, 500,etc.....
• and made single graphs of all pmts  log  except
  FALS and two parameter of Hoechst blue vs. APC
  Cy7
•
• Second Add a few drops of each bead to separate
  tube add 1xpbs(200ul)    and run/
  record 5,000-10,000events
•
• Third     Adjust  APC Cy7 down to 385 volts when
  run Accudrop  to get beads on scale. Use
  Biexponential display option
•
• Four mix beads together one at a time and run
  and gate on where peak showed up on apccy7 vs.
  hoechst blue histogram (that way can see where
  each bead  size scattered  based on color gating)
•
• Fifth mixed all beads together and create
  four  distinct sort regions on  APC-CY7 vs.
  Hoechst Blue graph and did a four way sort for
  about 4 minutes sorted about 1.2 million.  Use
  custom sort precision settings which is  0 32 0
  (VERY VERY IMPORTANT!) I did not have them very
  concentrated and sorted at 11 flow rate (bad for
  core stream)
•  reanalyze each fraction with a pbs wash between
  each tube.

17
Simple Four Way bead Sort
18
4 way bead sort Spiked with Fixed Murine Spleen
cells
19
Rare Events and Flow CytometryInstrument
considerations

• Optimal alignment
• Tight side streams
• Deflection channel choice
• Take some neg to get stream
• Add carrier bead
• 2x sort for enrichment /purity
• Collection vessel options
• Gating strategy

20
GFP 0.7-? 99 20,000 sec
21
Isolation of minor subpopulations G. Daley
Lab (Melissa H)
Mouse embryonic stem cells/ Sperm cell
Precursors Nature December 10, 2003
Picture credit Niels Geijsen
22

Rare Event Gating Strategy Pre Sperm
23
Murine Hematopoietic Stem Cell/Progenitor
SortKoichi Akashi LabDFCI
Sort purpose Gene Analysis for PCR
amplification Method 1.Extract cells from Bone
marrow (5 mice) 2.Enrich target
cells by depleting Lineage Positive cells using
rat antibodies specific for lineage
markers such as T-cell, B-cell,
granulocyte/macrophage and erythrocyte.
For sorting HSCs CLP, Lin markers include
CD3, CD4, CD8, CD19, B220, Gr-1,
Ter119. 3.Magnetic bead
deplete Lin cells using sheep anti-rat coated
magnetic beads and collect
negative fraction 4.Label with
appropriate antibodies for HSC, CLP,
or Myeloid progenitors

24
Murine Hematopoietic Stem Cell/Progenitor
SortStaining strategy
HSCs and CLPs FITC-Sca-1
bioinylated IL-7RPE SAV
APC-c-Kit
Myeloid progenitors FITC CD34
PE-Fcg RII/III
APC-c-Kit
PE-Cy7-Sca-1
Add Propidium Iodide (PI) 1ug/ml final
concentration to exclude dead cells Keep sample
on ice until and during analysis and
sorting. Lin cells are stained to be Pe-CY5
25
Murine Hematopoietic Stem Cell/ProgenitorSort
Gating Strategy

• Doublet Discrimination
• PI Neg
• Lin Neg
• Myeloid progenitors are sorted as
  Lin-Sca-1-c-kitCD34FcgRlo (CMP),
  Lin-Sca-1-c-kitCD34FcgRhi (GMP) and as
  Lin-Sca-1-c-kitCD34-FcgRlo (MEP).
• HSC and CLP are isolatable as Lin-/loSca-1hic-kith
  iIL-7R- and Lin-Sca-1loc-kitloIL-7R populations,
  respectively

26
Murine Bone Marrow Staining Strategy
Koichi Akashi Lab
27
Murine Bone Marrow Staining Strategy
28
Murine Hematopoietic Stem Cell/Progenitor
SortPre sort Instrument Set-UP Procedure

• Verify stable sort streams 4 Way spread out
  wide
• Select Parameters necessary
• Run Auto Compensation program
• - unstained control for PMT balance and
  adjust scatter gate to include dead and live
  cells
• - scan each stained B220 spleen sample
  for intensity of stain and uncomped
  overlap adjust if necessary

Then run Auto Comp Run PI last
29
Murine Hematopoietic Stem Cell/Progenitor
SortPre sort Instrument Set-UP Procedure II

• Rerun single color controls through all 2
  parameter combo matrix
• Display using normal and then Biexponential
  Display to check for under or over compensation
• Adjust compensation if required and apply to
  global instrument settings

30
Murine Hematopoietic Stem Cell/Progenitor
SortPre sort Instrument Set-UP Procedure
IIICompensation Verification
0 Comp 3 Comp
31
Murine Hematopoietic Stem Cell/Progenitor
SortPre sort Instrument Set-UP Procedure
IIIFinal Pre-check

• Place tubes in sort holders
• Turn on test stream
• Open Deflection Plate Door
• Turn on test streams check for Arcing
• Open waste drawer Center sort streams in each
  tube
• Close drawer/door and test streams
• Place siliconized eppendorf tubes in sample
  collection holder
• Run sample set up sort gates
• Sort one or two rounds of additional sorting of
  same gates to eliminate contaminating cells and
  doublets
• Wash with 75 ethanol and saline between each
  round to eliminate residual cells

32
Gating sequence Murine Bone Marrow
33
Murine Hematopoietic Stem Cell/Progenitor Sort
34
References

• 1. Kondo M, Weissman IL, Akashi K. Identification
  of clonogenic common lymphoid progenitors in
  mouse bone marrow. Cell. 199791661-672.
• 2. Akashi K, Traver D, Miyamoto T, Weissman IL. A
  clonogenic common myeloid progenitor that gives
  rise to all myeloid lineages. Nature.
  2000404193-197.
• 3. Miyamoto T, Weissman IL, Akashi K.
  AML1/ETO-expressing nonleukemic stem cells in
  acute myelogenous leukemia with 821 chromosomal
  translocation. Proc Natl Acad Sci U S A.
  2000977521-7526.

35
Stem cell Phenotype Integration with Multiple
Assays
FoxOs Are Critical Mediators of Hematopoietic
Stem Cell Resistance to Physiologic Oxidative
Stress
Cell, Vol 128, 325-339, 26 January 2007
36
FACSAria SORP UV Laser Upgrade January 2007
GFPDsRed/Hoechst 33342Viable Cell Cycle
37
Calcium Flux on T cell subpopulations
FACSAria SORP 20Mw 355nm UV Laser
10ug GAM IgG1
38
Side Population (SP) Analysis and
SortingBackground History

• Described by Margaret (Peggy) Goodell while in
  Richard Mulligan's Lab at MIT in Boston
• Most of flow cytometry work done by Glenn
  Paradis currently Director of Flow at M.I.T.
• Looking for quiescent cells in Bone Marrow
• Instrument Limitations 3 colors used in blue
• UV used for Hoechst cell cycle Analysis and PI
  viability exclusion ( PMT constraints)
• Done on BD FACSVantage
• Run at low pressure, Cell cycle resolution of
  lymphoid subpopulations possible
• Observed distinct side hook population profile
• Phenotype determination and sorting followed by
  repopulation experiments established SP identity

39
Howard Shapiro Surprise 65th Birthday party
Glenn Paradis (did flow at MIT on original SP
paper)
There is life other than flow!
Empire Garden Chinatown Boston Nov 2006
40
Side Populations (SP)by Flow

• Stringent Protocol Adherence
• Instrument Parameters Critical
• Tight C.V.s (co-efficient of Variation)
• Optimize Optical Filter selection
• Instrument Alignment Conditions

41
UV Bead StandardFluoresbrite BB Carboxylate
Microspheres 4.5µmPolysciences
LOG
LINEAR
Hoechst Blue PMT 225 Volts
42
FACSAria Special Order Research Platform
(SORP)UV Laser 20mW 355nm
UV PMT TRIGON
43
Side PopulationsInstrument Parameters

• Hoechst 33342(HO) excited by Ultraviolet (U.V.)
  or Violet lasers
• DyeCycletm Probes excited with violet, blue or
  red lasers
• Optical filters 450nm for Blue H0em
• 670 LP for Red HOem
• (PI for viability ex with uv or blue Laser)
• (Optional cell surface markers for phenotypic
  analysis)

44
SP Labeling procedures

• Verify technique by using same strain and EXACT
  rigorous conditions
• Found in above mentioned protocol
• Maintain incubation precisely at 37 centigrade
• Use C57BL/6 mice bone marrow 5-8 weeks of age for
  initial analysis
• Count cells accurately and resuspend at 106/ml
  in pre-warmed DMEM
• Add Hoechst at a final conc. of 5ug/ml (200x
  dilution of stock)
• Mix cells place in water bath exactly for 90 min.
  mix tube
• during incubation

45
SP Labeling procedures

• After 90 minutes incubation spin cells down in
  the COLD and resuspend in
• Cold HBSS
• Run on Cytometer or stain with antibodies or
  magnetic bead
• depletion procedures . All steps MUST be
  performed at 40C
• Use C57BL/6 mice bone marrow 5-8 weeks of age for
  initial analysis
• Count cells accurately and resuspend at 106/ml
  in pre-warmed DMEM
• Add Hoechst at a final conc. of 5ug/ml (200x
  dilution of stock)
• Mix cells place in water bath exactly for 90 min.
  mix tube
• during incubation

46
Side Population enumeration using Hoechst 33342
47
SP PhenotypeMurine Bone Marrow
48
Ho33342 dye uptake kinetics - incubation time and
concentration titration important
49
Violet Excitation SP HO33342 BM
Verapamil
0.4
0.3
PMT blue 550 PMT Red 944
Spectral Viewer
William Telford N.I.H.
50
Ultraviolet 20mW 355nm SP HO33342 BM
Verapamil
HO BLUE (450)
HO RED (670)
PMT blue 316 PMT Red 584
51
Sorting is believing

• Sorting of rare event populations allow further
  determination of functional activity
• Validation of Sort via model rare event sorting
  is essential
• Experiment feed back aids in future experiment
  design strategy

52
ACKNOWLEDGEMENTS
BOSTON
SINGAPORE

• Jay Dong
• Melinda Leong
• Gerard Chew
• All of you (Course Organizers, Attendees and
  Participants) for your interest in flow
  cytometry!

• Suzan Lazo-Kallanian
• Jerome Ritz
• Ken Anderson
• Jim Griffin
• Lee Nadler
• All HemNeo Flow P.Is and Users
• All Boston BD Staff
• Paul Melanson, Michelle LeQue
• Randy Offord, Stephanie Ventullo

GERARD TEOH (for being a good guy)
