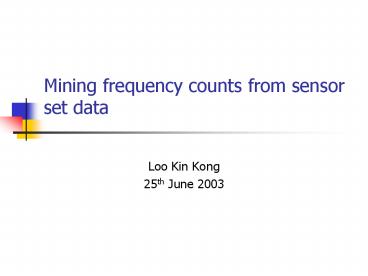

Mining frequency counts from sensor set data

1
Mining frequency counts from sensor set data

• Loo Kin Kong
• 25th June 2003

2
Outline

• Motivation
• Sensor set data
• Finding frequency counts of itemsets from sensor
  set data
• Future work

3
Stock quotes

• Closing prices of some HK stocks

4
Stock quotes

• Intra-day stock price of TVB (0511) on 23rd June
  2003(Source quamnet.com)

5
Motivation

• Fluctuation of the price of a stock may be
  related to that of another stock or other
  conditions
• Online analysis tools can help to give more
  insight on such variations
• The case of stock market can be generalized...
• We use sensors to monitor some conditions, for
  example
• We monitor the prices of stocks by getting
  quotations from a finance website
• We monitor the weather by measuring temperature,
  humidity, air pressure, wind, etc.

6
Sensors

• Properties of a sensor include
• A sensor reports values, either spontaneously or
  by request, reflecting the state of the condition
  being monitored
• Once a sensor reports a value, the value remains
  valid until the sensor reports again
• The lifespan of a value is defined as the length
  of time when the value is valid
• The value reported must be one of the possible
  states of the condition
• The set of all possible states of a sensor is its
  state set

7
Sensor set data

• A set of sensors (say, n of them) is called a
  sensor set
• At any time, we can obtain an n-tuple, which is
  composed of the values of the n sensors, attached
  with a time stamp vn)where t is the time when the n-tuple is
  obtained vx is the value of the x-th sensor
• If the n sensors have the same state set, we call
  the sensor set homogeneous

8
Mining association rules from sensor set data

• An association rule is a rule, satisfying certain
  support and confidence restrictions, in the
  form X ? Ywhere X and Y are two disjoint
  itemsets
• We redefine the support to reflect the time
  factor in sensor set data supp(X) ?
  lifespan(X) / length of history

9
Transformations of sensor-set data

• The n-tuples need
  transformation for finding frequent itemsets
• Transformation 1
• Each (zx, sy) pair, where zx is a sensor and sy a
  state for zx, is treated as an item in
  traditional association rule mining
• Hence, the i-th n-tuple is transformed
  as
  vn) where ti is the timestamp of the i-th
  n-tuple
• Thus, association rules of the form (z1, s1),
  (z2, v2), ..., (zn, vn) ? (zx, vx)can be
  obtained

10
Transformations of sensor-set data

• Transformation 2
• Assuming a homogeneous sensor set, each s in the
  state set is treated as an item in traditional
  association rule mining
• The i-th n-tuple is transformed as ti, (e1, s1), (e2, s2), ..., (em, sm) where
  ti is the timestamp of the i-th n-tuple, ex is a
  boolean value, showing whether the state sx
  exists in the tuple
• Thus, association rules of the form s1, s2,
  ..., sj ? skcan be obtained

11
The Lossy Counting (LC) Algorithm for items

• User specifies the support threshold s and error
  tolerance ?
• Transactions of single item are conceptually kept
  in buckets of size ?1/??
• At the end of each bucket, counts smaller than
  the error tolerance are discarded
• Counts, kept in a data structure D, of items are
  kept in the form (e, f, ?), where
• e is the item
• f is the frequency of e since the entry is
  inserted in D
• ? is the maximum count of e before the entry is
  added to D

12
The Lossy Counting (LC) Algorithm for items
D The set of all counts N Curr. len. of
stream e Transaction (of item) w Bucket
width b Current bucket id

• D ? ? N ? 0
• w ? ?1/?? b ? 1
• e ? next transaction N ? N 1
• if (e,f,?) exists in D do
• f ? f 1
• else do
• insert (e,1,b-1) to D
• endif
• if N mod w 0 do
• prune(D, b) b ? b 1
• endif
• Goto 3

13
The Lossy Counting (LC) Algorithm for items

• function prune(D, b)
• for each entry (e,f,?) in D do
• if f ? ? b do
• remove the entry from D
• endif

14
The Lossy Counting (LC) Algorithm for itemsets

• Transactions are kept in buckets
• Multiple (say m) buckets are processed at a time.
  The value m depends on the amount of memory
  available
• For each transaction E, essentially, every subset
  of E is enumerated and treated as if an item in
  LC algorithm for items

15
Extending the LC Algorithm for sensor-set data

• We can extend the LC Algorithm for finding
  approximate frequency counts of itemsets for SSD
• Instead of using a fixed sized bucket, size of
  which is determined by ?, we can use a bucket
  which can hold an arbitrary number of
  transactions
• During the i-th bucket, when a count is inserted
  to D, we set ? ? T1,i-1where Ti,j denotes
  the total time elapsed since bucket i up to
  bucket j
• At the end of the i-th bucket, we prune D by
  removing the counts such that ?f ? ?T1,i

16
Extending the LC Algorithm for sensor-set data
D The set of all counts N Curr. len. of
stream E Transaction (of itemset) w Bucket
width b Current bucket id

• D ? ? N ? 0
• w ? (user defined value) b ? 1
• E ? next transaction N ? N 1
• foreach subset e of E
• if (e,f,?) exists in D do
• f ? f 1
• else do
• insert (e,1, ? T1,b-1) to D
• endif
• if N mod w 0 do
• prune(D, T1,b) b ? b 1
• endif
• Goto 3

17
Observations

• The choice of w can affect the efficiency of the
  algorithm
• A small w may cause the pruning procedure being
  invoked too frequently
• A big w may cause that many transactions being
  kept in the memory
• It may be possible to derive a good w w.r.t. mean
  lifespan of the transactions
• If the lifespans of the transactions are short,
  potentially we need to prune D frequently
• Difference between adjacent transactions may be
  little

18
Future work

• Evaluate the efficiency of the LC Algorithm for
  sensor-set data
• Investigate how to exploit the observation that
  adjacent transactions may be very similar

19
Q A
