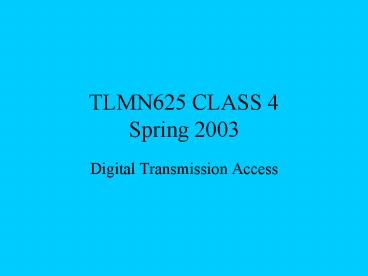

TLMN625 CLASS 4 Spring 2003

1
TLMN625 CLASS 4Spring 2003

• Digital Transmission Access

2
SESSION 5 Digital Transmission Access (Consumer,
Business)

• Introduction
• -Preliminary- Multiplexing
• Subscriber loop review (analog vs. digital
  lines)
• T1, channel banks, CSUs
• Digital Subscriber lines (xDSL), ISDN
• Cable Modems
• Wireless (LMDS, MMDS)

3
Internet AccessSurvey CNN Feb.27, 2001

• Cable Modem 33
• Modem 29
• DSL 22
• T-1 14
• ISDN 3

4
Review of Fundamentals
5
Multiplexing
6
Time Division Multiplexing
7
Digital Transmission

• Amplifiers Boost the energy in the signal
• Also boost the noise (used for analog signalling)
• Repeaters Recover the digital pattern and
  retransmit it
• Do not retransmit the noise
• Advantages of digital transmission
• Compression, Store and Hold, (Buffers)
• Better multiplexing
• Security (e.g. mobile )
• Integration of analog and digital data

8
Figure 8-17
Telephone Network
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
9
Figure 8-18
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
10
Figure 8-19
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
11
Figure 8-20
Analog Switched Service
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
12
Figure 8-21
Analog Leased Service
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
13
Figure 8-22
Analog Hierarchy
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
14
Figure 8-23
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
15
Figure 8-24
Switched/56 Service
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
16
Figure 8-25
DDS
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
17
Figure 8-26
DS Hierarchy
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
18
Figure 8-27
T-1 Line
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
19
Figure 8-28
T-1 Frame
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
20
Figure 8-29
Fractional T-1 Line
? The McGraw-Hill Companies, Inc., 1998
WCB/McGraw-Hill
21
DS-1 Transmission (T1)

• Frame size 193 bits.
• 4 wire Full Duplex (2 twisted pairs)
• Voice
• 24 voice chs. 8 bits each 1 frame bit
• PCM voice 8 KHz 8000 frames / sec
• 8 bit PCM (every 6th frame, each channel has 7
  bit PCM)
• Data
• 23 channels 1 byte for frame sync.
• 7 bits per channel, 56 Kbps per channel

22
Channel Banks

• filtering to 3400 Hz for each signal
• sampling 8000 times a second
• coding to 8 bit accuracy
• multiplexing, synchronization

23
TDM Carrier Standards
24
LEASED-LINE TELEPHONE TECHNOLOGIES Name
Bandwidth Notes ----
--------- ----------------------------------
------- DS-0 64 kbps Equal
to one voice phone connection. DS-1
1.544 Mbps Used for T1. Old primary
Internet backbone. DS-2
6.312 Mbps Only used for microwave
transmitters. DS-3 44.736 Mbps
Used for T3. OC-1 51.840 Mbps
SONET level 1. OC-3 155.530 Mbps
SONET level 3. M560 560.000 Mbps
Proprietary. Current telephone backbone. OC-48
2,488.32 Mbps Future telephone
backbone. OC-192 9,953.28 Mbps
Currently unavailable.
25
T1 Costs

• Quest LCI 6000/month (coast to coast)
• Frontier 9000/ month (coast to coast)
• Big three around 14,000/month (c. to c)
• Above are published rates. Significant discounts
  are now being offered as competition comes from
  alternatives such as VOIP, Frame Relay, DSL etc.
  Especially true for T1 access to Internet portals


26
Leased Line Costs
1)InternetTypically phone companies charge T1
400-600 per month about 125 for 56 k.
2) Leased-line pricing varies among
carriers, expect to pay around 2,000 per
month for a T1 line that traverses 50 miles.
27
(No Transcript)
28
DSLAM
29
(No Transcript)
30
Transmission Spectrum
The VDSL spectrum usually ranges from 200 kHz to
30 MHz
31
Business Opportunities for xDSL

• Internet Connectivity Services
• Corporate Branch Office Connectivity
• Telecommuting Services
• Business- to- Business Services
• Symmetric Voice- T1 Replacement

32
VDSL 52 Mbps downstream and 13
Mbps upstream,
Source Telecominvestor Magazine August
1999 VDSL useful for TV, video conferencing
Limited to 4500 feet
33
Cable Modem
34
(No Transcript)
35
Questions relating to the following?

• Why is the Frame Relay curve flat?
• What is the breakpoint in moving from one telecom
  service to the other?
• What does this say about the two services as when
  the services should be utilized?

36
Cost Comparison
300
1000
