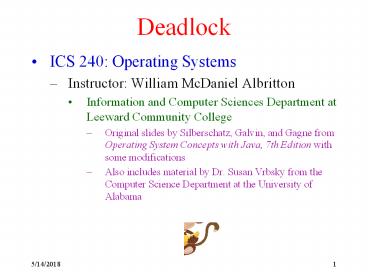

Deadlock

1
Deadlock

• ICS 240 Operating Systems
• Instructor William McDaniel Albritton
• Information and Computer Sciences Department at
  Leeward Community College
• Original slides by Silberschatz, Galvin, and
  Gagne from Operating System Concepts with Java,
  7th Edition with some modifications
• Also includes material by Dr. Susan Vrbsky from
  the Computer Science Department at the University
  of Alabama

8/18/2009
1
8/18/2009
1
2
Deadlock

• Deadlock is a set of processes permanently
  blocked, waiting for an event that will never
  occur
• Blocked waiting for resources that are held by
  another process in the set and will never become
  available
• Deadlock is slightly different than starvation
• With starvation, process blocked on resources
  that become available, but never acquired

3
Deadlock

• Deadlock theory very well developed
• Many algorithms can be used to prevent or deal
  with deadlocks
• However, few current operating systems use these
  deadlock prevention algorithms due to high
  overhead

4
Deadlock

• Modern operating systems have increased
  possibility of deadlock, because of
• Large number of concurrent processes
• Multithreaded programs
• Sharing of multiple resources in a system
• Long-lived file and database servers
• Because of these trends, operating systems in the
  near future will probably incorporate more
  algorithms that prevent deadlock

5
The Deadlock Problem

• A set of blocked processes each holding a
  resource and waiting to acquire a resource held
  by another process in the set
• Example
• System has 2 disk drives
• Process 1 and Process 2 each hold one disk
  drive and each needs another one

6
The Deadlock Problem

• A set of blocked processes each holding a
  resource and waiting to acquire a resource held
  by another process in the set
• Example
• Semaphores A and B, initialized to 1
• Semaphore A new Semaphore(1)
• Semaphore B new Semaphore(1)
• Process 1 Process 2A.acquire() B.acquire()B
  .acquire() A.acquire()

7
Bridge Crossing Example

• Traffic only in one direction on the bridge
• Each section of a bridge can be viewed as a
  resource
• If a deadlock occurs, it can be resolved if one
  car backs up
• Preempt resources and rollback
• Several cars may have to be backed up if a
  deadlock occurs
• Starvation is also possible in this example

8
Bridge Crossing Example

• Diagram

9
System Model

• Resource types R1, R2, . . ., Rm
• For example, CPU, memory, and I/O devices such as
  printers
• Each resource type Ri may have one (1) or more
  instances
• For example, a system with 3 CPUs has 3 instances
  of a CPU resource
• A system with 10 printers has 10 instances of a
  printer resource

10
System Model

• Each process utilizes a resource as follows
• Process requests resource
• If the request cannot be processed immediately,
  the process must wait until it can acquire the
  resource
• For example, open a file
• Process uses resource
• For example, write to a file
• Process releases resource
• For example, close a file

11
System Model

• Request, use, and release may sound simple, but
  this is supported by a complex system
• A system table is needed for the resources
• Keep track of state of resource free or
  allocated
• Keep track of the process allocated to each
  resource
• Each resource needs a queue for processes waiting
  on the resource
• Multithreaded applications will be accessing the
  same resources, so easy to have deadlock

12
Deadlock Characterization

• Deadlock can arise if these four (4) conditions
  hold simultaneously
• Mutual exclusion
• Hold and wait
• No preemption
• Circular wait

13
Deadlock Characterization

• Mutual exclusion
• Resources are not sharable
• Only one process at a time can use a resource
• If another process requests the resources, this
  process is delayed until the resource is released
• Hold and wait
• Process holds resources allocated to them while
  waiting to acquire additional resources
• A process holding at least one resource is
  waiting to acquire additional resources held by
  other processes

14
Deadlock Characterization

• No preemption
• The system cannot forcibly take a resource from a
  process
• A resource can be released only voluntarily by
  the process holding it, after that process has
  completed its task

15
Deadlock Characterization

• Circular wait
• There exists a set of processed P0...Pn such
  that
• P0 is waiting for a resource held by P1
• P1 is waiting for a resource held by P2
• . . .
• Pn-1 is waiting for a resource held by Pn
• Pn is waiting for a resource held by P0

16
Resource-Allocation Graph

• A set of vertices (nodes, circles) V and a set of
  edges (arrows, lines) E
• V is partitioned into two types
• P P1, P2, , Pn, the set consisting of all
  the processes in the system
• R R1, R2, , Rm, the set consisting of all
  resource types in the system
• Process i requests Resouce j is represented
  by the directed edge Pi ? Rj
• Resource j is assigned to Process i is
  represented by the directed edge Rj ? Pi

17
Resource-Allocation Graph

• Process
• Resource Type with 4 instances
• Pi requests instance of Rj
• Pi is holding an instance of Rj

Pi
Rj
Pi
Rj
18
Example Graph 1

• Resource Allocation Graph without a cycle
• Processes P1, P2, P3
• Resource Types R1, R2, R3, R4
• Resource Instances
• R1 R3 one instance
• R2 two instances
• R4 three instances

19
Example Graph 1

• Process states
• Process P1
• Waiting for an instance of Resource Type R1
• Acquired an instance of Resource Type R2
• Process P2
• Acquired an instance of Resource Type R1
• Acquired an instance of Resource Type R2
• Waiting for an instance of Resource Type R3

20
Example Graph 1

• Process states
• Process P3
• Acquired an instance of Resource Type R3
• Since this graph has no cycles, no deadlock
  exists
• If no cycles, then no deadlock

21
Example Graph 2

• Resource Allocation Graph With Deadlock
• Cycles in this system
• P1 ? R1 ? P2 ? R3 ?P3 ? R2 ? P1
• P2 ? R3 ? P3 ? R2 ?P2

22
Example Graph 2

• Processes P1, P2, and P3 are deadlocked
• P2 is waiting on R3
• But R3 is held by P3
• P3 is waiting on R2
• But R2 is held by P1 and P2
• P1 is waiting on R1
• But R1 is held by P2

23
Example Graph 3

• Graph With A Cycle But No Deadlock
• Cycles in this system
• P1 ? R1 ? P3 ? R2 ?P1
• Have one cycle, but no deadlock
• P4 may release R2
• Then, R2 can be allocated to P3
• This breaks the cycle

24
Basic Facts

• If graph contains no cycles
• No deadlock
• If graph contains a cycle
• If only one instance per resource type, then
  deadlock
• If several instances per resource type,
  possibility of deadlock
• In summary, if no cycles, then no deadlock
  however, if cycles exist, then the system may or
  may not have deadlock

25
Solutions to Deadlock

• Four ways to deal with deadlock problem
• Prevention
• Remove all possibility of deadlock by denying at
  least one of the four necessary conditions for
  deadlock
• Detection and Recovery
• Allow deadlock to occur, detect it when it does
• Occasionally examine state of system, checking
  for deadlock
• Clear deadlock when it occurs

26
Solutions to Deadlock

• Four ways to deal with deadlock problem
• Avoidance
• Sidestep deadlock if it is imminent
• Grant only those requests which cannot result in
  a state of deadlock
• Ignore the problem
• Pretend that deadlock never occurs
• Used by most operating systems, including UNIX
  and Windows

27
Deadlock Prevention

• Design system so deadlock can not occur by
  disallowing one of the necessary conditions
• Mutual Exclusion
• Mutual exclusion is not required for sharable
  resources
• However, we cannot disallow mutual exclusion for
  resources that cannot be shared
• So we cannot prevent deadlocks by disallowing
  mutual exclusion, as mutual exclusion is required
  to manage non-sharable resources

28
Deadlock Prevention

• Design system so deadlock can not occur by
  disallowing one of the necessary conditions
• Hold and Wait
• Must guarantee that whenever a process requests a
  resource, it does not hold any other resources
• Two possible protocols
• Require process to request and be allocated all
  its resources before it begins execution
• Allow process to request resources only when the
  process has none

29
Deadlock Prevention

• Hold and Wait
• Example a process that copies a file from DVD to
  disk, sorts the file, and prints the file
• Protocol 1 If the process is allocated all
  resources at once, then it has to hold the
  printer for the whole time period, even though it
  only needs the printer at the end. This is
  wasteful of resources.
• Protocol 2 The process only acquires the DVD
  and disk, and then releases both. Then the
  process acquires the disk and printer, and then
  releases both. This assumes that the data is
  still on the file.

8/18/2009
29
30
Deadlock Prevention

• Hold and Wait
• Problems
• A given process may not know all the resources
  that are needed
• Wasteful of resources
• Starvation is possible

31
Deadlock Prevention

• Design system so deadlock can not occur by
  disallowing one of the necessary conditions
• No preemption
• Allow system to take a processs resources
• Two possible protocols
• If process requests a resource that it can not
  immediately have, system takes all resources
  currently allocated to the process and process
  must re-request all resources plus new one
• If process requests a resource that it cannot
  immediately have, see if another waiting process
  has the resource and take it

32
Deadlock Prevention

• No preemption
• Problems
• Not all resources can be preempted
• For example, a printer cannot be preempted
• Preemption and resumption of resources is
  difficult, costly saving states, etc.

33
Deadlock Prevention

• Design system so deadlock can not occur by
  disallowing one of the necessary conditions
• Circular wait
• Give an order to all resource types
• type 1, type 2, type3.....type n
• If hold resource of type i, can only request from
  classes greater than i
• Must request resources in an increasing order of
  enumeration
• Assign more expensive resources higher numbers

8/18/2009
33
34
Deadlock Prevention

• Circular wait
• Problems
• Poor resource utilization (resources requested
  before needed)
• Degradation of concurrency
• Process may request max needed for each class
  although not always required
• Preventing circular wait has less overhead than
  preventing the other 3 conditions and is a common
  preventive technique

8/18/2009
34
35
Deadlock Avoidance

• Requires that the system has some additional
  information up front
• Simplest and most useful model requires that each
  process declare the maximum number of resources
  of each type that it may need
• The deadlock-avoidance algorithm dynamically
  examines the resource-allocation state to ensure
  that there can never be a circular-wait condition
• Resource-allocation state is defined by the
  number of available and allocated resources, and
  the maximum demands of the processes

36
Safe State

• Deadlock avoidance means to keep the system in a
  safe state
• Therefore the system must ensure that there is
  never a circular wait
• Safe state
• There exists a sequence of processes
  (P1,P2,...Px) such that each process gets the
  maximum resources it could possibly want
• In other words, a cycle does NOT have the
  possibility of occurring

37
Basic Facts

• If a system is in safe state
• No deadlocks
• If a system is in unsafe state
• Possibility of deadlock
• Avoidance
• Ensure that a system will never enter an unsafe
  state

38
Avoidance Algorithms

• Single instance of each resource type
• Use a resource-allocation graph
• Multiple instances of each resource type
• Use the bankers algorithm

39
Resource-Allocation Graph Scheme

• Claim edge Pi ? Rj indicated that process Pj may
  request resource Rj
• A claim edge is represented by a dashed line
• Resources in the system must be claimed in
  advance
• In other words, before Pi starts executing, all
  its claim edges must already appear in the
  resource-allocation graph

40
Resource-Allocation Graph Scheme

• Changing from one edge to another
• Claim edge converts to request edge when a
  process requests a resource
• Request edge converted to an assignment edge when
  the resource is allocated to the process
• When a resource is released by a process,
  assignment edge reconverts to a claim edge

8/18/2009
40
41
Resource-Allocation Graph Algorithm

• Suppose that process Pi requests a resource Rj
• The request can be granted only if converting the
  request edge to an assignment edge does not
  result in the formation of a cycle in the
  resource allocation graph

42
Resource-Allocation Graph

• Processes
• P1, P2
• Resources
• R1, R2
• Claim edge
• P1 ? R2
• P2 ? R2
• Request edge
• P2 ? R1
• Assignment edge
• R1 ? P1

43
Unsafe State In Resource-Allocation Graph

• Claim edge
• P1 ? R2
• Request edge
• P2 ? R1
• Assignment edge
• R1 ? P1
• R2 ? P2

44
Unsafe State In Resource-Allocation Graph

• R2 should not be allocated to P2, because this
  will create a cycle
• A cycle indicates that the system is in an unsafe
  state
• If P1 requests R2, and P2 requests P1, then a
  deadlock will occur

8/18/2009
44
45
Bankers Algorithm

• The Bankers Algorithm is used when there are
  multiple instances of a resource type
• Originally created by Dijkstra in 1968
• The name was chosen because we can use this
  algorithm in a banking system to make sure that
  the bank never distributes its cash, so that it
  can no longer satisfy the needs of all its
  customers

46
Bankers Algorithm

• 3 main parts to the Bankers Algorithm
• When a new process enters the system, it must
  give the maximum number of resource instances
  that it needs
• The system uses this information to check for a
  safe state before allocating a request
• If not a safe state, then a process must wait
  until it can get all its resources

8/18/2009
46
47
Data Structures for Bankers Algorithm

• Let n number of processes, and m number of
  resources types.
• Available Vector of length m. If available j
  k, there are k instances of resource type Rj
  available.
• Max n x m matrix. If Max i,j k, then
  process Pi may request at most k instances of
  resource type Rj.
• Allocation n x m matrix. If Allocationi,j
  k then Pi is currently allocated k instances of
  Rj.
• Need n x m matrix. If Needi,j k, then Pi
  may need k more instances of Rj to complete its
  task.
• Need i,j Maxi,j Allocation i,j.

48
Safety Algorithm

• 1. Let Work and Finish be vectors of length m and
  n, respectively. Initialize
• Work Available
• Finish i false for i 0, 1, , n- 1.
• 2. Find and i such that both
• (a) Finish i false
• (b) Needi ? Work
• If no such i exists, go to step 4.
• 3. Work Work AllocationiFinishi truego
  to step 2
• 4. If Finish i true for all i, then the
  system is in a safe state.

49
Resource-Request Algorithm for Process Pi

• Request request vector for process Pi. If
  Requesti j k then process Pi wants k
  instances of resource type Rj.
• If Requesti ? Needi go to step 2. Otherwise,
  raise error condition, since process has exceeded
  its maximum claim
• If Requesti ? Available, go to step 3. Otherwise
  Pi must wait, since resources are not available
• Pretend to allocate requested resources to Pi by
  modifying the state as follows
• Available Available Request
• Allocationi Allocationi Requesti
• Needi Needi Requesti
• If safe ? the resources are allocated to Pi
• If unsafe ? Pi must wait, and the old
  resource-allocation state is restored

50
Example of Bankers Algorithm

• 5 processes P0 through P4
• 3 resource types
• A (10 instances), B (5instances), and C (7
  instances)
• Snapshot at time T0
• Allocation Max Available
• A B C A B C A B C
• P0 0 1 0 7 5 3 3 3 2
• P1 2 0 0 3 2 2
• P2 3 0 2 9 0 2
• P3 2 1 1 2 2 2
• P4 0 0 2 4 3 3

51
Example of Bankers Algorithm

• The content of the matrix Need is defined to be
  Max Allocation.
• Need
• A B C
• P0 7 4 3
• P1 1 2 2
• P2 6 0 0
• P3 0 1 1
• P4 4 3 1
• The system is in a safe state since the sequence
  satisfies safety criteria.

52
Example P1 Request (1,0,2)

• Check that Request ? Available
• that is, (1,0,2) ? (3,3,2) ? true.
• Allocation Need Available
• A B C A B C A B C
• P0 0 1 0 7 4 3 2 3 0
• P1 3 0 2 0 2 0
• P2 3 0 1 6 0 0
• P3 2 1 1 0 1 1
• P4 0 0 2 4 3 1
• Executing safety algorithm shows that sequence P1, P3, P4, P0, P2 satisfies safety requirement

53
Deadlock Detection Recovery

• If we do not use deadlock prevention or deadlock
  avoidance in our system, then we may have
  deadlock at some time
• In this case, we need a deadlock detection and
  recovery scheme
• Allow system to enter deadlock state
• Detection algorithm
• Recovery algorithm

54
Detection Algorithm

• This detection algorithm is used when there is a
  single instance of each resource type
• Maintain wait-for graph
• Nodes are processes
• Pi ? Pj if Pi is waiting for Pj
• Periodically invoke an algorithm that searches
  for a cycle in the wait-for graph
• If there is a cycle, there exists a deadlock
• Only when there is single instance of each
  resource type
• For multiple instance of each resource type, a
  more complicated algorithm is used

55
Detection Algorithm

• Creation of wait-for graph
• A wait-for graph is created by removing the
  resource nodes from the resource-allocation graph
  and collapsing the edges

56
Detection Algorithm

• Resource-allocation graph

• Corresponding wait-for graph

57
Detection Algorithm

• The algorithm used to detect a cycle in a graph
  (when there is a single instance of each resource
  type) requires an order of O(n2) operations,
  where n is the number of vertices in the graph
• For multiple instances of resources, the
  algorithm requires an order of O(m x n2)
  operations to detect a cycle, where m is the
  number of instances of a resource
• In both cases, it takes a long time to detect a
  cycle

8/18/2009
57
58
Detection Algorithm

• When to run the detection algorithm?
• Considerations
• Resources allocated to deadlocked processes are
  idle (resource waste)
• As time progresses, number of processes in
  deadlocked set may grow
• How often do we think a deadlock will occur?
• How many processes will be affected when it
  happens?

8/18/2009
58
59
Detection Algorithm

• When to run the detection algorithm?
• Possibilities
• Invoke if a request is not immediately granted
  (too much overhead)
• Fixed time interval, say every 20 seconds or
  sowhen CPU drops below a certain threshold , say
  40
• Processes blocked
• CPU available to run algorithm

8/18/2009
59
60
Recovery Algorithm

• We have two possibilities to recover from a
  deadlock
• Process termination
• Resource preemption

61
Process Termination

• Kill (terminate) processes
• System reclaims all resources allocated to killed
  process
• We have two choices
• Abort all deadlocked processes
• If all killed, will deadlock occur again?
  Deadlock due to a particular execution sequence,
  so unlikely to repeat exact sequence
• Abort one process at a time until deadlock cycle
  is eliminated
• This can be complex. What happens if kill
  producer? Must kill also consumer or send error
  messages to processes trying to consume

8/18/2009
61
62
Process Termination

• When we kill one process at a time, how do we
  select a victim?
• Process priority
• Process execution completed (how long process has
  computed)
• Number and type of resources held by process
• Number and type of resources required to complete
  process
• How many processes will require termination

8/18/2009
62
63
Resource Preemption

• Preempt one or more resources from one or more of
  the deadlocked processes
• What to do with preempted process?
• Return and restart a process from a safe state
  checkpoint - a recording of a previous state
• How to ensure no starvation?
• Be sure resources are not preempted from the same
  process each time by including the number of
  times a process has rolledback in the cost factor
  (a priority function)
• Rollback return to some safe state, and restart
  process for that state
