Case 2p128

1

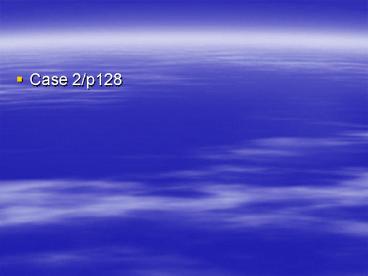

• Case 2/p128

2
1. What are the business benefits of adopting
open-source software?

• Benefits include
• reduced cost of purchase,
• less chance of obsolescence,
• broader access to technical support,
• lower cost of upgrade.

3
2. What are the risks associated with open-source
software? How can these risks be addressed?

• Risks include
• potential abandonment of standard,
• loss of liability shift to software vendor,
• lack of quality technical support.

4

• 3. Do you see open-source software eventually
  replacing the current proprietary software model?

5
BLOG (weblog)source http//en.wikipedia.org/wi
ki/BlogTypes_of_blogs

• A blog is a user-generated website where entries
  are made in journal style and displayed in a
  reverse chronological order.
• Blogs often provide commentary or news on a
  particular subject, such as food, politics, or
  local news some function as more personal online
  diaries
• Youtube type of a video weblog

6
Myspacesource http//en.wikipedia.org/wiki/MySpa
ce

• MySpace is a social networking website offering
  an interactive, user-submitted network of
  friends, personal profiles, blogs, groups,
  photos, music and videos. MySpace also features
  an internal search engine and an internal e-mail
  system

7
Drawing money from an ATM
8
Telecommunications and Networking
9
Learning Objectives

• Understand the concept of a network.
• Apply Metcalfes law in understanding the value
  of a network.
• Identify several major developments and trends in
  the industries, technologies, and business
  applications of telecommunications and Internet
  technologies.
• Examples of the business value of Internet,
  intranet, and extranet applications.

10
Learning Objectives

• Identify the basic components, functions, and
  types of telecommunications networks used in
  business.
• Explain the functions of major components of
  telecommunications network hardware, software,
  media, and services.
• Explain the concept of client/server networking.
• Understand the two forms of peer-to-peer
  networking.
• Explain the difference between digital and analog
  signals.

11
Learning Objectives

• Identify the various transmission media and
  topologies used in telecommunications networks.
• Understand the fundamentals of wireless network
  technologies.
• Explain the concepts behind TCP/IP.
• Understand the seven layers of the OSI network
  model.

12
Network Concepts

• Network
• An interconnected chain, group or system
• Number of possible connections on a network is N
  (N-1)/2
• Where N number of nodes (points of connections
  on the network)
• Example, if there are 10 computers on a network,
  there are 10 9/2 45 possible connections

13
Telecommunications

• Telecommunications
• Exchange of information in any form (voice, data,
  text, images, audio, video) over networks

14
Basic concepts

• Communication protocols (TCP/IP)
• Data transmission methods
• Asynchronous
• Synchronous
• Connecting
• Modem
• Hardwired and remote
• Data transmission channels (bps)
• narrow bands 5-30
• voice bands 1,000-9,600
• broad bands 100,000
• Types of communication lines
• simplex
• half-duplex
• duplex

15
Networks

• Concept
• "a group of interconnected computers,
  workstations, or computer devices (such as
  printers and data storage systems).
• Network topology
• bus
• star
• ring
• Local-area networks
• bus Ethernet, carrier sense multiple access
  (CSMA)
• ring token passing method
• Distributed data processing
• "interconnects sites of one organization not only
  for communication of data and messages but also
  for the sharing of resources."

16
Open Systems

• Information systems that use common standards for
  hardware, software, applications and networks
• Internet networking technologies are a common
  standard for open systems
• Connectivity
• Ability of networked computers to easily access
  and communicate with each other and share
  information
• Interoperability
• The ability of an open system to enable end user
  applications to be accomplished using different
  varieties of computer systems, software packages,
  and databases provided by a variety of
  interconnected networks

17
Middleware

• Any programming that serves to glue together
  two separate programs

18
Internet2

• Next generation of the Internet
• High-performance network
• In use at 200 universities, scientific
  institutions, communications corporations

19
Internet Service Provider

• ISP
• A company that specializes in providing easy
  access to the Internet
• For a monthly fee, you get software, user name,
  password and access
• ISPs are connect to one another through network
  access points

20
An Intranet Also look at fig 6.8

• A network inside an organization
• That uses Internet technologies (such as Web
  browsers and servers, TCP/IP protocols, HTML,
  etc.)
• To provide an Internet-like environment within
  the organization
• For information sharing, communications,
  collaboration and support of business processes
• Protected by security measures
• Can be accessed by authorized users through the
  Internet

21
Extranet (also look at fig 6.9)

• Network links that use Internet technologies
• To connect the Intranet of a business
• With the Intranets of its customers, suppliers or
  other business partners

22
GPS

• The global positioning system (GPS) is a major
  technological achievement that has broad-reaching
  implications for business. Using the Internet,
• Can find other innovative uses for GPS.
• Good places to start familiarizing yourself with
  current accomplishments are
• The GPSWorld site at http//www.gpsworld.com/gpswo
  rld/
• The GPS Overview at http//www.colorado.edu/geogra
  phy/gcraft/notes/gps/gps_f.html

23
Telecommunications network

• Any arrangement where a sender transmits a
  message to a receiver over a channel consisting
  of some type of medium

24
Types of Networks

• WAN
• LAN
• VPN
• C/S

25
VPN

• Basically, a VPN is a private network that uses a
  public network (usually the Internet) to connect
  remote sites or users together. Instead of using
  a dedicated, real-world connection such as leased
  line, a VPN uses "virtual" connections routed
  through the Internet from the company's private
  network to the remote site or employee.
• Source computer.Howstuffworks.com

26
VPN
27
Internetwork Processors

• Switch makes connections between
  telecommunications circuits in a network
• Router intelligent communications processor
  that interconnects networks based on different
  protocols
• Hub a port switching communications processor
• Gateway connects networks using different
  communications architectures

28
ROUTERS

• Routers are specialized computers that send your
  messages and those of every other Internet user
  speeding to their destinations along thousands of
  pathways.
• Fujitsu GeoStream R980 industrial strength router


29
ROUTERS

• configuration table. A configuration table is a
  collection of information, including
• Information on which connections lead to
  particular groups of addresses
• Priorities for connections to be used
• Rules for handling both routine and special cases
  of traffic
• A router, then, has two separate but related
  jobs
• The router ensures that information doesn't go
  where it's not needed. This is crucial for
  keeping large volumes of data from clogging the
  connections of "innocent bystanders."
• The router makes sure that information does make
  it to the intended destination.
• Computer.howstuffworks.com

30
Distributed data processing
TSS - Time Sharing Systems
MAINFRAME
CSS - Client Server Systems
31
Client/Server networks

• Clients End user personal computers or networked
  computers
• Interconnected by LANs
• Servers manage networks
• Processing shared between clients and servers

32
CSS architecture
33
Peer-to-peer networks (p 209)

• Networks that connect from one PC to another PC
• Peer-to-peer networking enables or enhances the
  following scenarios
• Real-time communications (RTC)
• Collaboration
• Content distribution
• Distributed processing
• Improved Internet technologies
• Source www.microsoft.com

34
Wireless Technologies

• Terrestrial microwave
• Earthbound microwave systems that transmit
  high-speed radio signals in a line-of-sight path
• Between relay systems spaced approximately
  30-miles apart
• Communications satellites
• Satellite serves as relay stations for
  communications signals
• Uses microwave radio signals

35
Wireless Technologies

• Cellular and PCS telephone and pager systems
• Divide the geographic area into small areas or
  cells
• Each cell has transmitter or radio relay antenna
  to send message from one cell to another
• Wireless LANs
• Radio signals within an office or building
• Connect PCs to networks
• Bluetooth
• Short-range wireless technology
• To connect PC to peripherals such as printer

36
Bluetooth

• Bluetooth is a standard developed by a group of
  electronics manufacturers that allows any sort of
  electronic equipment -- from computers and cell
  phones to keyboards and headphones -- to make its
  own connections, without wires, cables or any
  direct action from a user.
• Bluetooth can connect up to eight devices
• simultaneously. With all of those devices
• in the same 10-meter (32-foot) radius

37

• http//www.dell.com/content/topics/topic.aspx/glob
  al/shared/corp/media/en/studio_dell?cuslensco
  rptargetNetwork2targetChannel4targetMedia32

38
Steps in wireless networksource www.dell.com
39
Cell Phonessource howstuffworks.com

• GSM (CDMA) vs TDMA
• TDMA (time division multiple access) assigns each
  call a certain portion of time on a designated
  frequency.
• Works on either the 800-MHz or 1900-MHz frequency
  bands.
• CDMA (code division multiple access) gives a
  unique code to each call and spreads it over the
  available frequencies.
• GSM operates in the 900-MHz and 1800-MHz bands in
  Europe and Asia and in the 850-MHz and 1900-MHz
  (sometimes referred to as 1.9-GHz) band in the
  United States
• Cell vs Mobile

40
Band/Mode

• Multiple band - A phone that has multiple-band
  capability can switch frequencies. For example, a
  dual-band TDMA phone could use TDMA services in
  either an 800-MHz or a 1900-MHz system. A
  quad-band GSM phone could use GSM service in the
  850-MHz, 900-MHz, 1800-MHz or 1900-MHz band.
• Multiple mode - In cell phones, "mode" refers to
  the type of transmission technology used. So, a
  phone that supported AMPS and TDMA could switch
  back and forth as needed. It's important that one
  of the modes is AMPS -- this gives you analog
  service if you are in an area that doesn't have
  digital support.

41
EDI Concepts

• EDI is a mechanism for electronic trading
• EDI replaces paper flow with online transactions
• EDI architecture
• EDI is for trading partners
• Implementation plan is a key factor
• Obstacles
• lack of transaction standardization
• high start-up costs
• EDI third-party suppliers
• ATT, Control Data, EDS, GE, Western Union, IBM,
  Martin Marietta Data Systems, etc.

42
EDI architecture
43
Network Topologies (p 219)

• Topology structure of a network
• Star ties end user computers to a central
  computer
• Ring ties local computer processors together in
  a ring on a relatively equal basis
• Bus local processors share the same
  communications channel

44
Network Architectures Protocols

• Protocol standard set of rules and procedures
  for the control of communications in a network
• Network Architecture
• Master plan of standard protocols, hardware,
  software and interfaces between end users and
  computer systems
• Goal of promoting an open, simple, flexible, and
  efficient telecommunications environment

45
OSI TCP/IP Models (p 221)

• Open Systems Interconnection (OSI) Model
• A seven-layer model that serves as a standard
  model for network architectures
• Model for how messages should be transmitted
  between two points in a network
• Each layer adds functions
• Transmission Control Protocol / Internet Protocol
  (TCP/IP)
• A five layer telecommunications protocol used by
  the Internet

46
IP

• Internet protocol
• Each system connected to the internet is
  identified by a 32-bit IP address
• Four numbers separated by a decimal
• Each represented by octal (8 bits hence 0-255)
• Ex 168.212.226.204
• Binary format
• 10101000.11010100.11100010.11001100
• A new protocol IPv6 allows for 128 bit IP
  addresses
• to look up an IP address http//www.kloth.net/se
  rvices/nslookup.php
• to find info
• http//www.geobytes.com/IpLocator.htm

47
Basic Communications ModelStandards are needed
at all Layers
48
Internet Telephony

• Using an Internet connection to pass voice data
  using IP
• Voice over IP (VoIP)
• Skips standard long-distance phone charges

49
VOIP (source www.fcc.gov)
50
Bandwidth

• Bandwidth
• Frequency range of a telecommunications channel
• Determines transmission rate
• Classified in bits per second (bps)
• Transmission Rates
• Narrow-band low-speed
• Broadband high-speed

51
WiFi

• WIreless FIdelity (WiFi)-- used generically when
  referring of any type of 802.11
• "Wi-Fi Certified" (a registered trademark) by the
  Wi-Fi Alliance are interoperable with each
  other,
• even if they are from different manufacturers. A
  user with a "Wi-Fi Certified" product can use any

• brand of access point with any other brand of
  client hardware that also is certified
• http//www.webopedia.com/TERM/W/Wi_Fi.html

52
Additional Readings

• Voice over data networks
• Networking Hardware Quiz
• abc of wireless LAN
• ISDN Tutorial
• Ethernet tutorial
• Internet Protocol
• Thin clients
•  UNIX/NT integration
• Cell phones

53
RWC 1 SAIC, Hewlett-Packard, GE, and Others
Wireless, Wireless Everywhere

• What are some of the business benefits
• associated with using wireless networks to
• collect and transmit data?
• Benefits would include
• Superfast wireless connections to the Web.
• Cost is about one-fourth of existing costs for
  connection to the Web.
• Productivity gains such as a 45 gain at UPS.

54
What are some of the challenges being faced in
this useof wireless technologies? What
solutions can you offer?

• Having everyone online in a meeting can be toxic
  to productivity. No laptop policies for
  important meetings.
• Enormous pressure within companies to provide
  Wi-Fi in all areas of the company. Which
  employees have compelling needs for Wi-Fi access
• Cost exceeds the benefit to be gained by
  providing Wi-Fi such as in a manufacturing plant
  that would require numerous additional access
  points than usual.
• Security of information available via the Wi-Fi
  system. Delay implementation until security
  assurances are met.

55
The use of wireless networking as described in
the case is both innovative and useful. What
other business uses can you envision for this
approach?
56
RWC 2 Maryland and Colorado Serving Its
Citizens Without Using Wires

• What is the business value of advanced mobile
  technologies to Marylands emergency management
  services?
• Direct agents toward places where their presence
  is required
• Give notice of impending natural disasters with
  forecasts and instructions on how to proceed.
• Improve information gathering on the extent and
  magnitude of devastation.
• Reduce the amount of manual data-entry, leading
  to improved response times and reduction of
  errors (i.e. address is automatically captured
  and pop-up menus limit possible answers).

57
In what other government services could GPS serve
to provide business value? Give some examples.

• States National Guards, to monitor and direct
  personnel in case of an emergency.
• Emergency Services, to direct ambulances,
  firefighters, etc.
• Department of Treasury / Federal Reserve, to
  track the location of armored trucks both for
  regular traffic and in case of a hijacking.
• The military in general, given that it has one of
  the largest manpower and logistics network in the
  country.

58
Are there disadvantages or risks associated with
the deployment of GPS systems to monitor the
location of people? Explain.

• Invasions of privacy
• Limitation on the freedom of movement
• Could allow not only the government but also
  private individuals to monitor other peoples
  movements.
