Implicit group messaging

1

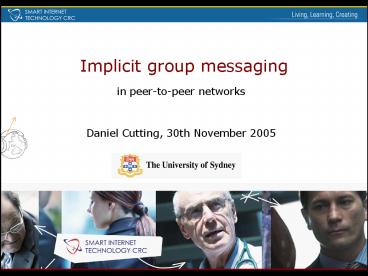

Implicit group messaging

• in peer-to-peer networks
• Daniel Cutting, 30th November 2005

2
Outline.

• Explicit and implicit groups
• P2P networks
• Implicit group messaging
• My approach
• Addressing
• Grouping
• Routing
• Evaluation

3
Explicit groups.

• Group Griffin
• Lois
• Peter
• Stewie
• Brian
• Group A-Team
• Homer
• Peter

4
Implicit groups.

• Implicit groups
• Soccer
• Soccer AND Argentina
• Australia OR Argentina
• (Soccer OR Football) AND Argentina

5
Explicit and implicit groups.

• Explicit groups members are named
• Membership managed as a central list or a
  distributed structure (e.g. multicast group
  trees)
• Members explicitly join (individually or by a
  coordinator)
• Implicit groups members are described
• E.g. Everyone interested in soccer
• Members dont join, they just match the
  description

6
P2P networks.

• Overlay networks of hosts (peers) on the
  Internet
• Structured (CAN, Pastry) peers reside in a
  logical space and are connected in some ordered
  and consistent way
• Unstructured (Gnutella, KaZaA) more ad hoc
• P2P commonly used to swap files, but also good
  for
• Distributed data storage, academic collaboration
  tools, large multiplayer games, message forums
• Want support for messaging groups within these
  networks (for searches, requests, events, etc.)
• Implicit groups are good for these!

7
P2P networks.
Hand of God
(Soccer OR Football) AND Argentina
8
Implicit group messaging.

• AIM Deliver messages from any peer to any
  implicit group at any time in a P2P network
• Assumptions
• Each peer describes itself with attributes
  (strings indicating capabilities, interests,
  services, ),e.g. Soccer, Argentina
• Implicit groups are specified as logical
  expressions of attributes, e.g. (Soccer OR
  Football) AND Argentina
• System delivers messages from a source to all
  peers matching the expression

9
My approach.

• A fully distributed, structured overlay network
• Peers build and maintain a logical Cartesian
  surface
• Each peer resides at a logical address on surface
• Each peer owns part of the surface and knows its
  neighbouring peers
• Key features
• Addressing a peers address encodes its
  attributes
• Grouping a groups description encodes all
  possible addresses of matching peers
• Routing source uses group description to
  reactively construct a multicast tree to all
  possible addresses

10
What does a surface look like?
11
But what does it mean?!
Peter Australia
Lois Soccer, Australia
Brian Soccer
Homer Football, Argentina, Donuts
Stewie Soccer, Argentina
12
JOINing the network.

• New peer calculates its address
• Routes a JOIN request to that address from a
  bootstrap
• Peer that currently owns theaddress partitions
  its part ofthe surface
• All neighbours are informed
• To leave the network giveyour parts of the
  surfaceto your neighbours

13
Getting around on the surface.

• Each peer knows its neighbours
• When given a message with a destination address,
  pass it on to geometrically nearest neighbour

14
Addressing.

• How does a peer determine its location on the
  surface?
• Each peer has a set of attributes (its interests,
  say)
• Encode these into the address of the peer using a
  Bloom Filter
• E.g. Soccer, Argentina ? 01101 01100
  01001
• Map the address to a part of the surface
• Location on surface encodes attributes

15
Addressing.

• Map from an address to the surface using a
  quadtree decomposition
• Quadrants called extents
• E.g. Soccer, Argentina ? 01101
• Pad with 0s at end
• 01 10 1(0) 122

16
Grouping.

• How do we find a group of peers given a
  description?
• E.g. all peers with attributes Soccer AND
  Argentina
• Convert to a Bloom Filter, but wildcards ()
  replace 0s
• Soccer, Argentina ? 111 01100 01001
• So any peer with both attributes must have (at
  least) the 2nd, 3rd and 5th bits set in their
  address
• The wildcards may match 1s or 0s depending on
  what other attributes the peer has
• 111 matches addresses 01101, 11101, 01111, 11111

17
Grouping.

• Need to find extents where the 2nd, 3rd and 5th
  bits are set
• Soccer, Argentina ? 1 1 1()
• ? 00, 01, 10, 11(extents 0, 1, 2, 3)
• 1 ? 01 and 11 (1, 3)
• 1 ? 10 and 11 (2, 3)
• 11 ? just 11 (3)

18
Grouping.

• ORs can be treated as a set of ANDs
• E.g. (Soccer OR Football) AND Argentina
• Equivalent to (Soccer AND Argentina) OR
  (Football AND Argentina)
• Soccer, Argentina ? 111 01100 01001
• Football, Argentina ? 1111 11010 01001
• All peers with address having 2nd, 3rd and 5th OR
  1st, 2nd, 4th and 5th bits set are part of this
  group

19
Grouping.

• Soccer, Argentina ? 1 1 1()
• Football, Argentina ? 11 1 1()
• ? 00, 01, 10, 11(extents 0, 1, 2, 3)
• 1 ? 01 and 11 (1, 3)
• 1 ? 10 and 11 (2, 3)
• 11 ? just 11 (3)

20
Routing.

• A peer wants to send a message to an implicit
  group
• Creates a message Got any Hand of God photos?
• Specifies an appropriate implicit group Soccer
  AND Argentina
• Chooses the best neighbour(s) to forward the
  message
• Knows extents yet to be visited (everything
  initially)
• Intersects these with extents matching group
  description
• Clusters whats left and sends a message towards
  each cluster

21
Routing.

• If many targets in same direction, only route one
  copy i.e. cluster based on their direction
• Message splits as it gets closer to clusters
  since relative angles increase
• Clustering threshold angle can be variable
• Guarantees delivery

22
Evaluation.

• Simulation
• OMNeT implementation simulating campus-
  andworld-scale physical networks
• Thousands of peers
• In progress
• Compare to alternative models
• IP multicast flooding (optimised physical
  routing, but all peers receive all messages)
• Centralised server (unfair to some peers/links
  but only member peers receive messages)

23
Evaluation.

• Metrics
• Normalised overall network traffic for messaging
• Peer fairness (variance of computation and
  storage)
• Network link fairness (variance of link stress)
• Expected results
• Flood should have good peer and link fairness,
  poor total traffic for small implicit groups
• Centralised should have poor peer and link
  fairness, good total traffic for all groups
• My approach should have good peer and link
  fairness, and good total traffic for small
  groups, poor for large

24
Evaluation.

• Evaluation of basic features
• Peer storage fairness
• Average cost of unicast routing between two
  random addresses

• Peer fairness

Unicast ROUTE cost
25
Questions?
26
Ancillary slides.
27
Related work.

• Explicit group systems
• IP multicast, Usenet (consumers explicit join
  channels)
• Email (publisher lists recipients by name)
• SCRIBE (on Pastry), CAN Multicast, Bayeux (on
  Tapestry)
• Implicit group systems
• Khambatti et al interest-based communities (but
  dont support arbitrary cross-cutting groups)
• Interest management (virtual environment updates)
• Content-based publish/subscribe (but different
  semantics)

28
Content-based publish/subscribe.

• Conceptually similar messages are delivered to
  implicit groups based on a match at time of
  publication
• Pub/sub consumers select the type of message
  they receive. Implicit group messaging
  publishers select type of consumer of message
• Converse semantics lead to differing
  expressiveness
• Pub/sub good for consumers who need to be
  notified of specific types of events from any
  publisher e.g. GUI components
• Implicit group messaging good for publishers who
  need to reach specific types of consumer e.g.
  distributed search engines

29
Future work.

• Very important to get physical network
  simulations running
• Testing with various attribute distributions,
  higher dimensional surfaces
• Random shortcuts through the surface to reduce
  routing cost (can be inserted when peers JOIN)
• Prefixing addresses with bits that place peers on
  surface with some approximation of underlying
  network may improve physical network usage

30
Attribute distribution.
Peers with popular attributes
Soccer, Argentina, Sport
Soccer, Argentina, Beer
Rugby, Australia, Sport
Peers with unpopular attributes
Football, Argentina

• Uniform attribute distribution

Zipf attribute distribution
31
Research plan.

• Technical Report awaiting Smart Internet
  Technology CRC approval
• Short Letter expressing basic concepts in next
  week
• Journal paper with network results by end of year
• Conference paper with future work early next year
• Complete around July

32
P2P networks.

• Messaging in P2P networks is often many-to-many
• E.g. any peer can initiate a multicast query to
  search for files or services
• Typically handled by flooding (Gnutella),
  superpeer registries (KaZaA), plus many other
  shortcuts.
• Some structured networks have multicast
  capabilities
• Peers can subscribe to multicast channels and
  receive all messages sent to that channel
• Need messaging between peers for
• Storing/retrieving data or files
• Searching for particular data
• Searching for particular kinds of peers

33
P2P networks.

• P2P needs multicast (for searches, requests,
  events)
• Allows a peer to send a message to a group of
  recipients
• Often will know names of recipients, e.g. when
  some peers have explicitly requested notification
  of an event
• However, there are times when it wont, e.g.
  searching for peers matching some criteria
• Often just flood the network, but may be more
  targeted
• Difference is the way multicast groups are
  defined explicitly or implicitly

34
Implicit group messaging.

• In an ideal system
• All implicit group members should receive
  messages
• Non-members shouldnt receive them
• Dynamic membership should be supported
• Minimal total network load
• Fairness across peers/network links
