Title: Specifications of our

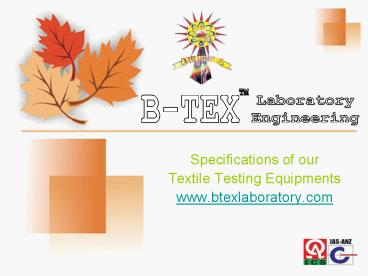

1
TM
Laboratory Engineering
B-TEX
  • Specifications of our
  • Textile Testing Equipments
  • www.btexlaboratory.com

2
  • Tension Meter To Check the online tension during
    passage of yarn.
  • 0.1gm Accuracy, Maximum 300gm.

3
  • COMB SORTER
  • SPECIFICATIONS
  • Acrylic Transparent sheet 6 X 8 X
    2 peaces, 3 X 8 X 2 Pcs.
  • Fiber Mounting Templates 6 X 8 X 2
    peaces, 3 X 8 X 2 Pcs.
  • Net Weight of the Unit 3.680 Kg.
  • Overall Dimensions of the Unit 125(W) X
    220(L) X 110(H)

4
  • Handy Ends counting Glass (8x).
  • To determine ends and picks in 1 cm.

5
  • Handy Microscope (40x with scale)
  • Closer view of yarn or fabric.

6
Digital Microscope
5x,10x,20x,40x 100x lenses monocular
projection microscope with fibre cross section
kit, high resolution CCD camera and imaging
software with measurement facilities. Scope of
use cross section of fibre or yarn, analysis of
any fibre, yarn and fabric.
7

Twist Tester (Manual) To check the Twist Per
Meter of the yarn. Test length 50 to 250
mm Counter Five digit
revolution counters. Overall Dimension of the
units 630mm (L), 120mm (W), 350mm (H). Weight
of Machine 6.560 Kg. BS 9461952
8
Twist Tester (Semi Automatic)
To check the twist of yarn. Test length 50 mm,
100 mm, 150 mm, 200 mm.
9
Twist Tester
(Auto) To check the Twist Per Meter of the
yarn. Test length 250 mm Counter
Four digit revolution counters. Overall Dimension
of the units 620mm (L), 80mm (W), 184mm
(H). Weight of Machine 6.000 Kg. BS 9461952
10
Twist Tester
(Micro) To check the Twist Per Meter of the
yarn. Test length 250 mm Counter
Four digit revolution counters. Overall Dimension
of the units 970mm (L), 125mm (W), 185mm
(H) Weight of Machine 7.700 Kg. BS 9461952
11
Wrap Reel
(Manual) To Prepare Lea of Yarn to check Denier,
etc. Swift Perimeter 1 Meter Number of
leas made at a time 5 Spread of each lea
20 mm Counter (Five Digits)
Manual Overall Dimensions of the Unit
600mm (L),450mm(W),420mm(H) Net Weight of the
Unit 18.00 Kg. Overall Dime. Cone Unit
452mm (L),349mm(W),669mm (H) Net Weight of
the Cone Unit 4.600 Kg. Free Pocket
weighing scale with Wrap reel.
12
20. Wrap Reel (Semi Automatic)
As per standards BS 24711978 (1991) Specificatio
n Swift Perimeter 1 Meter (optional) or 1.5
yards Number of leas made at a time 3 Spread of
each lea 20 mm Overall Dimensions of the main
Unit 450mm (L), 260mm (W), 360mm (H). Net
Weight of the main Unit 3.000 Kg. Overall
Dimensions of the cone Unit 280mm x 260mm x
500mm Net Weight of the cone Unit 1.800 Kgs
(approx). Controls MAIN, ZERO/RESET.
13

Beeseley Balance To check Count or Denier of the
short samples. Sizing Template 01
No. Sizing Template Counts System 05
System Overall Dimension of the Unit 545 (L) X
128 (W) X 198(H)
14
Yarn
Evenness Tester To check the evenness and
appearance of the yarn. Over all Dimension of the
Unit 61 (W) cm x 35 (D) cm x 27.5 (H) cm. Size
of Tapered Board 28.5cmx18cm, Taper Angle 2?
Size of Rectangular Board 28.5cm x 18 cm
Standard Yarn Spacing 20, 22, 26, 32, 38, 48
WRAPS per INCH Net Weight of the Unit 21 kg.
15
Crimp
Rigidity Tester Swift Perimeter 1
Meter Number of leas made at a time
1 Counter (Five Digits) Manual Overall
Dimensions of the Unit 600mm (L),450mm
(W),420mm (H) Net Weight of the Unit
17.960 Kg. Overall Dimensions of the Cone Unit
450mm (L),350mm (W),600mm (H). Net Weight of the
Cone Unit 7.5 Kg. (16.5 lbs)
16
Mechanical Fibrometer unit to perform tensile
test on Threads
Detailed Product Description It can be applied
in various testing purposes load / elongation
test / fracture test.T-screw transfer, manual
operation, simple, stability, vertical and
horizontal. Dimension LWH(mm)160240460Capaci
ty 500N Stroke 150mm Adapt with SN, SH series
force gauge, clamps and digital scale.
17
Universal Tensile
Testing Machine To check the tensile properties
of single yarn, lea as well as fabric. Over all
Dimensions of the Unit 43cm(L)x30(W)cmx135cm(H)
Force rating
200kg. Force resolution 20gm Maximum
crosshead stroke 750mm Approx. Crosshead
displacement measurement Resolution
0.1mm. Crosshead speed 20 to 400 mm/min or
fixed as per users requirement. Power Supply
230 V AC, 50Hz,Single Phase.
18
Single
Yarn Crimp Tester Over all Dimension of the
Unit 76(L)cmx30(W)cmx8cm(H) Weight of unit
800gms.
19
Package / Shore
Hardness Tester Range 0-1000
gm.. Instruments weight 200 gm.
20
Package / Shore Hardness Tester
SPECIFICATIONS Product info digital durometer
for shore hardness testing pocket size model with
integrated probe Parameters displayed hardness
result, average value, max. value Measurement
range0-100HA(HD), Measurement deviationlt1H Reso
lution 0.1, Auto switch off, With RS232C
interface Operating conditions 0? to 40?, Power
supply 4x1.5V AAA (UM-4) battery Battery
indicator low battery indicator Dimensions
162x65x38mm, Weight (not including
probe)173g Standards DIN53505, ASTMD2240,
ISO7619, JISK7215
21
18. HTHP Beaker
Dyeing Machine (S.S.) Capacity As per
requirements Capacity of Beaker 250 ml x 12
Beakers Carriage Rotation At 22 rpm. ( ? 2
rpm.) Maximum operating Temperature
140ºC. Maximum rate of heating 3.50C/Min.Controlle
d through temperature controllerhaving
auto/manual operation. Heater rating 2
KW Medium used for Heating Glycerine Electrical
Supply 3 KW at 230 Volts AC, 1 Phase Geared
Motor Reversible synchronised geared
motor. Overall dimensions of the Unit 700 mm
(W) x 470 mm (H) x 370 mm (D) (Regular size) Net
Weight of the Unit 50 Kgs. (Approx regular
size) Application Multiutility facility for
any kind of yarn and fabric dyeing.
22

Open Bath / Water Bath
Capacity Max. 12 Beakers
Capacity of Beaker 250 ml.
Temperature
Maximum operating Temperature 100º
Maximum rate of heating 3.5ºC/Min.
Heater rating 1 KW
Medium used for Heating Water
Electrical Supply 1 Phase Overall
dimensions of the Unit 24(W) x 16(D) x
12mm(H) Net Weight of the Unit
48 Kgs. with 12 Beakers
23
Digital Washing Machine
SPECIFICATIONS Inner dimensions of the Main
Bath 450 X 410 X 295 mm Capacity (in litres) of
Main Bath 29 Litres (Approx.) Number of
Beakers (Test Vessels) 08 Nos.Leak-proof
Beakers with Gaskets Standard Seal for
Beakers 08 Nos. Special Neoprene Gaskets Volume
of each Beakers 55050 ml. Distance from
Shaft 4510 mm Speed of Rotation 402
rpm Temperature Controller DIGITAL Temperature
Regulation PT-100 with 2.0C (As Per
I.S.O.) Timer (Digital) 0-99
Minutes Motor Single Phase, Geared Motor0
230 Volts AC, 50 Hz. Overall Dimensions of the
unit (without S. S. Stand) 710 x 570 x 785
mm Overall Dimensions of the unit (With S. S.
Stand) 720 x 590 x 1140 mm Net Weight of
the Unit (Without S. S. Stand) 63.5 Kg Net
Weight of the Unit (With S. S. Stand) 81.5
Kg. As per standards ISO 105, BS 10061990,
AATCC 61 (TEST 1 A ONLY),BS EN 20105,MARKS
SPENCER C4, C5 and ,37
24

Color Matching Cabinet Overall Dimen. of the
Instru. 710?10 (L) x 414?10 (W) x 628?10(H)mm
Overall Dimen. of the Viewing Cavity
685?10(L)x408?10(W)x380?10(H) Net Weight of the
Instrument 25.480 Kg. LIGHT SOURCES Art.
Daylight Fluorescent Lamps (D-65) 01 Nos. (18
W) Tungsten Filament Lamps (Inc A Lamps) 04
Nos. (40 W) Cool White Fluorescent Lamp (CWF)
01 No. (18 W) Triphosphor Fluorescent Lamp
(TL-84) 01 No. (18 W) Ultra-Violet Black
Lamp 01 No. (18 W) Warm White
01 No. (18 W) ISO 3664,,BS 950,ASTM D
1729 DIN 6173
25
GSM Cutter The unit is recommended for yield
testing i.e. the determination of weight per unit
area. The sample cutter cuts out rapidly and
accurately circular specimen of 100 Cm2, which
is exactly 1 / 100th of a square meter. The
result is grams, multiplied by 100, gives the
GSM (Grams per square meter) DIRECTLY. Free
Pocket weighing scale with G.S.M. cutter.
Grammes per Square Meter Specimen Weight in
Grams x100
26

Stiffness Tester Angle of inclination of
intersecting plane to horizontal 41.50 Load on
test specimen 10 2 gm / cm length Over All
Dimensions of the Instrument 271(W)x148(D)x200(H
) Net Weight of Instrument 4.500 Kgs.
27
Martindale Abrasion cum Pilling Tester
28
Digital Pilling Tester
SPECIFICATIONS Size of Wooden Boxes (Inside)
235 x 235 x 235 mm Thickness of Cork Lining
3.2 mm (As per standards) Speed of Rotation
of Boxes 60 r.p.m. Size of Test Specimen
12.5 ?12.5 cm² Size of Rubber Tubes
? 31.5mm (OD) x ? 25.1mm(ID)x140mm(L) Motor
1/8
H.P. Single Phase geared motor 220V
AC Counter 5 DIGITS DIGITAL Pre-Set type
counter Overall Dimensions of the Unit 813 (W) x
482 (D) x 508 mm (H) 32 (W) x 19 (D) x
20 Inch (H) Net weight 35 kg (77 lbs) As per
standards BS 5811, IS 10971, IWS 152, MS P 18
29

Crockmeter To determine the colour fastness of
textiles to dry /wet rubbing Specification Diamete
r of the Rubbing Finger 16 mm Force on the
Finger 9 N Size of Crocking Cloth (5 x 5)
Cms Length of the Traverse 105 5 mm
Counter (Re-settable) 4-Digit Counter Size of
Test Specimen 25 x 5 Cm Overall Dimension of
the Unit 600 (W) x 190 (D) x 200 (H) mm Net
Weight of the Unit 4 Kg. (9 lbs) Construction
Cold-rolled steel
30
  • Sublimation Fastness Tester
  • To determine sublimation of dye due to
    temperature.

31

Light Fastness Tester Light Source
500W, MBTL Fading Lamp(Mercury Blended
Tungsten Lamp) Test Chamber Temperature
Ambient to 50ºC Temperature Range Control
By Water Circulation in Type A
Rectangular Cells. Humidity Control
Inserting Saturated Solution in
the type AC Cells. A Rectangular Cells
12 Nos. C Cylindrical Cells
50 Nos. Space per Type
110 x 50 mm
A Rectangular Cells Specimen size100x50x15
mm Working Life of Lamp
2000 Hours Power
220 Volts, single Phase, 50
HZ,A.C. Supply. Power Consumption
Maximum 1 KW. Water Use
of Distilled Water only in the Water Circulation
Unit. Dimension of the Main Unit
400 mm(W) x 500 mm(D) x 190 mm(H) Weight of
water circulation unit 6.2
kg. Recommended Ambient 200-240C
Temperature (Operating) Conditions

50-65 Relative Humidity
32

Perspirometer Frame Construction Stainless
steel Load on the Test Specimen 5 kg. Size of
Test Specimen 100 mm x 40 mm Size of Acrylic
Separator Plates 115 mm x 60 mm Number of
Separator Plates 210Nos. Dimensions of the
Unit 225 mm(L)x72 mm(W)x182 mm(H) Net weight of
the Unit 8.3 kg.
33

Fabric Extensioner Over all Dimensions of the
Unit 61cmx10cmx12cm(H) Weight of
unit 20/500Kg.
34
Fabric thickness
Gauge Specifications Range of measurement 0-10
mm. Least count of dial Gauge 0.01 mm. Diameter
of anvil 60 mm. Diameter of pressure foot
(Interchangeable)10mm, 25mm. Load on the
pressure foot 78.5 g (100 gm/sq.cm.) Throat
depth 22mm Net weight of the Unit 340 gms
35

Shrinkage Template It consists of a fine
calibrated Marking Template which is used to
mark Fabric with 14 inches bench marks for
accurately determining Change in
fabrics/garments. After the fabrics/garment is
laundered/dry cleaned/washed Processed, the
dimensional change can be read directly and
accurately In percent change with the calibrated
shrinkage scale/rule.
36
Water
Repellency Tester Over all Dimensions of the
Unit 25cmx30cmx55cm(H) This method is
aplicable to all fabrics which may or may not
have been given a water repellent finish or
coating. It is not intended for use in predicting
rain penetration resistance of fabrics, since it
does not measure penetration of water through the
fabric. As per standards AATCC 22,BS 3702, ISO
4920
37
  • Tearing Strength Tester
  • Capacity 1600 Gms(By Brass pendulum only)
  • 3200 Gms(By adding Augmenting weights
    at the back)
  • 6400 Gms (By adding Augmenting weights
    at the front)
  • Clamping surface of each Clamp 35.5 mm
    length x 15.5 mm width
  • Distance between clamps 2.50.25mm
  • Tearing Distance 43
  • Slit Size 20 mm
  • Scale reading 0 to 100 of range
  • Calibration check weight At 1600 Gms
    ,at 3200 Gms.
  • At 6400 Gms.
  • Overall Dimensions of Unit 470(W)x
    300(D)x410(H) mm.
  • 18.5 (W)x12 (D)x16(H) Inch.
  • Net wt of the Unit (With check
  • Wt-1600, 32006400 Gms) 29.5Kg.(64.9lbs)
  • As per standards BS 4153, ASTM D1424, DIN
    53862,M S 29

38
Crease Recovery Tester
SPECIFICATIONS Size of the Test Specimen 40mm
x 15mm. Creasing Load 1 Kg. (Stainless
Steel) Angle Measurement On an Engraved
Circular Scale graduated in 1 deg. Scale
Measurement 0-180 Degrees Material Used All
Stainless Steel (except base) Size of the
Tester 9 Kg As per standards ISO 2313,BS
EN 22313,AATCC 66,,ASTM D 1295,IS 4681
39
Densimeter To determine E.P.I. and P.P.I. of
plain weave fabric.
40
Sequence Checking
Machine A handy instrument used to check the S
and Z sequence in the fabric which has battery
back up so that we can check the sequence on
running loom. Over all Dimension of the
Unit 36cmx26cmx15cm(H) Weight of unit 850Gms.
41

Oven(S.S.) Used for heating and
undertaking other oven dry tests in the
laboratory.Temp range ambient to 250C. Over all
Dimension of the Unit 45cm(L)x40(W)cmx62(H)cm
42
  • Lab Incubator
  • Temperature ambient minimum 2º c.

43

ZigZag Cutter Used to cut the samples in
zig-zag style of required size.
Size of cutting pad 31 x 28.
Size of blade
50 c.m. Long. Machine
dimensions 31 (d)x 28(w) x 54 (h).
Machine weight 28/500
Kg.
44
Fabric Inspection Machine
SPECIFICATIONS Power requirements 230 V
AC, 50 Hz, 0.75 KW. Power readout Digital
display with meter out. Machine
dimensions 90(w) x 60 (d) x 80 (h) View
Area 36 x 72. Machine weight
260 Kg.

45
Digital weighing scale Capacity 210 gms Accuracy
0.0001gm

46
  • Digital weighing scale
  • Capacity 10 gms
  • Accuracy 0.001gm

47
Pocket
Weighing Scale An economical balance to weigh the
samples for checking the GSM of the fabrics. To
be used with GSM cutter and also weigh the yarn
for checking denier. Capacity 100 gms Accuracy
0.01gm
48
Yarn Speed Length Meter
The Length Meter combines the functions of three
separate instruments in one, easy-to-use device.
It accurately measures the speed and length of
yarns, wires and other filaments using a unique
"wrapper" roller. This precision roller directs
the filament onto the low-inertia, U-grooved
measuring wheel to maximize contact and eliminate
filament slip and breakage. The Length Meter
can also be used as either a contact or
non-contact tachometer to measure rotational
speeds of shafts, motors, pulleys, etc. or linear
speeds of moving surfaces such as conveyor belts,
webs of fabric, etc.
49
Stroboscope
50-12,000 Flashes per minute. AC 220 V Supply
50
Stroboscope
50-12,000 Flashes per minute. Cable free with
battery back up facilities.
51
Moisture Meter
Moisture content 0-50, Temperature  10-60 C.
52
Sound Level Meter
30130dB
53
Lux Meter
0-50000 LUX 0-5000 FC
54
Tachometer
Rotative velocity laser 2.5-99999 r/min, Contact
0.5-1999r/min
55
Air Permeability Tester
  • THE Air Permeability Tester is a unique,
    instrument for determination of the air
    permeability (or of the pressure drop at a
    selectable air velocity) and, with some
    restrictions, of the thickness of fabrics,
    Nonwoven, felts and films. The main application
    is paper machine clothing.

56
Water Permeability
  • Porosity and water permeability are two distinct
    terms that describe different characteristics of
    vascular prostheses. The porosity is a measure of
    the void fraction within the prosthesis wall and
    is believed to give a rough prediction of the
    capacity of the graft to anchor newly formed
    surrounding tissue after implantation, whereas
    the water permeability indicates the rate at
    which water can flow through the prosthesis wall
    and, when measured under physiological pressure
    conditions, provides the surgeon with information
    about the need for preclotting prior to
    implantation. The literature has not always
    clearly distinguished between these two terms,
    and some authors in fact have suggested that they
    both refer to the same property of a prosthesis.
    In an attempt to clarify the issue, porosity and
    water permeability measurements were made on 34
    commercial vascular prostheses having different
    textile constructions. Linear regression analysis
    demonstrated that these two characteristics are
    only weakly related (r 0.59). It is therefore
    recommended that the current draft standards for
    such devices reference both properties porosity
    and water permeability.

57
Photos not available
  • Fibre Wall Chart Shows the characteristic
    properties of all types of fibres.
  • Fire Retardancy Tester To check the flame
    resistance of the fabric.
  • Air Permeability Tester To determine the air
    permeability of the fabric.
  • Flexing Tester To determine the flexing of the
    fabric.
  • Bursting Strength Tester To check the bursting
    strength of fabrics.

58
  • All Standards and standards accessories
    available.
  • AATCC
  • ASTM
  • BSEN
  • ISO
  • BIS
  • MS

59
NOTE
  • Shown all images are just for your knowledge and
    the final product design can be change.
  • All the specifications are given to you on the
    bases of general systems and may be changed
    during the process of supply time as per newly
    updated parts inclusions.
  • We will send you the images of newly colored
    instruments pictures through the email and you
    can give suggestions for the color selection and
    the way of design will be upgrade without
    changing international standards requirements.
Write a Comment
User Comments (0)
About PowerShow.com
