Low Back Injuries

1

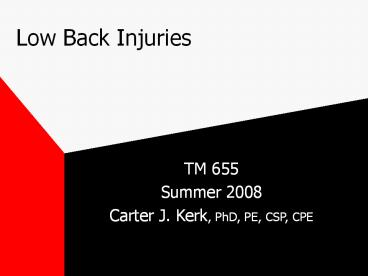

Low Back Injuries

• TM 655
• Summer 2008
• Carter J. Kerk, PhD, PE, CSP, CPE

2
Outline

• Concepts
• A Systems Approach
• Risk Factor Model
• ID, Evaluation, Control
• Identification Checklists
• Evaluation
• Force
• Posture
• Repetition

3
Stover Snook

• At any time, 15 to 20 of adults, evenly split
  between men and women, experience low back
  symptoms.

4
Stover Snook

• 35 of adults say theyve had low back pain in
  the past month, 50 in the last year.

5
Stover Snook

• About two-thirds of all back pain develops
  gradually without any trauma or precipitating
  event.

6
US Bureau of Labor Statistics

• For employees who miss work time due to back
  problems, the median time away from the job is
  between 6 and 7 days.

7
National Research Council

• In the US, employers in private industry report
  around 7 million cases of work-related
  musculoskeletal injuries each year, with 25 of
  these leading to lost working days and restricted
  activities. It is estimated that 5 to 6 million
  of these cases are work-related back pain leading
  to 100 million working days lost.

8
Risk Factor Model for Potential Development of
Cumulative Trauma Disorders,Including Low Back
Pain
Lack of Rest
Work/Rest Ratio
Shift Length
Environment
Sustained
Repetition
Occupational
Vibration
Non-Occupational
Temperature
Posture
Physical Temporal Risk Factors
Force
Personal
Psychosocial
Compounding Risk Factors
9

Attacking Hazards

1. Identification
2. Evaluation
3. Control

10
Control of Hazards

1. Engineering Controls
2. Administrative Controls
3. Personal Protective Equipment

11
Identification

• Body Part Discomfort Survey
• Quick Exposure Checklist (QEC)
• Pareto Analysis

12
Body Part Discomfort Survey

• Ask employee to shade in areas of discomfort
• Rate each shaded area on a scale

13
Quick Exposure Checklist (QEC)

• Quickly assess the exposure to risks for
  work-related musculoskeletal disorders
• See http//www.geocities.com/qecuk

14
Quick Exposure Checklist (QEC)

• Steps
• Self-Training
• Observers Assessment Checklist
• Workers Assessment Checklist
• Calculation of Exposure Scores
• Consideration of Actions

15
Quick Exposure Checklist (QEC)

A1
A2
A3
16
Quick Exposure Checklist QEC

Observer Assessment
Worker Assessment
17
Quick Exposure Checklist QEC

E() X/Xmax x 100
QEC Score (E) ACTION
40 Acceptable
41 50 Investigate Further
51 70 Investigate further and change soon
gt70 Investigate and change immediately
18
Use of Checklists

• Preliminary screening
• Before and after analysis
• Relative comparison among tasks

19
Pareto Analysis

• The Powerful Few - Group A 10 of the tasks
  produce 70 of injuries focus on these
• The Insignificant Many - Group C 65 of tasks
  produce lt10 of injuries

20
Evaluation of Force

• Direct force measurement
• Force gauge, scale
• NIOSH Lifting Guide
• Psychophysical Tables

21
NIOSH Lifting Equation

• Recommended Weight Limit
• Load that nearly all healthy workers could
  perform over a substantial period of time without
  an increased risk of developing lifting-related
  low back pain
• RWL LC x HM x VM x DM x AM x FM x CM
• Lifting Index
• Estimate of physical stress
• LI Load Weight / RWL

22
NIOSH Lifting Equation

• RWL LC x HM x VM x DM x AM x FM x CM
• LC 51 lb 23 kg
• HM Horizontal Multiplier
• VM Vertical Multiplier
• DM Distance Multiplier
• AM Asymmetric Multiplier
• FM Frequency Multiplier
• CM Coupling Multiplier
• Each multiplier ranges from 0 to 1

23
NIOSH Lifting Equation
Determination of H and V

24
NIOSH Lifting Equation
Determination of Asymmetry (A)

25
NIOSH Lifting Equation

• Does Not Apply When Lifting or Lowering
• One hand
• Over 8 hours
• While seated or kneeling
• In a restricted work space
• Unstable objects
• While carrying, pushing, pulling
• Wheelbarrows, shovels
• High speed (gt30 inches / sec)
• Slippery floors

26
NIOSH Lifting Equation

27
NIOSH Lifting Equation

• Horizontal Multiplier
• Metric
• HM 25/H
• US Customary Units
• HM 10/H
• Or Use Table 1

28

29
Evaluation of Force

• Direct force measurement
• Force gauge, scale
• NIOSH Lifting Guide
• Psychophysical Tables

30
Psychophysical Tables

• How much should a worker be required to lift or
  lower or push or pull or carry?
• How much is too much?
• These tables are the culmination of 25 years of
  experiments at the Liberty Mutual Research Center

31
Psychophysical Table Lifting, Males

32
Psychophysical Table Pushing, Females, Initial
Force

33
Evaluation of Posture

• Photography / Videotaping
• RULA
• Rapid Upper Limb Assessment
• REBA
• Rapid Entire Body Assessment

34
Photography / Videotaping

• Capture and evaluate entire work cycles
• Freeze frame postures
• Measure body angles
• Protractor / Goniometer
• Combine with force measurement
• Combine with frequency evaluation

35
RULA

• Rapid Upper Limb Assessment
• Used to assess the posture, force, and movement
  associated with sedentary tasks
• Including computer workstation tasks,
  manufacturing and retail tasks where the worker
  is seated or standing without moving about

36
REBA

• Rapid Entire Body Assessment
• Whole body
• Posture is static or dynamic
• Frequent or infrequent load handling

37
REBA

• Steps
• Observe the task
• Select the postures for assessment
• Score the postures
• Process the scores
• Establish the REBA score
• Confirm action level and urgency

38
REBA

• Selecting postures for assessment
• Most frequently repeated postures
• Longest maintained postures
• Posture requiring greatest forces
• Posture known to cause discomfort
• Extreme, unstable, or awkward postures

39
REBA

40
REBA Trunk Scoring

41
REBA Neck Scoring

42
REBA Leg Scoring

43
REBA Scoring Group A

44
REBA Load / Force Score

45
REBA Action Levels

46
Evaluation of Repetition

• Tools Stopwatch, Videotape
• Methods Work Measurement Skills
• Calculate repetitions e.g., lifts per minute
• Document the work cycles

47
Biomechanics

• Advanced Technique
• Uses elements of analysis from
• Force and Posture
• Requires knowledge of
• Anatomy, Anthropometry, Statics, Dynamics

48
Gender and Posture Differences

• Strength testing shows there are significant
  differences in lifting capability due to gender
  and posture
• These concepts are critical in job analysis and
  job design

49
Squat Lift vs. Stoop Lift

• Normally a squat lift is recommended over a stoop
  lift - Lift with your legs, not your back

• But, if you cannot fit the load between your
  knees then a stoop lift becomes less stressful
  than a squat lift

50
Lifting Analysis

• This type of analysis helps to understand the
  strength required throughout the lift at the
  elbow, shoulder, and hip.
• The most stressful points can be identified.

51
Simple Forearm Model

• With a simple biomechanical model of the forearm,
  you can estimate the elbow flexion strength
  necessary to support a load at the hand.

• This information can be useful in evaluating
  stressful tasks or in designing new tasks.

52
Low Back Modeling

• There are also biomechanical models of the forces
  and moments in the low back.
• This simple 2D model includes compression and
  shear forces in the spine, as well as muscle
  forces and abdominal forces.
• This model helps to demonstrate the importance of
  minimizing the moment arm (or lever arm) from the
  low back to the hand grip. Keep the load close
  to the body!

53
Engineering Controls

• First, analyze the job
• Surveys, checklists, evaluation of risk factors
  (force, posture, repetition, etc.), pareto
  analysis
• Attack high-risk tasks first
• Look for low hanging fruit

54
Engineering Controls

• Most desirable approach
• Redesign or Modify
• Workstation
• Tools
• Work Methods
• Fit the worker

55
Engineering Controls

• Establishing optimal work methods
• Adjustable workstations
• Tilt bins or containers
• Tool balancers
• Conveyors, Turntables
• Jigs, Fixtures
• Rounded or padded edges on worksurfaces
• Mechanical assist devices
• Selection of ergonomic tools

56
Work Surfaces

• Adjustability
• Ease of Adjustability
• Avoid sharp edges
• Consider sit/stand options

57
Placement Storage of Materials

• Consider frequency and weight
• Store heaviest and most frequent at knuckle
  height, Power Zone
• Power Zone Knuckle to Elbow Height, Close to
  Body
• Store medium items from knee to shoulder
• Store only light items below knee or above
  shoulder

58
Work Station Accessories

• Arm rests
• Wrist rests
• Foot rails and foot rests
• Document holders

59
Engineering Controls
60
Engineering Controls
61
Controls

• Engineering Controls
• Administrative Controls
• Personal Protective Equipment

62
Administrative Controls

• Secondary to Engineering Controls
• Insure proper methods are used
• Effective maintenance housekeeping
• Proper use of tools equipment
• Employee conditioning
• New employee conditioning

63
(No Transcript)
64
Administrative Controls

• Limiting overtime on high risk jobs
• Ensuring adequate rest breaks
• Job rotation
• Job enlargement (cross-training, flexibility)
• Teaming
• Reduce production rates
• Last resort

65
Microbreaks

• What is a microbreak?
• Take them frequently

66
Standing Fatigue Interventions

• Proper footwear
• Shoe inserts
• Anti-fatigue mats
• Foot rails
• Promote good lower extremity circulation
• Yes, this affects low back pain!

67
Hazard Prevention Control

• Engineering Controls
• Administrative Controls
• Personal Protective Equipment

68
Personal Protective Equipment

• After engineering administrative controls are
  exhausted
• Gloves
• Finger cots
• Arm guards
• NOT PPE
• Braces, splints, back belts or lifting belts

69
Wrist Splints
70
Lifting

• Power Zone
• Squat lift generally better than stoop
• Bend with your knees, not your back
• Keep the load close
• Love Your Load
• Get a good hand hold
• Move slowly, no jerks allowed
• Know or test the load
• Label loads
• Avoid twists

71
More Lifting Tips

• Get help (from a person or an assist device)
• Eliminate lifts
• Reduce loads
• Store properly
• Get a strategic delivery
• Use proper technique on light loads
