ImageText Relations in Multimedia Systems

1

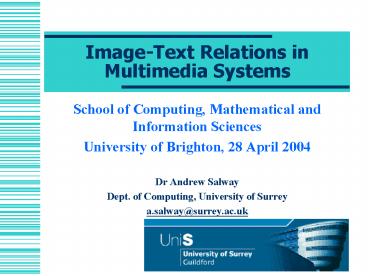

Image-Text Relations in Multimedia Systems

• School of Computing, Mathematical and Information
  Sciences
• University of Brighton, 28 April 2004
• Dr Andrew Salway
• Dept. of Computing, University of Surrey
• a.salway_at_surrey.ac.uk

2
BACKGROUND

• Image-text combinations widespread in human
  communication
• Spoken language and gesture
• Printed media
• Moving images and dialogue
• Digital multimedia ? new media

3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
BACKGROUND

• Multimedia systems process correlated media for
• Multimedia Information Retrieval and Fusion
• Summarization, Adaptation and Generation

7
Overview PART 1

• Processing experts descriptions and
  interpretations into machine-executable
  surrogates of visual information, e.g. to index
  image and video data

8
Background

• GOOGLE Image Search

9
Motivation

• One way to resolve the semantic gap comes from
  integrating other sources of information about
  the image Information about an image can come
  from a number of different sources the image
  content, labels attached to the image, images
  embedded in a text, and so on. We still have
  very primitive ways of integrating this
  information in order to optimize access to
  images
• Smeulders et al. Content-Based Image Retrieval
  at the End of the Early Years, IEEE Trans.
  Pattern Analysis and Machine Intelligence 22
  (12), 1349-1380.

10
Less Primitive Ways of Integrating Textual
Information About Images?

• Considering, for now, keyword-based
  representations of image content, perhaps two
  important questions are
• How do we pick good keywords from the mass of
  text apparently associated with an image?
• How do we associate keywords with specific image
  attributes, e.g. place of creation, literal
  content, abstract meanings specific regions of
  the image specific intervals of video data?

11
Less Primitive Ways of Integrating Textual
Information About Images?

• Consider specialist images and the texts produced
  by trained experts to be informative about them
• Extensive and diverse textual information
  produced by art experts, scene of crime officers
  and forensic scientists, film makers, audio
  describers, etc.
• Other text can be elicited from experts
  relatively cheaply (?), e.g. during creation of
  images

12
(No Transcript)
13

• I can see what appears to be a male laying in the
  prone position on the floor.
• He is wearing a maroon striped shirt with white
  collar and cuffs, blue jeans, and has a pair of
  left and right training shoes which have become
  slightly dis-extended from the foot.
• There appears to be a green tie down by his right
  hand and I can see a possible footwear impression
  in blood on his right hand.
• Surrounding the body there are droplets of blood,
  footwear impression in blood and several pieces
  of broken glass and bottles.

14
h

15

16
Issues

• Keywords contexts an indication of what image
  attribute (or region / interval) they relate to?
• Description and Interpretation are there
  systematically different languages used to
  describe and to interpret visual information?
• Experts consistency to what extent do trained
  experts analyse visual information in the same
  way?
• Image-Text Relations

17
Approach

• Analyse collateral text corpora, including extant
  texts and experts analyses elicited in
  controlled scenarios
• Develop systems that integrate image/video data
  and collateral text

18
Cues for content

• Which words in collateral text refer to image
  content?
• Art Corpus
• 804,939 words from Tate Gallery WWW-site
• Painting captions - 691,121 words
• Artist biographies - 113,818 words
• depict (295 occurrences in captions) and convey
  (119)
• this painting depicts a glass, two pears and a
  box
• this work depicts a group struggling in a wind
• this composition conveys the claustrophobia of
  the interior of an omnibus
• an expressive use of colour and shape to convey
  the subjects mood

19
Cues for content

• Which of Panofskys levels do words in a
  collateral text refer to?
• depict / convey cue references to
• pre-iconographical 56 / 0
• iconographical 41 / 9
• iconological 3 / 91
• Results from earlier 305,913 word corpus
  145 occurrences of depict, 47
  of convey

20
Cues for content

• Frequent words in left-hand contexts
• depict painting, portrait, work
• convey colours, elements, surfaces
• Frequent words in right-hand contexts
• depict movement, scene, landscape, Christ
• convey sense, essence, mood, spiritual

21
Cues to chart the history of art

• influence (403 occurrences) and inspire (442)
  about 80 passive
• his paintings of the Thames were influenced by
  Whistler
• where he was influenced by expressionism
• this picture was inspired by a performance of
  Shakespeares play Macbeth
• Severini was inspired by modern machinery

22
Cues to chart the history of art

• Classifying collocations of influence and inspire
• 49 PERSON influenced by PERSON
• 22 PERSON influenced by MOVEMENT
• 31 WORK inspired by PERSON / ENVIRONMENT / WORLD
  / WORK
• 16 PERSON inspired by PERSON

23
Eliciting spoken commentaries

• Five dance experts each asked to Describe then
  to Interpret five dance sequences as they
  watched them (20 minutes in total) ?
• 11,300 words of description
• 9,754 words of interpretation
• Appears to be systematic contrasts between
  description and interpretation

24
(No Transcript)
25
Descriptions

• Utterances
• Single words in rapid sequence to identify
  movements
• Spatio-temporal details and relationships between
  dancers
• Most frequent open-class words referred literally
  to dancers, their movements and space woman,
  arm, leg, turn, jump, spin, arabesque, pirouette,
  left, right
• Note that when allowed to stop and start the
  video, one expert spoke for about 30 minutes
  about two minutes of dance

26
Interpretations

• Most frequent open-class words referred
  non-literally to dancers, their movements and
  themes of the dance swan, prince, wing, flight,
  ethereality
• Longer utterances either referring to larger
  video intervals, or linking literal descriptions
  to interpreted meaning, conjoined by seems, as
  if, like, a sense of, suggest, appears to be
• The stretching of the neck, like a swan
• Aerial steps which could suggest flight
• Moving faster as if something is driving him

27

28
Descriptions shaded by dance
29
Descriptions shaded by expert
30
Audio Description

• Enhances the enjoyment of most kinds of films and
  television programs for visually impaired
  viewers,
• In between existing dialogue a describer gives
  important information about on-screen scenes and
  events, and about characters actions,
  appearance, gestures and expressions.
• Provided with some digital television broadcasts
  and with films in some cinemas and on VHS/DVD
  releases currently 500 films with British
  English audio description, and up to 10 of
  television broadcasts
• In effect, that part of the story told by the
  moving image is retold in words.

31
Audio Description Script

• 11.43 Hanna passes Jan some banknotes.
• 11.55 Laughing, Jan falls back into her seat as
  the jeep overtakes the line of the lorries.
• 12.01 An explosion on the road ahead.
• 12.08 The jeep has hit a mine.
• 12.09 Hanna jumps from the lorry.
• 12.20 Desperately she runs towards the mangled
  jeep.
• 12.27 Soldiers try to stop her.
• 12.31 She struggles with the soldier who grabs
  hold of her firmly.
• 12.35 He lifts her bodily from the ground,
  holding her tightly in his arms.

32
Computing Narrative analysis of emotion tokens

• METHOD
• Create list of Emotion Tokens for each of 22
  Emotion Types proposed by Ortony, Clore and
  Collins (1988)
• Plot the occurrence of these tokens in audio
  description scripts over time
• Analyse distribution of emotion tokens as a
  representation of film content

33
Plot of Emotion Tokens in Audio Description for
Captain Correllis Mandolin
34
Plot of Emotion Tokens in Audio Description for
Captain Correllis Mandolin 52 tokens of 8
emotion types 15-20 minutes Pelagrias betrothal
to Madras 20-30 minutes invasion of the
island 68-74 minutes Pelagria and Correllis
growing relationship 92-95 minutes German
soldiers disarm Italians
35
Plot of Emotion Tokens in Audio Description for
The Postman
36
Computing Narrative analysis of emotion tokens

• Results suggest that we can access some aspects
  of narrative structure in this way
• ? Video Retrieval by Story Similarity
• ? Video Summarisation by Dramatic Sequences
• ? Video Browsing by Cause-Effect Relationships

37
Overview PART 2

• II. Classifying image-text relations to process a
  greater diversity of image-text combinations

38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Classifying Image-Text Relations

• Interested in developing a computational
  understanding of how to read an image-text
  combination
• not simply a question of adding the result of
  text content analysis to the result of image
  content analysis!
• It seems that a key aspect of understanding an
  image-text combination is the way in which the
  image and the text relate to one another
• in terms of relative importance
• and, in terms of how they function to convey
  meaning.

43
Classifying Image-Text Relations

• Words like illustrate, describe and
  equivalent capture some of our intuitions about
  how images and texts relate.
• Maybe a computationally tractable framework for
  classifying image-text relations is required to
  facilitate better processing of image-text
  combinations in a wide range of applications.

44
Classifying Image-Text Relations

• With regards to an image and a text in
  combination
• How can we tell which is more important for
  successful communication?
• What correspondence is there between the
  information conveyed by one and by the other?
• What information, or other value, does one add to
  the other?
• If we understand the content of one, then what
  can we infer about the content of the other?
• What conventions are there for combining images
  and texts in particular genres of communication?

45
Proposed Classification Scheme

• In our classification of image-text relations we
  distinguish two kinds of relations that we take
  to be mutually independent.
• Status relations are to do with the relative
  importance of the text and the image, or the
  dependence of one on the other.
• Logico-semantic relations are to do with the
  functions that images and texts serve for one
  another.
• Different relations may hold between different
  parts of images and texts, i.e. between image
  regions and text fragments.
• Based on Barthes (1977) and Halliday (1994)

46
Status Relations

• The relation between an image and a text is equal
  when
• both the image and the text are required for
  successful communication, in which case they are
  equal-complementary OR
• both the image and the text can be understood
  individually, in which case they are
  equal-independent.
• The relation between an image and a text is
  unequal when either the image or the text can be
  understood individually - that which cannot be
  understood individually is subordinate to the
  other.

47
Logico-Semantic Relations

• A text elaborates the meaning of an image, and
  vice versa, by further specifying or describing
  it
• A text extends the meaning of an image, and vice
  versa, by adding new information
• A text enhances the meaning of an image, and vice
  versa, by qualifying it with reference to time,
  place and/or cause-effect

48
Automatic Classification?

• Features of interest to us include
• Page layout and formatting the relative size and
  position of the image and the text font type and
  size image border
• Lexical references in text for example, This
  picture shows See Figure 1 on the left
  is shown by
• Grammatical characteristics of the text tense
  past / present quantification single / many
  full sentences or short phrases
• Modality of images a scale from realistic to
  abstract, or from photographic to graphic a
  function of depth, colour saturation, colour
  differentiation, colour modulation,
  contextualisation, pictorial detail, illumination
  and degree of brightness may correlate with use
  of GIF / JPEG
• Framing of images for example, one centred
  subject, or no particular subject

49
Applying Image-Text Relations?

• Cross-modal Information Retrieval
• Hypermedia Systems
• Multimedia Generation

50
Closing Remarks

• NEXT STEPS
• Refine classification scheme, especially for
  image-text combinations with diagrams
• Build image-text corpora to train a
  classification system
• Evaluate image-text relations in multimedia
  applications

51
Acknowledgements

• This work has been carried out with
• Chris Frehen Tate analysis
• Mike Graham - TIWO
• Radan Martinec Image-Text Relations
• Elia Tomadaki - TIWO
• Yan Xu -TIWO
• Television in Words (TIWO) EPSRC GR/R67194/01

52
Publications

• Salway and Graham (2003), Extracting Information
  about Emotions in Films. Procs. 11th ACM
  Conference on Multimedia 2003, 4th-6th Nov. 2003,
  pp. 299-302. ISBN 1-58113-722-2.
• Salway, Graham, Tomadaki and Xu (2003), Linking
  Video and Text via Representations of Narrative',
  AAAI Spring Symposium on Intelligent Multimedia
  Knowledge Management, Palo Alto, 24-26 March
  2003.
• Salway and Tomadaki (2002), Temporal Information
  in Collateral Texts for Indexing Moving Images.
  Proceedings of LREC 2002 Workshop on Annotation
  Standards for Temporal Information in Natural
  Language, eds. A. Setzer and R. Gaizauskas, pp.
  36-43.
• Salway and Frehen (2002), Words for Pictures
  analysing a corpus of art texts. Procs. TKE
  2002 Terminology and Knowledge Engineering.
• Salway and Ahmad (1999), Multimedia Systems and
  Semiotics Collateral Texts for Video Annotation.
  Andrew Salway and Khurshid Ahmad. In IEE
  Colloquium Digest, Multimedia Databases and
  MPEG-7, 29 Jan. 1999, LondonIEE.
• Salway and Ahmad (1998), Talking Pictures
  Indexing and Representing Video with Collateral
  Texts . Andrew Salway and Khurshid Ahmad. 14th
  Twente Workshop on Language Technology - Language
  Technology for Multimedia Information Retrieval.

53
Image-Text Relations in Multimedia Systems

• School of Computing, Mathematical and Information
  Sciences
• University of Brighton, 28 April 2004
• Dr Andrew Salway
• Dept. of Computing, University of Surrey
• a.salway_at_surrey.ac.uk
